HD ISDB T TV Set Top Box Compatible HD TV Decoder Receiver HDMI CVBS Output
HD ISDB T TV Set Top Box Compatible HD TV Decoder Receiver HDMI CVBS Output
HD ISDB T TV Set Top Box Compatible HD TV Decoder Receiver HDMI CVBS Output
HD ISDB T TV Set Top Box Compatible HD TV Decoder Receiver HDMI CVBS Output
Specifications
Brand Name :
Colable
Model Number :
COL601M
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T (Wire Transfer), Western Union etc
Supply Ability :
10000sets per Month
Delivery Time :
2-5 working days for sample
Packaging Details :
Standard Export Carton with foam
Product Name :
HD ISDB-T Set Top Box
Input :
ISDB-T RF
Output :
HDMI, CVBS
Video Decoding :
MPEG-2. MPEG-4 AVC/ H.264
Audio Decoding :
MPEG-1 Layer 1/2, MPEG-2, MPEG-4 AAC, MP3
Resolution :
1080i/720p/576p/576i(PAL),1080p720p/480p/480i(NTSC)
Video Format :
PAL，NTSC，Auto
Bandwidth :
6 Mhz
Applications :
Digital Free System
Description

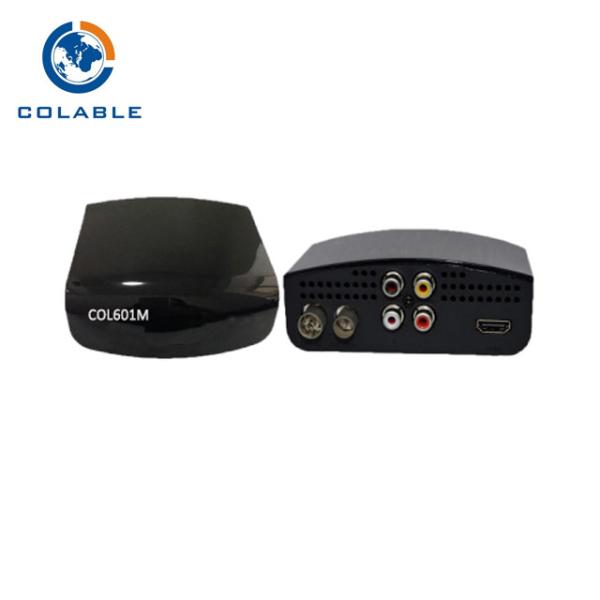

Model: COL601M HD TV Decoder Receiver

HD ISDB-T Set Top Box for South American Market

Feature

  • Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant
  • Compatible with 576i/576p/720p/1080i/1080p video formats
  • Auto and manually scan all available TV and radio channels
  • Aspect ratio 16:9 and 4:3, 1000 channels memory, parental control
  • HDMI, YPbPr, coaxial outputEPG (Electronic Program Guide) with now & next and 7 days events ready
  • Teletext/ Bit Map subtitle, compliant with ETS1
  • Supported 7-Day EPG function, VBI Teletext
  • Support 6MHz software setting Auto/Manual Program search, Multi-language
  • USB 2.0 for PVR, Software upgrade, Multimeida Playback
  • Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK;OFDM Reception Channel:: 13CH-62CH
  • Digital reception covers VHF & UHF band

Specification

Tuner(MXL) IF input frequency 7-68 Ch (470mHz~806mHz)
Bandwith 6MHz
Input level -90 ～ -5dBm
Input impedance 50 Ω
Channel Decoding Wave form COFDM
Demodulation QPSK,16QAM,64QAM, QPSK or DQPSK
FEC 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
Mode 2K, 4K, 8K
Guard 1/4, 1/8, 1/16, 1/32
Demultiplexer Standard ISO/IEC13818-1, MPEG-4HE AAC
Input Max. TS 23.420Mbps

Video Decoding

 Video resolution:1080i/720p/576p/576i(PAL),1080p720p/480p/480i(NTSC)
Standard ISO/IEC 13818-2, MPEG-2 MP@ML, H.264
Aspect ratio 4:3, 16:9
Video format PAL / NTSC/ AUTO
Audio Decoding Standard ISO/IEC 13818-3
Decoding MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
Processor and Memory CPU Mstar 7816
Frequency 216 MHz
DDR RAM 512MB
Flash Memory 32MB
Video de-emphasis CCIR REC.405-1, 1080i
AV Output Video bandwidth 5.5 MHz
Video output impedance 75 Ω
Video output level 1.0Vp-p
Audio output Coaxial, L/R, HDMI
Audio output frequency 20Hz ~ 20KHz
Audio output impedance Low
Audio output level: A 1.0Vrms ± 2dB into 10K
Hardware Interface Indicators Power, signal lock
IR Receive 38KHz
AV output YUV, HDMI, Composite Video
RF Input EC-type IEC169-2 Female
Loop Through Out IEC-type IEC169-24 Male
USB USB1.1- USB2.0
Power input Spec 90—260V AC 8W max

HD ISDB T TV Set Top Box Compatible HD TV Decoder Receiver HDMI CVBS Output



Digital IPTV, CATV+IPTV System

HD ISDB T TV Set Top Box Compatible HD TV Decoder Receiver HDMI CVBS Output


HD ISDB T TV Set Top Box Compatible HD TV Decoder Receiver HDMI CVBS Output




Certificates

HD ISDB T TV Set Top Box Compatible HD TV Decoder Receiver HDMI CVBS Output



Colable Electronics co.,ltd

Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

  • Our experience: Standing in digital system solution more than 10 years, with reliable Team.
  • Our products: FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
  • Payment: Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
  • Delivery Date: 2-5 working days
  • Our services: Life-long Technical support, remote assistance
  • Warranty: 1 year for headend & STB

Please feel free to ask if you have any questions. Welcome !!!
