8 Ch Free To Air DVB Decoder , Digital Receiver Decoder Tuner Dvb S2 / T2 / Atsc - T + ASI To IP + ASI
8 Ch Free To Air DVB Decoder , Digital Receiver Decoder Tuner Dvb S2 / T2 / Atsc - T + ASI To IP + ASI
8 Ch Free To Air DVB Decoder , Digital Receiver Decoder Tuner Dvb S2 / T2 / Atsc - T + ASI To IP + ASI
8 Ch Free To Air DVB Decoder , Digital Receiver Decoder Tuner Dvb S2 / T2 / Atsc - T + ASI To IP + ASI
Specifications
Brand Name :
Colable
Model Number :
COL5881C
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T(Wire Transfer), Western Union etc
Supply Ability :
500sets per Month
Delivery Time :
2-5 working days
Packaging Details :
Standard Export Carton with foam
Product Name :
DVB Decoder
Input :
8*Tuner + 1*ASI
Tuner Optional :
ATSC-T, T/T2, S/S2 optional
Output :
IP MPTS + 2*ASI
IP protocol :
UDP& RTP/ RTSP, unicast / multicast
Re-Multiplex :
Support
Management :
WEB-Based NMS
Applications :
DSTV, CATV, IPTV, OTT etc
Description

Free to Air DVB Decoder 8 Ch Tuner(dvb-s2/t2/atsc-t)+ ASI to IP+ASI Model: COL5822CN

Outline

COL5881C Tuner Multiplexer is the latest demodulation and multiplexing device for digital TV broadcasting head-end system with TS output through ASI and IP port. It can multiplex up to 8 channels Tuner and 1 ASI input to one MPTS. This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. Also the multiplexer can insert EPG (electronic program guide), CA (conditional access), data broadcasting into output TS. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.

Features

  • Fully complying with ISO13818 and EN300 468 standard
  • 8 DVB-S2/T2/ ATSC Tuner+1 ASI input ports
  • ASI and IP output
  • Integrated demodulating and multiplexing functions
  • Support accurate PCR adjusting
  • Support PID filtering, re-mapping
  • Support PSI/SI rebuilding and editing
  • Support MPTS over UDP, RTP/RTSP output as mirror of ASI output (RJ45)
  • Huge buffer memory for saving the overflowing code stream
  • Supporting to multiplex one program to all outputs
  • Alarming function
  • LCD/keyboard and Web-based NMS management

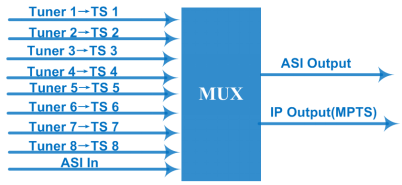

Principle Chart

8 Ch Free To Air DVB Decoder , Digital Receiver Decoder Tuner Dvb S2 / T2 / Atsc - T + ASI To IP + ASI

Specifications

Input interface 8 DVB-S2/T2/ ATSC tuners+1 ASI
Re-multiplex PID re-mapping
PCR accurate adjusting
Automatic generating PSI/SI table
Input Packet format 204/188 self-adaption
Output port ASI 2 * ASI output(Max180Mbps)
IP

MPTS over UDP, RTP/RTPS out as mirror of ASI output (RJ45)

Max 280Mbps
PID Output range 0x0000—0x1FFF
PID transparent Any PID transparent and mapping achievable
Amount of output PID per input 128
NMS port Ethernet port 10/100M
General Demission 482mm×300mm×44mm (WxLxH)
Weight 3.5kg
Temperature 0~45℃(operation), -20~80℃(storage)
Power supply AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz
Consumption 18W


Packing for Satellite Decoder


8 Ch Free To Air DVB Decoder , Digital Receiver Decoder Tuner Dvb S2 / T2 / Atsc - T + ASI To IP + ASI



Digital CATV & IPTV System


8 Ch Free To Air DVB Decoder , Digital Receiver Decoder Tuner Dvb S2 / T2 / Atsc - T + ASI To IP + ASI



Certificates

8 Ch Free To Air DVB Decoder , Digital Receiver Decoder Tuner Dvb S2 / T2 / Atsc - T + ASI To IP + ASI


Exhibition

8 Ch Free To Air DVB Decoder , Digital Receiver Decoder Tuner Dvb S2 / T2 / Atsc - T + ASI To IP + ASI

Colable Electronics co.,ltd

Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

  • Our experience: Standing in digital system solution more than 10 years, with reliable Team.
  • Our products: FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
  • Payment: Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
  • Delivery Date: 2-5 working days
  • Our services: Life-long Technical support, remote assistance
  • Warranty: 1 year for headend & STB

Please feel free to ask if you have any questions. Welcome !!!
