DSTV To DTT Tuner To RF Transmodulator FTA 16 CH DVB S To DVB T Transmodulator
DSTV To DTT Tuner To RF Transmodulator FTA 16 CH DVB S To DVB T Transmodulator
DSTV To DTT Tuner To RF Transmodulator FTA 16 CH DVB S To DVB T Transmodulator
DSTV To DTT Tuner To RF Transmodulator FTA 16 CH DVB S To DVB T Transmodulator
Specifications
Brand Name :
Colable
Model Number :
COL5481TT
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T(Wire Transfer), Western Union etc
Supply Ability :
500sets per Month
Delivery Time :
2-5 working days
Packaging Details :
Standard Export Carton with foam
Product name :
DVB-S to DVB-T Transmodulator
Input :
16*Tuner + 512*IP UDP+ 2*ASI
Tuner :
16*DVB-S2, 16*DVB-S
Output :
8*DVB-T + 8*IP MPTS
IP Protocol :
UDP/RTP(1000M/100M Unicast/Multicast)
RF Range :
50Mhz - 960Mhz
Management :
WEB NMS
Applications :
Digital TV Headend system
Description

FTA 16CH DVB-S to DVB-T Transmodulator DSTV to DTT Signal

Model: COL5481TT

Outline

COL5481TT is a high performance and cost-effective DVBS to DVB-T modulator. It has 16 DVB-S/S2 FTA tuner input, 8 groups multiplexing and 8 groups modulating, and supports maximum 512 IP input through GE1 and GE2 port and 8 IP (MPTS) output through GE1 port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with 2 ASI input ports.

COL5481TT is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation broadcasting system.

Key Features

  • 16 DVB-S/S2 FTA Tuner + 2 ASI input+512 IP (GE1 and GE2) input over UDP and RTP protocol
  • 8*DVB-T RF output
  • Excellent RF output performance index, MER≥40db
  • Support 8 groups multiplexing + 8 groups DVB-T modulating
  • Support accurate PCR adjusting
  • Support PSI/SI editing and inserting
  • Support Web management, Updates via web
  • Redundancy Power Supply (optional)

Specifications

Input 16 DVB-S/S2 FTA Tuner
512 IP (GE1 and GE2)input over UDP and RTP protocol
2 ASI input, BNC interface
Tuner Section DVB-S Input Frequency 950-2150MHz
Symbol rate 2-45Msps
Signal Strength -65~-25dBm
FEC Demodulation 1/2, 2/3, 3/4, 5/6, 7/8 QPSK
DVB-S2 Input Frequency 950-2150MHz
Symbol rate

QPSK 1~45Mbauds

8PSK 2~30Mbauds
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Demodulation Mode QPSK, 8PSK
Multiplexing Maximum PID Remapping 128per input channel
Function PID remapping (automatically or manually)
Accurate PCR adjusting
Generate PSI/SI table automatically
Modulation

Standard: EN300 744

FFT: 2K 8K

Bandwidth: 6M, 7M, 8M

Constellation: QPSK, 16QAM, 64QAM

Guard interval: 1/4, 1/8, 1/16, 1/32

FEC: 1/2, 2/3, 3/4, 5/6, 7/8
Stream output 8 IP(MPTS) output over UDP /RTP, 100M/1000M self-adaption
8 DVB-T RF output
Remote management Web NMS(10M/100M)
Language English and Chinese
Software Upgrading Web
General

Dimension

(W*D*H)

 482mm×300mm×44.5mm
Weight 3.7kg
Temperature 0~45℃(Operation) ; -20~80℃(Storage)
Power

AC 100V±10%, 50/60Hz;

AC 220V±10%, 50/60HZ
Consumption 25W

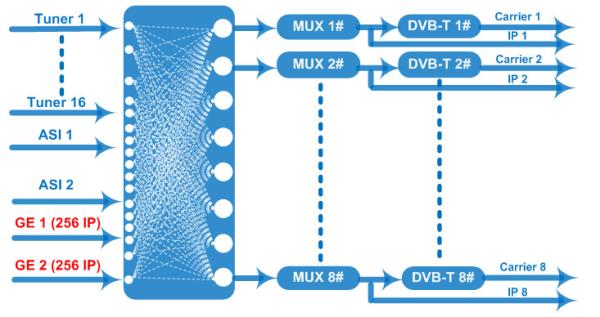

Working Principle

DSTV To DTT Tuner To RF Transmodulator FTA 16 CH DVB S To DVB T Transmodulator



Digital CATV & IPTV System

DSTV To DTT Tuner To RF Transmodulator FTA 16 CH DVB S To DVB T Transmodulator



Certificates

DSTV To DTT Tuner To RF Transmodulator FTA 16 CH DVB S To DVB T Transmodulator



Colable Electronics co.,ltd

Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

  • Our experience: Standing in digital system solution more than 10 years, with reliable Team.
  • Our products: FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
  • Payment: Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
  • Delivery Date: 2-5 working days
  • Our services: Life-long Technical support, remote assistance
  • Warranty: 1 year for headend & STB
