8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input
8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input
8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input
8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input
Specifications
Brand Name :
Colable
Model Number :
COL5608P
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union etc
Supply Ability :
500sets per Month
Delivery Time :
2-5 working days
Packaging Details :
Standard Export Carton with foam
Product Name :
IP to 8 DVB-T RF Carrier Modulator
Input :
512*2 IP input + 2*100M/1000M
Output :
8* DVB-T RF + 8*IP
IP Protocol :
UDP/ RTP/ RTSP, unicast / multicast
RF Range :
50-960 Mhz, 1Khz stepping
Constellation :
QPSK/16QAM/64QAM
Management :
WEB NMS Management
Application :
Digital TV Headend System
Description

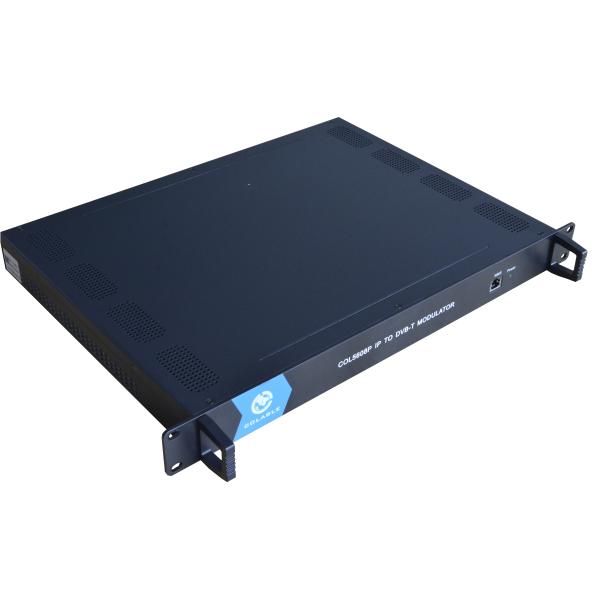

Digital DVB-T Modulator IP to 8 CH DVB-T RF Carrier Modulator Model: COL5608P

8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input

Outline

COL5608P IP to DVB-T converter modulator is an all-in-one device developed by COlABLE. It has 8 multiplexing channels and 8 DVB-T modulating channels, and supports maximum 1024 IP input through the GE port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.


Features

  • 2 GE input, SFP interface
  • Supports up to 1024 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3
  • Max 840Mbps for each input
  • Supports accurate PCR adjusting
  • Supports PID remapping and PSI/SI editing
  • Supports up to 180 PIDs remapping per channel
  • Support 8 multiplexed TS over UDP/RTP/RTSP output
  • 8 DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standaSupports RS (204,188) encoding
  • Support Web-based Network management



Inner Principle Chart

8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input



Carrier Setting Illustration

8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input


Specifications for Digital DVB-T Modulator

InputInput512×2 IP input, 2 100/1000M Ethernet Port (SFP)
Transport ProtocolTS over UDP/RTP/RTSP, unicast and multicast, IGMP V2/V3
Transmission RateMax 840Mbps for each input channel
MuxInput Channel1024
Output Channel8
Max PIDs180 per channel
FunctionsPID remapping(auto/manually optional)
PCR accurate adjusting
PSI/SI table automatically generating

Modulation
Parameters

Channel8
Modulation StandardETSI EN300 744
Constellation QPSK/16QAM/64QAM
Bandwidth6/7/8 MHz
Trans mode2K/4K/8K
FEC1/2, 2/3, 3/4, 5/6, 7/8
RF OutputInterface F typed output port for 8 non-adjacent carriers
RF Range50~960MHz, 1kHz stepping
Output Level -20~+10dbm (for all carriers), 0.5db stepping
MER≥ 40dB
ACL -55 dBc
TS output8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 100/1000M Ethernet Ports
SystemWeb-based Network management
GeneralDemission420mm×440mm×44.5mm (WxLxH)
Weight 3kg
Temperature 0~45℃(operation), -20~80℃(storage)
Power SupplyAC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
Consumption ≤20W




More details for IP to 8 CH DVB-T RF Carrier Modulator

8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input




Packing for Digital DVB-T Modulator 8 Carrier output


8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input



Digital CATV & IPTV System


8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input



Certificates

8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input



Exhibition

8 CH DVB T IP To RF Modulator 512 * 2 IP Input + 2 * 100M / 1000M Input

Colable Electronics co.,ltd

Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

  • Our experience: Standing in digital system solution more than 10 years, with reliable Team.
  • Our products: FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
  • Payment: Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
  • Delivery Date: 2-5 working days
  • Our services: Life-long Technical support, remote assistance
  • Warranty: 1 year for headend & STB

Please feel free to ask if you have any questions. Welcome !!!
