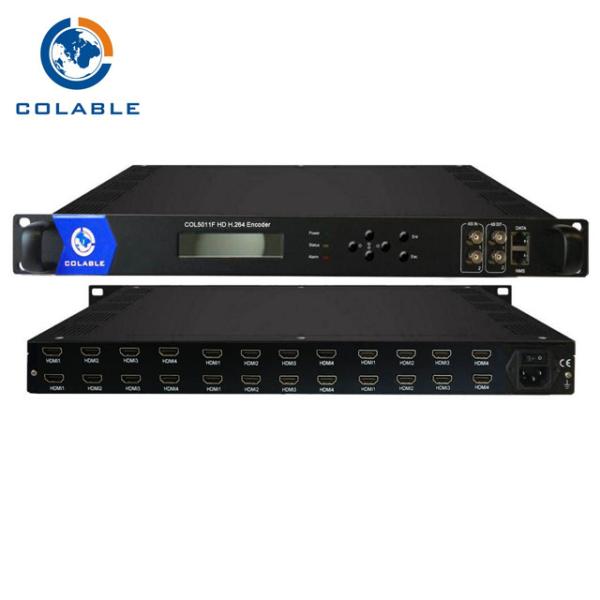

Digital Headend HD Video Encoder COL5011F Multi Input H 264 HDMI To IP Video Encoder
Digital Headend HD Video Encoder COL5011F Multi Input H 264 HDMI To IP Video Encoder
Specifications
Brand Name :
Colable
Model Number :
COL5011F
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union etc
Supply Ability :
500sets per Month
Delivery Time :
2-5 working days
Packaging Details :
Standard Export Carton with foam
Input :
8/12/16/24 HDMI + 2*ASI
Output :
8/12/16/24*SPTS & 4*MPTS + 2*ASI
IP Protocol :
UDP & RTP
Video Encoding :
MPEG-4 AVC/H.264
Audio Encoding :
MPEG1 Layer2
Resolution :
Input: max 1080P, Output: "P" output
Management :
Network WEB management
Applications :
Digital TV Headend, CATV, IPTV, DTT, DSTV etc
Description

COL5011F Multi Input H.264 HDMI to IP Video Encoder, DTV Headend

Outlines

COL5011F HD H.264 encoder is a professional high integration device which includes encoding, multiplexing.

It supports 8/12/16/24 HDMI input, 1000M IP output (MPTS and SPTS output). In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable

TV digital head-end, digital TV broadcasting etc.

Features

  • 8/12/16/24 HDMI input, MPEG-4 AVC/H.264 Video encoding
  • 8/12/16/24 HDMI inputs with 8/12/16/24 SPTS &1 MPTS output, IP output over UDP& RTP protocol
  • 2 ASI inputs
  • 2 ASI Independent output (optional) as copy of 1MPTS
  • Support “Null PKT Filter” function
  • Support PID Remapping/ PCR accurate adjusting
  • LCD, key function
  • Control via web management, and easy updates via web

Specifications

Input HDMI (8/12/16/24 HDMI)
2 ASI inputs
output 2 ASI output

IP output: 8/12/16/24 HDMI inputs with 8/12/16/24 SPTS and 4 MPTS output,

IP output over UDP and RTP protocol
video Encoding MPEG-4 AVC/H.264
Resolution

Input:1920*1080_60P, 1920*1080_60i,

1920*1080_50P, 1920*1080_50i,1280*720_60P,

1280*720_50P,720*576_50i,720*480_60i,

Output:1920*1080_30P,1920*1080_25P,1280*720_30P,

1280*720_25P,720*576_25P,720*480_30P
Bit-rate 1Mbps~13Mbps(each channel)
Rate Control CBR
Audio Encoding MPEG1 Layer2
Sampling rate 44.1KHz and 48Khz
Bit-rate 64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
Resolution 24-bit
Audio Gain 0-255 Adjustable
Multiplexing Maximum PID Remapping 180 output pids per channel
Function PID remapping ( automatically or manually)
Accurate PCR adjusting
System function Network management(WEB)
Chinese and English language
Ethernet software upgrade
Miscellaneous Dimension (W*L*H) 550mm*5050mm*140mm
Weight 6kg
Environment 0~45℃(work)；-20~80℃(storage)
Power requirements AC100~240V,50/60Hz

Digital CATV & IPTV System

Digital Headend HD Video Encoder COL5011F Multi Input H 264 HDMI To IP Video Encoder

Certificates

Digital Headend HD Video Encoder COL5011F Multi Input H 264 HDMI To IP Video Encoder

Colable Electronics co.,ltd

Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

  • Our experience: Standing in digital system solution more than 10 years, with reliable Team.
  • Our products: FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
  • Payment: Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
  • Delivery Date: 2-5 working days
  • Our services: Life-long Technical support, remote assistance
  • Warranty: 1 year for headend & STB

Please feel free to ask if you have any questions. Welcome !!!
