HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H
HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H
HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H
HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H
HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H
HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H
HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H
HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H
Specifications
Brand Name :
Colable
Model Number :
COL5181H
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union etc
Supply Ability :
500sets per Month
Delivery Time :
2-5 working days
Packaging Details :
Standard Export Carton with foam
Product name :
Cable TV Digital HDMI to H.264 IP Encoder
Input :
8/12/16/20/24*HDMI
Output :
8/12/16/20/24*SPTS & 1*MPTS +1*ASI optional
IP Protocol :
UDP and RTP
Resolution :
Input: max 1080P, Output: "P" output
Vdieo Encoding :
MPEG-4 AVC/ H.264
Audio Encoding :
MPEG-1 Layer-2
Applications :
Digital TV Headend, CATV, IPTV, DTT, DSTV etc
Description

8ch 12ch 16ch 20ch 24ch HDMI to H.264 IP Encoder

IPTV Cable TV Digital Encoder Model : COL5181H

Outline

COL5181H HDMI to H.264 IP Encoder is a professional HD audio & video encoding and multiplexing device. It has 8 HDMI (12/16/20/24 HDMI optional) video input interfaces, supporting MPEG-4 video encoding and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 8(12/16/20/24 HDMI optional) channel HD audio & video; moreover, it has an IP output port can support 1MPTS and 8SPTS (12/16/20/24 SPTS) IP out. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.

Features

* 8/12/16/20//24× HDMI video inputs with 8/12/1620//24 SPTS and 1 MPTS output through Data 1 or Data 2
* Support MPEG4 AVC/H.264 video encoding format
* MPEG1 Layer II audio encoding format, support audio gain adjustment
* Support 1 ASI output (optional) as copy of MPTS
* Support IP output over UDP and RTP
* Support QR code, LOGO, OSD insertion
* Support "Null PKT Filter" function
* Support PID Remapping
* Support PCR accurate adjusting
* Support PSI/SI editing and inserting
* Control via web management, and easy updates via web
* Lowest cost per channel, breakthrough price

Principle Chart

HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H

Specifications for HDMI to H.264 IP Encoder

Input
16 HDMI inputs ( 8/12/20/24 HDMI input optional)
Video
Resolution
Input
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P,
720×576_50i,720×480_60i,
output
1920×1080_30P, 1920×1080_25P, 1280×720_30P,
1280×720_25P, 720×576_25P,720×480_30P,
Encoding
MPEG-4 AVC/H.264
Bit-rate
1Mbps~13Mbps each channel
Rate Control
CBR/VBR
GOP Structure
IP...P (P Frame adjustment, without B Frame )
Audio
Encoding
MPEG-1 Layer 2
Sampling rate
48KHz
Resolution
24-bit
Bit-rate
64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
Multiplexing
Maximum PID
Remapping
180 input per channel
Function
PID remapping ( automatically or manually)
Accurate PCR adjusting
Generate PSI/ SI table automatically
Stream output
8 SPTS (12/16/20/24 SPTS) IP or 1MPTS output over UDP/RTP,
1*1000 Base-T Ethernet interface
ASI output(optional) as copy of MPTS

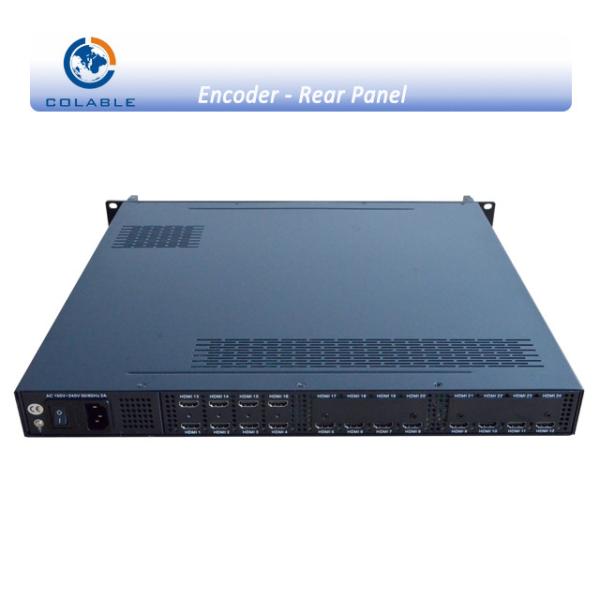

Details for Cable TV Digital Encoder

HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H



Digital CATV & IPTV System


HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H


More Digital Headend Devices


HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H


Certificates


HDMI To H 264 IP HD Video Encoder 8ch 12ch 16ch 20ch 24ch IPTV Cable TV Digital Encoder COL5181H


Colable Electronics co.,ltd
Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

  • Our experience: Standing in digital system solution more than 10 years, with reliable Team.
  • Our products: FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
  • Payment: Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
  • Delivery Date: 2-5 working days
  • Our services: Life-long Technical support, remote assistance
  • Warranty: 1 year for headend & STB




Please feel free to ask if you have any questions. Welcome !!!
