IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771
IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771
IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771
IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771
IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771
IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771
IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771
IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771
Specifications
Brand Name :
Colable
Model Number :
COL5771
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T(Wire Transfer), Western Union etc
Supply Ability :
500sets per Month
Delivery Time :
2-5 working days
Packaging Details :
Standard Export Carton with foam
Product name :
IP stream Protocol Converter Gateway
Input :
7 Channels IP Port (SPTS)
IP Protocol :
HTTP, RTSP, HLS, RTMP, UDP
Output :
1 CH IP SPTS over 1000M
Memory :
4G
Solid -State Disk :
16G
Features :
support about 80 Programs (2Mbps) over UDP
Management :
WEB NMS
Description

IP Stream RTP RTSP to RTMP UDP HLS RTMP Protocol Converter Gateway

Model: COL5771



Outline

COL5771 IP stream protocol gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and USB (ts file) into HTTP, UDP, HLS and RTMP protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly.


Features

  • 7 channels IP input(SPTS) over HTTP, UDP, RTP, RTSP (over UDP, payload: mpegts) and HLS (CH1~7, 1000M)
  • 1 channel IP output(SPTS) through DATA port(1000M) over HTTP (Unicast), UDP(Multicast) HLS and RTMP(Program source should be H.264 and AAC encoding)
  • USB for playing program, and only play one TS from USB
  • Memory:4G; Solid-State Disk(SSD): 16G
  • Support about 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization
  • Support program playing with APK downloaded android STB and TV, maximum 250 terminals
  • Channel switching time with Colable’ STB: HTTP (1-3s), HLS (0.4-0.7s)
  • Control via web-based NMS management through DATA port



IP Protocol Converter

UDP to RTMP, HTTP, HLS
RTP/RTSP to RTMP, HTTP, HLS, UDP
HTTP to RTMP, UDP, HLS
HLS to RTMP, HTTP, UDP


IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771


IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771

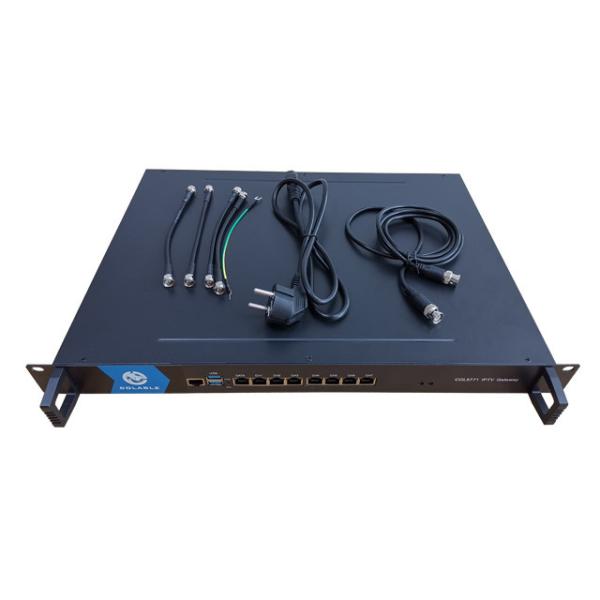

Packing for IP Converter Gateway

IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771



Digital CATV & IPTV System

IP Stream Converter Gateway RTP RTSP To RTMP UDP HLS RTMP Protocol COL5771
