Product Name :
DVB-S2X Modulator
Input :
4*ASI+1*IP (100M)+ 10MHz
Output :
DVB-S/S2/DVB-S2X RF
RF range :
950-2150 Mhz, 1Khz stepping
Constellation :
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
Features :
Biss Scrambling
Management :
SNMP/Web-server NMS
Applications :
Digital Satellite TV System
Description
Biss Scramble Satellite TV Modulator with ASI+IP to DVB-S DVB-S2 DVB-S2X Modulator COL5502X

Outline

COL5502X is a high-performance modulator developed according to DVB-S2X (EN302 307-2) standard which is the standard of third generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2/S2X RF/IF output.

BISS scrambling mode is inserted to this DVB-S2X modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel.

With its high cost-effective design, COL5502X modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.

Features

  • Fully complying with DVB-S (EN300 421), DVB-S2 (EN302 307) and DVB-S2X (EN 302 307-2) standard
  • 4 ASI inputs supporting backup (3 for backup)
  • Support IP (100M) signal input
  • QPSK, 8PSK, 8APSK, 16APSK, 32APSK Constellations
  • Support RF CID setting (Optional as per order)
  • Constant temperature crystal oscillator, as high as 0.1ppm stability
  • Support coupling 10Mhz clock output through RF output port
  • Support 24V power output through RF output port---COL5502X-R
  • Support BISS scrambling
  • Support local and remote control with Web-server NMS
  • Support SFN TS transmission
  • Output frequency range: 50~960MHz, 1KHz stepping---COL5502-I

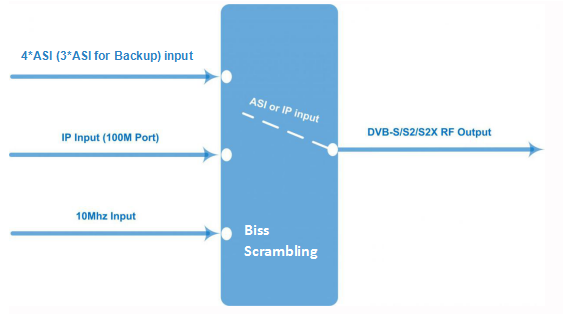

Principle Chart

Biss Scramble Satellite TV Modulator With ASI+IP To DVB-S DVB-S2 DVB-S2X Modulator

Specifications

ASI Input Supporting both188/204 Byte Packet TS Input
4 ASI Inputs, Supporting Backup
Connector: BNC, Impedance 75Ω
IP Input 1*IP Input (RJ45, 100M TS Over UDP)
10MHz Input 1*10MHz Input (BNC Interface)

RF Output

(COL5502X-R)

 RF Range: 950 ~ 2150 MHz, 10KHz step
Output Level Attenuation:-0 dBm~-31.5 dBm,0.5dB Step
MER≥40dB
Connector: N type, impedance 50Ω

IF Output

(COL5502X-I)

 Range:50 ~ 960 MHz, 1KHz step
Output Level Attenuation: -28.5dBm~+3 dBm, 0.5dB Step
MER≥40dB
Connector: N type, impedance 50Ω

Channel Coding

and Modulation

 Standard DVB-S DVB-S2 DVB-S2X
Outer coding RS Coding BCH Coding BCH Coding
Inner coding Convolution LDPC Coding LDPC Coding
Constellation QPSK

QPSK,8PSK,

16APSK,32APSK

QPSK,8PSK,

8APSK, 16APSK, 32APSK
FEC/ Convolution Rate 1/2, 2/3, 3/4, 5/6, 7/8

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

, 23/36, 25/36, 13/18

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9
Roll-off Factor 0.2,0.25,0.35 0.2, 0.25, 0.35 0.05, 0.10, 0.15, 0.2, 0.25, 0.35
Symbol Rate 0.05~45Msps

0.05~40Msps (32APSK);

0.05~45Msps (QPSK/8PSK/16APSK)

0.05~40Msps(32APSK)

0.05~45 Msps

(/8PSK/QPSK/8APSK/16APSK)
BISS Scramble Mode 1, Mode E
System Web-server NMS
Language: English
Ethernet software upgrade
24V power output through RF output port
Miscellaneous Dimension 482mm×410mm×44mm
Temperature 0~45℃(operation), -20~80℃ (storage)
Power 100-240VAC±10%,50Hz-60Hz

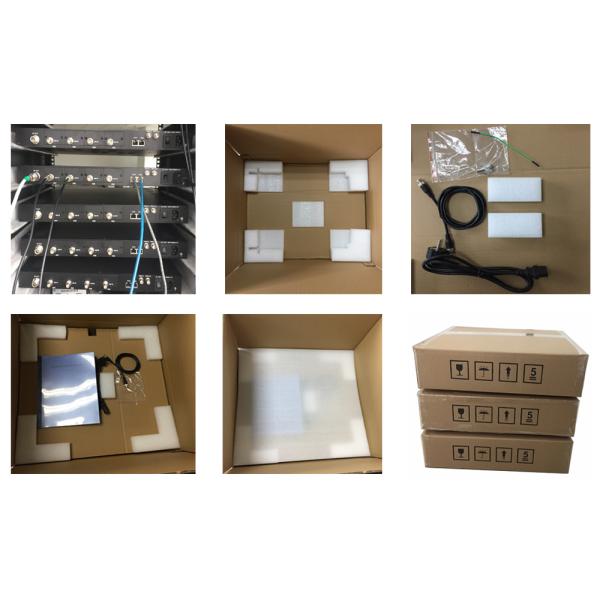

Packing for DVB-S2X Modulator
