Specifications
Brand Name :
iqualitrol
Model Number :
iBrin-417L
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
20 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Box
Range :
Brinell Hardness (8~650) HBW
Turret :
Automatic Turret
Eyepiece :
10x Digital Eyepiece
Dwell Time :
0~95 Seconds, Adjustable
Vertical Space :
170mm
Horizontal Space :
130mm
Description

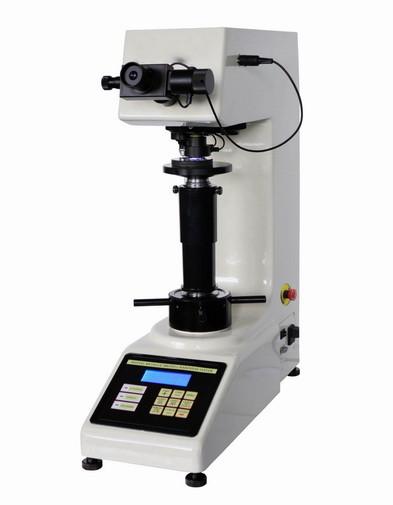

Low Load Brinell Hardness Testing Machine Automatic Turret With Objectives 5x and 10x

Technical Data Download: iqualitrol Brinell Hardness Tester iBrin-417L

Features:

● iBrin-417L is a half automatic and intelligent Brinell hardness testing machine, it adopts the pressure sensor to replace the traditional quality weight, this innovative design makes the instrument more accurate;


● iBrin-417L selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;

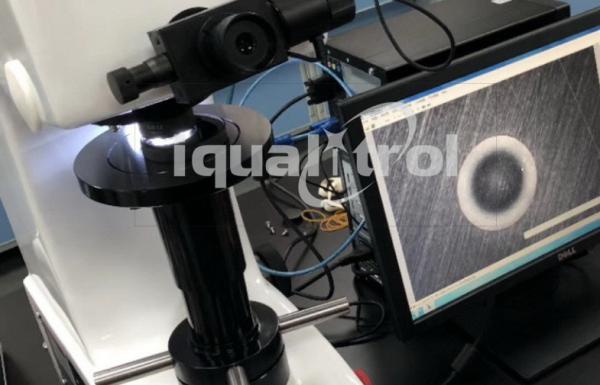

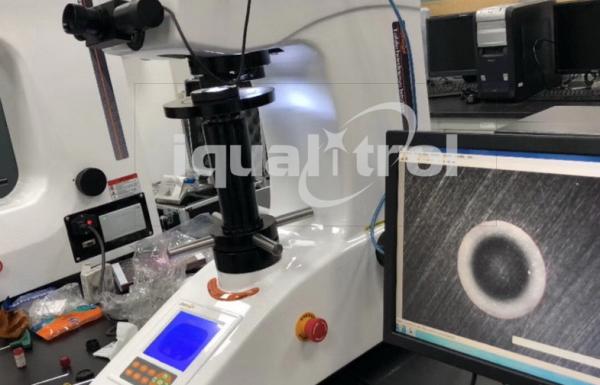

● iBrin-417L adopts digital Brinell microscopes with adjustable LED illuminator, it doesn’t need the operator to read the detail length of indentation, it only needs operator to aim the D1, D2 diagonal of indentation and press the length key twice above the Microscope, then the built-in computer can compute the Brinell scale and display the final testing result on LCD display automatically;


● iBrin-417L doesn’t need the operator to read the detail diameter of indentation and check the Brinell testing table, it improves the testing speed and accuracy of hardness testing obviously.

Technical Specifications:

Model iBrin-417L

Testing Force

 49.03N,61.29N,98.07N,153.2N,294.2N,306.5N,612.9N
5Kgf, 6.25Kgf, 10Kgf, 15.625Kgf, 30Kgf,31.25Kgf,62.5Kgf
Testing Range (8~650) HBW
Loading Control Automatic(loading, dwell, unloading)
Lens &Indenter Switch Auto-Turret
Magnification of Objective

Observation:5x/10x & Measurement: 5x/10x
Magnification of Eyepiece 10x Digital Eyepiece
Measuring Range 0.6~1.5mm
Resolution 0.5μm(5x) 0.25μm(10x)
Dwell Time 0~95s
Hardness Value Manual Measuring, Auto reading;Auto Measuring Auto Reading
Max of Height of Specimen 170mm
Instrument Throat 130mm
Power Supply AC220V/50Hz; 110V/60Hz
Instrument Dimension 535x225x580mm
Gross/Net Weight 75kg / 50kg
Execution Standard ISO 6506, ASTM E10 – 12, JIS Z2243, GB/T 231
Accuracy of Brinell Hardness Testing
Hardness Range Max. Tolerance Repetition
HBW≤ 125 ≤± 3.5％ ≤ 3.5％
125＜HBW≤225 ≤± 2.5％ ≤ 3.0％
HBW＞ 225 ≤± 2.0％ ≤ 2.5％
Brinell Scales
Diameter of ball Indenter Brinell Scales
5mm HBW5/62.5
2.5mm HBW2.5/62.5 HBW2.5/31.25 HBW2.5/15.625 HBW2.5/6.25
1mm HBW1/30 HBW1/10 HBW1/5

Low Load Brinell Hardness Testing Machine Automatic Turret With Objectives 5x and 10x

Standard Delivery:

Instrument Main Body Ø5mm Ball Indenter Ø200mm Flat Anvil
10x Digital Microscope Ø2.5mm Ball Indenter Ø 40mm V-shape Anvil
Objectives 5x Ø1mm Ball Indenter Level Screw
Objectives 10x Hardness Block HBW/30/1 Power Cable
Accessories Box Hardness Block HBW/62.5/2.5 Instrument Manual
