Basic Portable Leeb Metal Hardness Tester Support RS232 with Impact Device D
Basic Portable Leeb Metal Hardness Tester Support RS232 with Impact Device D
Basic Portable Leeb Metal Hardness Tester Support RS232 with Impact Device D
Basic Portable Leeb Metal Hardness Tester Support RS232 with Impact Device D
Basic Portable Leeb Metal Hardness Tester Support RS232 with Impact Device D
Basic Portable Leeb Metal Hardness Tester Support RS232 with Impact Device D
Basic Portable Leeb Metal Hardness Tester Support RS232 with Impact Device D
Basic Portable Leeb Metal Hardness Tester Support RS232 with Impact Device D
Basic Portable Leeb Metal Hardness Tester Support RS232 with Impact Device D
Basic Portable Leeb Metal Hardness Tester Support RS232 with Impact Device D
Specifications
Brand Name :
iqualitrol
Model Number :
iLeeb-200
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
50 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Carton Box
Direction :
Test Direction 0~360°
Error :
HLD:±5; HRC:±1; HB:±4
Range :
Hardness Range 170-960HLD
Impact Device :
Std. D; Optional DC/D+15/DL/G/C/E
Memory :
500 Groups test results
Data Output :
RS232
Description

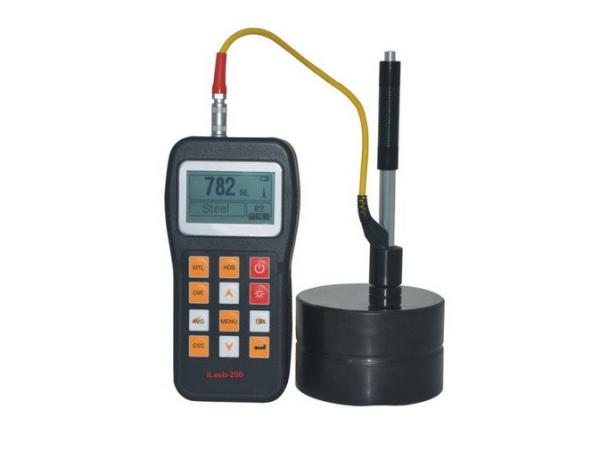

Economical Back-light LCD Portable Leeb Hardness Tester with Impact Device D

Technical Data Download: iqualitrol Portable Hardness Tester iLeeb-200

Features:

● Large memory for 500 groups test results;

● Auto-recognition of connected Impact Device;

● RS-232 interface (to hyperterminal or data view software);

● Time and date setting; auto-clock;

● Back-light LCD;

● Direct display of hardness scales HRB, HRC, HV, HB, HS, HL;

● Conversion to tensile strength σb (U.T.S.);

● For all metallic materials;

● Impact device provides testing at any angle, even upside down;

● High accuracy ±6HLD and conforms to ASTM A 956;

● Six impact devices are available for special applications.

Technical Specifications:

Product Name Portable Leeb Hardness Tester
Model iLeeb-200
Hardness Scale HL,HRC ,HRB, HRA, HV,HB,HS
Measuring Range (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB
Measuring Direction 0~360°
Indicating Error HLD:±5; HRC:±1; HB:±4
Language English
Memory 500 Groups test maximum
Printer Optional Printer
Shell Material Plastic
Statistics Average value, min-max ,upper-lower limits
Data-Output RS-232
Impact Device D (standard)
Optional impact Devices DC/D+15/DL/G/C/E
Work piece radius (convex/concave) Rmin=50mm(with support ring Rmin=10mm)
Min. Workpiece weight 2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device
Workpiece min. thickness couple 5mm,expect with impact device G:10mm,C:1mm
Workpiece min. case hardened depth 0.08mm except C impact device 0.2mm and impact device 1.2mm
Dimension 148mm×72mm×30mm
Power Supply AA/3V
Operating Temperature 0 ℃ to 40 ℃
Weight 220g (Excluding impact device and printer)

Standard Delivery:

Instrument Main Body RS-232 Data cable
Impact device type D SINOWON certificate
Hardness Block(750-830)HLD Charger
Mini-printer Accessories Box
Cleaning brush Instrument Manual

Optional Accessories:

Hardness Block(460-540)HLD

printer paper

I Optional Impact device type

Software Data Pro
Optional Support Ring

Measuring Range / Materials:

Material HLD HRB HRC HB HV HSD
Steel and cast steel 300-900 38-100 20-68 81-654 81-955 32-100
Cold work tool steel 300-840 — 20-67 — 80-898 —
Stainless steel 300-800 46-101 — 85-655 85-802 —
Grey cast iron 360-650 — — 93-334 — —
Nodular cast iron 400-660 — — 131-387 — —
Cast aluminum alloys 170-570 23-84 — 19-164 — —
Brass 200-550 13-95 — 40-173 — —
Bronze 300-700 — — 60-29 — —
Copper 200-690 — — 45-315 — —
