Fixed Speed Left 450rpm Metallographic Grinding and Polishing Machine 370W Motor Power

Technical Data Download:
iqualitrol Grinding and Polishing Machine XGrind-305

Brief Introduction:

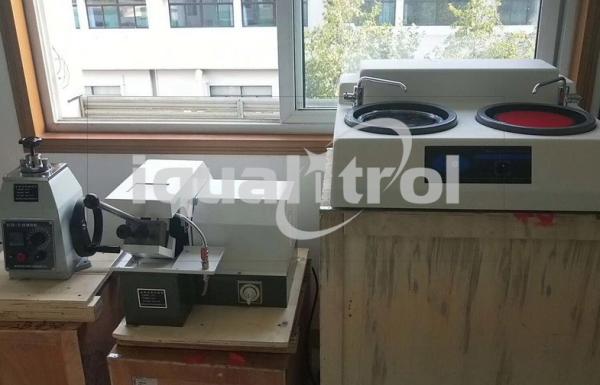

iqualitrol XGrind-305 double disc metallographical Grinding and Polishing Machine is suitable for carrying out rough grinding, normal grinding and polishing against metallographical specimens.

The machine is equipped with cooling system which can cool down the specimen during grinding so as to prevent overheating and damage the metallographical structure .

The disc on the left is for rough grinding and normal grinding while that on the right is for polishing .Two men can operate the machine simultaneously .

Featuring easy operation and reliable performance ,it is an indispensable device for the factories ,research institutions and college labs to prepare metallographical specimen .

Technical Specifications:

Surface layers damaged by cutting must be removed by grinding. Mounted specimens are ground with rotating discs of abrasive paper, for example wet silicon carbide paper. The coarseness of the paper is indicated by a number: the number of grains of silicon carbide per square inch. So, for example, 180 grit paper is coarser than 1200 grit.

The grinding procedure involves several stages, using a finer paper (higher number) each time. Each grinding stage removes the scratches from the previous coarser paper.

This can be easily achieved by orienting the specimen perpendicular to the previous scratches. Between each grade the specimen is washed thoroughly with soapy water to prevent contamination from coarser grit present on the specimen surface. Typically, the finest grade of paper used is the 1200, and once the only scratches left on the specimen are from this grade.

The series of photos below shows the progression of the specimen when ground with progressively finer paper.

Polishing discs are covered with soft cloth impregnated with abrasive diamond particles and an oily lubricant or water lubricant.

Particles of two different grades are used: a coarser polish - typically with diamond particles 6 microns in diameter which should remove the scratches produced from the finest grinding stage,

and a finer polish – typically with diamond particles 1 micron in diameter, to produce a smooth surface.

Before using a finer polishing wheel the specimen should be washed thoroughly with warm soapy water followed by alcohol to prevent contamination of the disc. The drying can be made quicker using a hot air drier.

Mechanical polishing will always leave a layer of disturbed material on the surface of the specimen. Electropolishing or chemical polishing can be used to remove this, leaving an undisturbed surface.

After a metallographic sample has been mounted, grinding and polishing creates a flat and even surface. Any potential residue from the mounting process or damage from the sectioning process are ground off to expose the actual microstructure of the sample. Polishing removes abrasions from the previous steps to provide a smooth surface.

iqualitrol grinding and polishing instruments ensure that metallographic instruments provide a reliably clean sample that will be ready for further analysis.
