Specifications
Brand Name :
iqualitrol
Model Number :
iMet-230DIC
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
20 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Carton Box
Eyepiece :
10X Wide Field Plan Eyepiece, FOV Φ22mm
Objective :
Bright Field Objective 5X, 10X, 20X, 50X
Eyepiece Tube :
Trinocular Inclined 30˚
Focusing :
Coaxial Coarse/Fine Focus System
Stage :
Mechanical stage,overall size:185mmX140mm
illumination :
12V 50W halogen and brightness enable control
Description

Metallographical Digital Industry Inspection Microscope with DIC and UIS Optical System

Technical Data Download: iqualitrol Metallurgical Microscope iMet-230DIC

Brief Introduction:

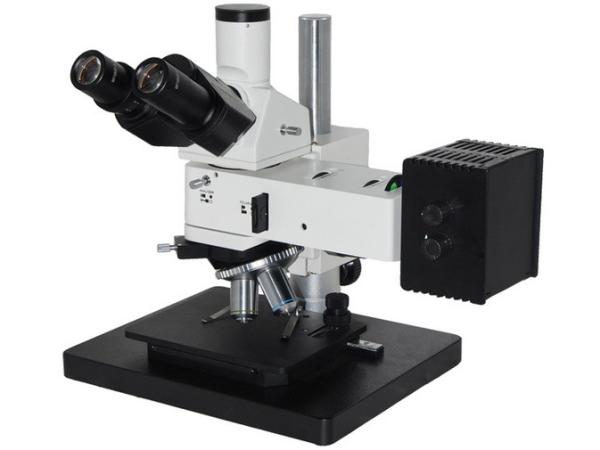

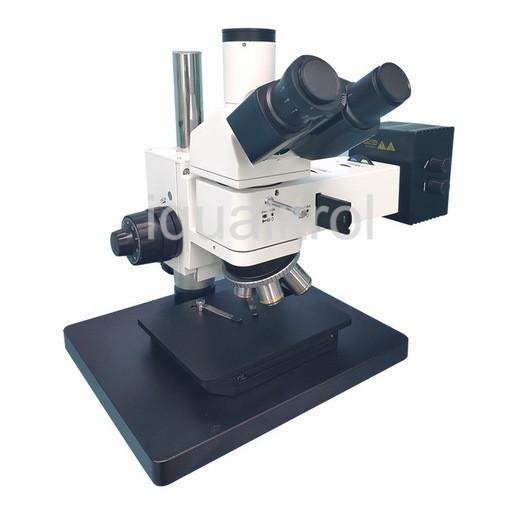

iqualitrol iMet-230DIC Industry inspection and measure microscope is suitable to observe surfaces structure and geometry of workpiece.

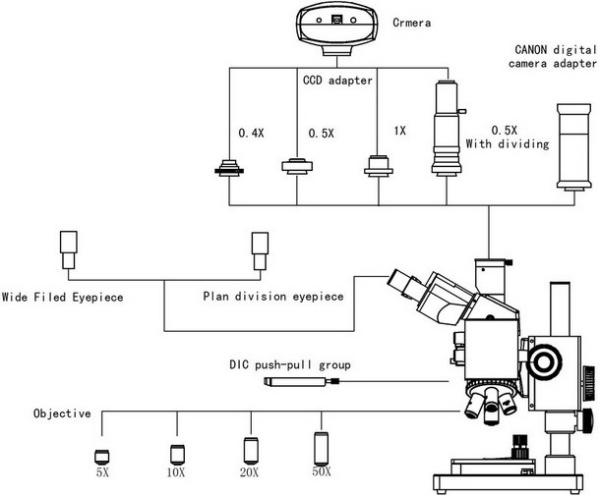

iqualitrol iMet-230DIC equips with excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, DIC observation.

Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece.

Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth.

This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.

Metallurgical microscopes provide polarization which makes it much easier to view a variety of minerals, types of metals and even ink samples. Material defect analysis is performed with a metallurgical microscope in search of the causes of corrosion, fatigue, stress fractures and cracks. Environmental protection and oil production often use metallurgical microscopes and in particular they may utilize both the high magnification and polarization features of the metallurgical microscopes.

Technical Specifications:

Eyepiece 10X wide field plan eyepiece and field of view Φ22mm
Infinity plan achromatic objectives

iMet-230DIC

(Equipped bright field objective)

LMPlan5X/0.12

working distance: 15 mm

LMPlan10X/0.3

working distance: 10.5 mm
LMPlan20X/0.4
working distance: 4.5mm

PL L50X/0.70
working distance: 3.68 mm

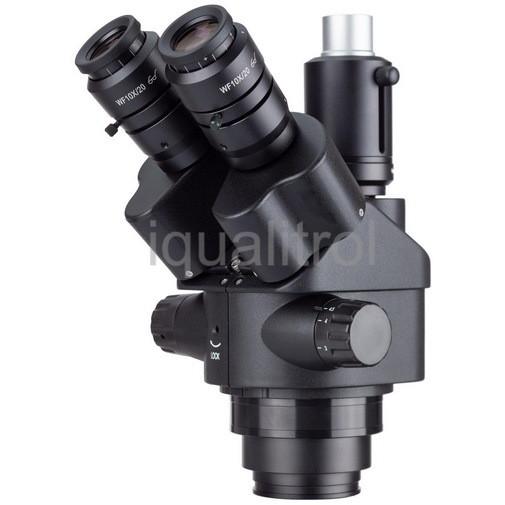

Eyepiece tube Trinocular inclined 30˚, can be shot in 100% light flux.
Focusing system Coaxial coarse/fine focus system, with tension adjustable device, minimum division of fine focusing: 1.0μm.
Nosepiece Quintuple (Backward ball bearing inner locating)
Stage Mechanical stage,overall size:185mmX140mm,moving range: 35mmX30mm
Illumination system iMet-230DIC 12V50W halogen and brightness enable control.

Integrated field diaphragm ,

aperture diaphragm and puller type polarizer.

(Equipped with frosted glass and yellow, green and blue filters)

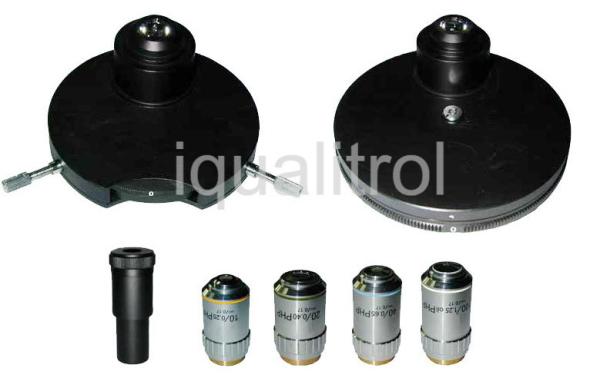

DIC group 5X/10X/20X DIC group
