Specifications
Brand Name :
iqualitrol
Model Number :
iPress-886
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
50 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Box
Mould :
25, 30, 40, 50mm
Loading :
Hydraulic Pressure Loading
Cooling :
Water Cooling
Power :
Power Consumption 1.6KW
Dwell Time :
100-2999 Seconds
Pressure :
Range 0-2MPa
Description

High Efficient Automatic Hot Mounting Press Machine With 4 Moulds Hydraulic Pressure Loading

Technical Data Download: iqualitrol Mounting Press iPress-886

Brief Introduction:

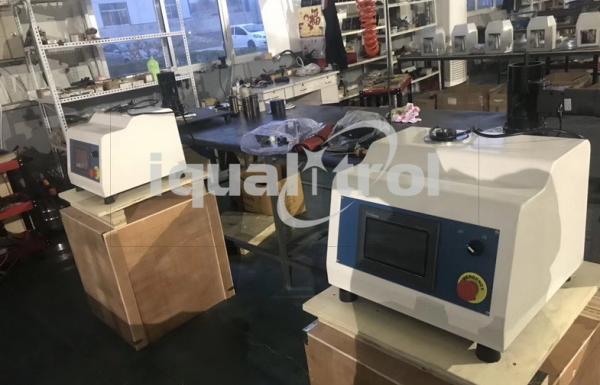

iPress-886 is an automatic mounting press for metallographic specimen, and can automatically finish the heating temperature, the dwell time, and cooling. The operator can change 4 specification patterns according to the difficult specimens. It can make 2 specimens at one time.

Technical Specifications:

Model iPress-886
Sample Diameter 25, 30, 40, 50mm
Heating Ranges 90-190℃
Pressure Range 0-2MPa
Cooling temperature range 40-90℃
Dwell Time Range 100-2999s
Cooling mode Cooling
Heating power 1600W
Input voltage 220V/50Hz
Dimension 700 X 550 X 515mm
Net weight 110kg

Mounting of specimens is usually necessary to allow them to be handled easily. It also minimizes the amount of damage likely to be caused to the specimen itself.

The mounting material used should not influence the specimen as a result of chemical reaction or mechanical stresses. It should adhere well to the specimen, and if the specimen is to be electropolished later in the preparation then the mounting material should also be electrically conducting.

Specimens can be hot mounted (about 150 °C) using a mounting press either in a thermosetting plastic, e.g. phenolic resin, or a thermosoftening plastic e.g. acrylic resin. If hot mounting will alter the structure of the specimen a cold-setting resin can be used, e.g. epoxy, acrylic or polyester resin. Porous materials must be impregnated by resin before mounting or polishing, to prevent grit, polishing media or etchant being trapped in the pores, and to preserve the open structure of the material.

A mounted specimen usually has a thickness of about half its diameter, to prevent rocking during grinding and polishing. The edges of the mounted specimen should also be rounded to minimize the damage to grinding and polishing discs.
