Specifications
Brand Name :
iqualitrol
Model Number :
iLeeb-N1800
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
50 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Carton Box
Model :
iLeeb-N1800
Name :
Leeb Portable Hardness Tester
Accuracy :
+/-2 HLD
Direction :
Impact Direction 360 Degree
Scale :
HL/HRC/HRB/HB/HV/HS/σb
Data Output :
USB Cable
Display :
High contrast LED display
Printing :
Support Portable Printer
Description

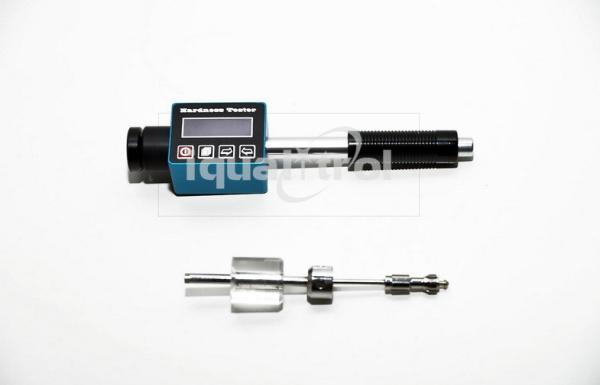

Automatic Power off Pen Type Leeb Portable Hardness Tester with Scales HRC / HRB / HB

Brief Introduction:

iLeeb-N1800 is an Integrated durometer with features of easy operation, Wide operating application, support Auto impact direction.

High accuracy ±2HL 0.3%
Palm sized and easy operation
High contrast LED display
Wide operating temperature: -40° C~+60° C
Auto switch on & off
Micro-printer can be used on site
Recalibration allowed by user

The Leeb test is a modern electronic version of the Scleroscope. It uses a carbide ball hammer that is spring rather than gravity powered. An electronic sensor measures the velocity of the hammer as it travels toward and away from the surface of the sample. The Leeb value is the hammer's rebound velocity divided by the impact velocity times 1000. The result is Leeb hardness from 0 to 1000 that can be related to other hardness scales such as Rockwell and Vickers.

Since the devise is electronic in nature, most instruments are designed to automatically convert from the Leeb number to a more conventional hardness scale. By using a variety of different conversions to suit the modulus of different materials, a wide range of metallic parts can be tested. The main limitations are that the parts must have a good finish and a minimum weight of 5kg. Leeb testers are portable and can be used at different angles as long as they are perpendicular to the test surface.

Technical Specifications:

Model iLeeb-N1800
Principle Leeb hardness measurement
Accuracy +/-2HL(0.3%@HL=800)
Display digital with high contrast LED
Hardness scale HL/HRC/HRB/HB/HV/HS/σb
Measruing range HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88
Impact devic D/DL 2-in-1 (Internal, optional)
Materials 9 common metal materials
Memory 360, 000 data in 400 blocks
Statistics Average / Max. / Min. / value
Recalibration Allowed by user
Interface USB for data transferring to PC and charging battery
Indicator Low battery
Power on/off Auto
Power supply 3.7v Li-ion rechargeable battery
Working environment -40~+80°C
Standard ASTM A956
Dimension (mm) 148x44x22
Net weight (g) 110
