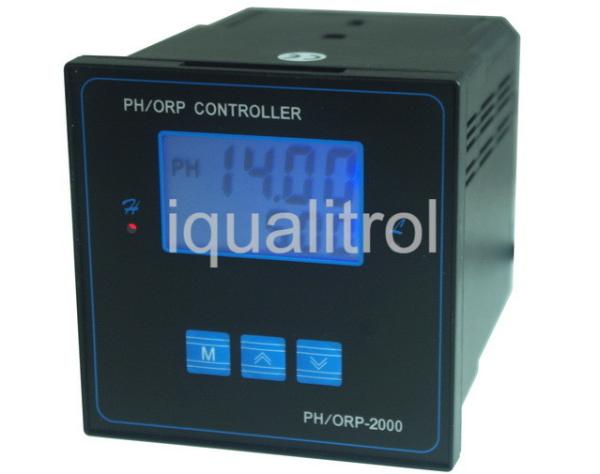

LCD Display PH ORP Controller PH/ORP-2000 for Water Treatment and Neutralization Processes
LCD Display PH ORP Controller PH/ORP-2000 for Water Treatment and Neutralization Processes
LCD Display PH ORP Controller PH/ORP-2000 for Water Treatment and Neutralization Processes
LCD Display PH ORP Controller PH/ORP-2000 for Water Treatment and Neutralization Processes
LCD Display PH ORP Controller PH/ORP-2000 for Water Treatment and Neutralization Processes
LCD Display PH ORP Controller PH/ORP-2000 for Water Treatment and Neutralization Processes
LCD Display PH ORP Controller PH/ORP-2000 for Water Treatment and Neutralization Processes
LCD Display PH ORP Controller PH/ORP-2000 for Water Treatment and Neutralization Processes
Specifications
Brand Name :
iqualitrol
Model Number :
PH/ORP-2000
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Carton Box
Range :
0~14 PH / 1 mV、-1000~1000 mV
Resolution :
0.01 PH、1 mV
Output :
Optional DC 4~20 mA Max Load 1 K
Relay Current :
220 VAC Max 3A or 600 VA
Control Set :
2(High,Low)
Work Temp :
0~60ºC
Description

LCD Display PH / ORP Controller PH/ORP-2000 for Water Treatment and Neutralization Processes

Technical Data Download: iqualitrol PH ORP Controllor PH/ORP-2000

Application:

iqualitrol PH controller used for applications such as water treatment and monitoring,galvanic-decontamination, chemical processing,food processing,clean or wastewater control and neutralization processes.

pH controller is one of the intelligent online chemical analysis instruments. It can continuously monitor the data and realize remote transmission monitoring and recording through the transmission output connection recorder. It can also be connected to the RS485 interface . It can be easily connected to the computer through the MODBUS-RTU protocol. Monitoring and recording.

Features:

Though the construction of the pH / ORP Controller complies with safety regulations currently in force, improper use could lead to hazards for the user or a third-party.

Therefore, the operating instructions must be read and understood by the persons involved before work is started with the pH / ORP Controller.

Technical Specifications:

Range 0~14PH/1 mV, -1000~1000mV
Resolution 0.01 PH,1 mV
Display LCD
Output Optional DC 4~20mA Max Load 1 K
Control Action ON/OFF
Relay Current 220 VAC Max 3A or 600 VA
Control Set 2(High,Low)
Operating Temp 0~60ºC
Power Supply 220VAC 50 Hz
110VAC 60 Hz
Dimensions 92 mm(H)-92 mm(W)-110 mm(D)
Weight 0.2kg
Standard Accessories Main Unit
Carrying Case(B03)
Operation Manual

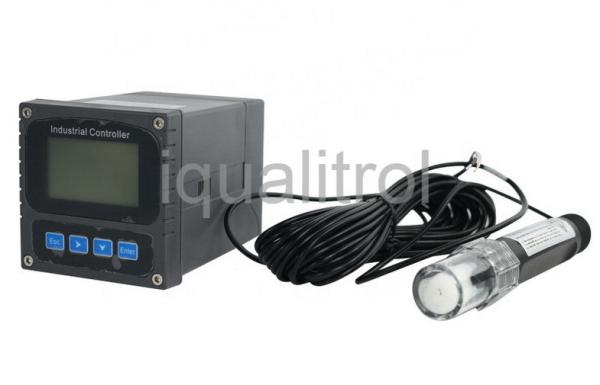

Optional Accessories:

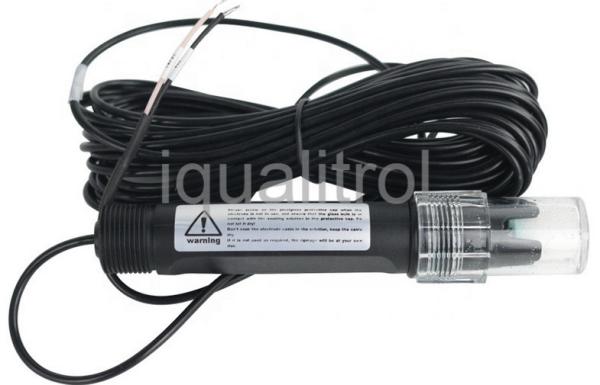

Optional Probes
Model Number Cases
PH-200 Common Industry
PH-201 Highly Polluted Process and Waste Water
PH-202 Anti-HF Electrode
PH-203 Cases of High Pressure or Leavening
ORP-201 ORP Electrode
