High Accuracy Universal Material Testing Machine ANL Digital Torque Meter
High Accuracy Universal Material Testing Machine ANL Digital Torque Meter
Specifications
Brand Name :
iqualitrol
Model Number :
ANL-1000P / ANL-1000
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
10 work days
Packaging Details :
Carton box
Model :
ANL-1000P / ANL-1000
Precision :
±1%
Frequency :
Peak Value Sampling Frequency 2000HZ
Power :
8.4V 1.2VX7 　Ni-MH Battery group
Charging Time :
4～6 Hours
Continuous using time :
About 10 Hours
Battery life :
≥300 times
Name :
Digital Torque Meter
Description

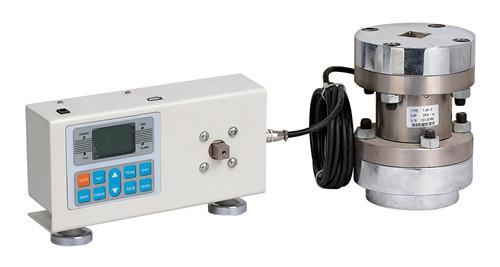

ANL-1000-5000 Digital Torque Meter

Function:

The ANL digital torque meter is specially designed for measuring all kinds of torque.

It is suitable for all kinds of torque measurement and adjust components reverse destructive test and so on.

This product Mainly used in measuring all kinds of electric and air torque, bottle opener, screwdriver, torque wrench,tighten torque instrument and product, widely applies in the electrical manufacture, the machine manufacture,the automobile light industry and the specialized scientific research and industry.

Technical Specifications:

Type/Index With printer ANL-1000P ANL-2000P ANL-3000P ANL-5000P
No printer ANL-1000 ANL-2000 ANL-3000 ANL-5000
Measuring range / Division value N·m 1000.0/0.1 2000.0/0.1 3000.0/0.1 5000.0/0.1
Kg·cm 10210/1 20420/1 30630/1 51051/1
Lb·in 88622/1 17724/1 26586/1 44311/1
Precision ±1%
Peak Value Sampling Frequency 2000HZ
Power 8.4V 1.2VX7 　Ni-MH Battery group
Charging Time 4～6 Hours
Continuous using time of battery About 10 Hours
Battery life ≥300 times
Size

With printer:Host display part 230mm×95mm×180mm

No printer:Host display part 230mm×70mm×125mm
Net Weight With printer:36KG No printer:34KG
Power adapter Input:AC 220V 50HZ Output:DC 10V 300mA

Features:

1: High accuracy, high resolution, and stability. The sampling speed can be set.
2: Fluctuate limiting value set, has the acousto-optic alarm device.


3: Lattice type LCD, the back light can be set.
4: Torque directions identify.


5: Three kind of unit: N · m, kg · cm, lb · in automatic conversion.
6: Many kinds of front values maintain.


7: Power source shows and low power prompt.
8: No-operation close automatically, can set the close time.


9: Saves and prints 100 test data, can clean out at will.
10: Uses the USB connect to the PC, examine real-time, survey curve, and carries on processing to the data:such as prints, statistics and so on.
