Digital torque meter with printer Intelligent Multi-functional Measuring Instrument
Digital torque meter with printer Intelligent Multi-functional Measuring Instrument
Specifications
Brand Name :
iqualitrol
Model Number :
ANL-50P
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Carton Box
Precision :
±1%
Peak Value :
Frequency 2000HZ
Power :
Ni-MH Battery group
Charging Time :
4～6 Hours
Poweroff :
Automatic Poweroff
Battery life :
≥300 times
Description

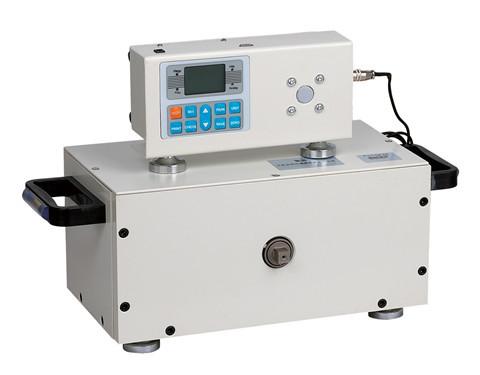

Digital torque meter with printer Intelligent
Multi-functional Measuring Instrument


Function:
The iqualitrol ANL digital torque meter is specially designed for measuring all kinds of torque. It is suitable for all kinds of torque measurement and adjust components reverse destructive test and so on.

This product Mainly used in measuring all kinds of electric and air torque, bottle opener, screwdriver, torque wrench, tighten torque instrument and product, widely applies in the electrical manufacture, the machine manufacture, the automobile light industry and the specialized scientific research and industry.

Features:
1:High accuracy, high resolution, and stability. The sampling speed can be set.
2:Fluctuate limiting value set, has the acousto-optic alarm device.


3:Lattice type LCD, the back light can be set.
4:Torque directions identify.


5:Three kind of unit: N · m, kg · cm, lb · in automatic conversion.
6:Many kinds of front values maintain.


7:Power source shows and low power prompt.
8:No-operation close automatically, can set the close time.


9:Saves and prints 100 test data, can clean out at will.
10Uses the USB connect to the PC, examine real-time, survey curve, and carries on processing to the data: such as prints, statistics and so on.

Technical Specifications:

Typ/Index With printer ANL-50P ANL-100P ANL-200P ANL-300P ANL-500P
No printer ANL-50 ANL-100 ANL-200 ANL-300 ANL-500
Measuring range / Division value N·m 50.000/0.001 100.00/0.01 200.00/0.01 300.00/0.01 500.00/0.01
Kg·cm 510.52/0.01 1021.0/0.1 2042.0/0.1 3063.1/0.1 5105.2/0.1
Lb·in 443.11/0.01 886.2/0.1 1772.4/0.1 2658.6/0.1 4431.1/0.1
Precision ±1%
Peak Value Sampling Frequency 2000HZ
Power 8.4V 1.2VX7 　Ni-MH Battery group
Charging Time 4～6 Hours
Continuous using time of battery About 10 Hours
Battery life ≥300 times
Size

With printer:Host display part 230mm×95mm×180mm
Measuring device part 480mm×190mm×180mm
No printer:Host display part 230mm×70mm×125mm
Measuring device part 480mm×190mm×180mm
Net Weight With printer:36KG No printer:34KG
Power adapter Input:AC 220V 50HZ Output:DC 10V 300mA
