Dial 0.5HR Motorized Loading Superficial Rockwell Hardness Tester Vertical Height 170mm
Dial 0.5HR Motorized Loading Superficial Rockwell Hardness Tester Vertical Height 170mm
Dial 0.5HR Motorized Loading Superficial Rockwell Hardness Tester Vertical Height 170mm
Dial 0.5HR Motorized Loading Superficial Rockwell Hardness Tester Vertical Height 170mm
Dial 0.5HR Motorized Loading Superficial Rockwell Hardness Tester Vertical Height 170mm
Dial 0.5HR Motorized Loading Superficial Rockwell Hardness Tester Vertical Height 170mm
Specifications
Brand Name :
iqualitrol
Model Number :
HRM-45DT
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Case
Initial Force :
3kgf (29.42N)
Total Force :
15kgf(147.1N), 30kgf(294.2N), 45kgf(441.3N)
Result :
Dial reading
Vertical Height :
170mm
Horizontal :
Space 135mm
Loading Control :
Automatic loading / Dwell / Unloading
Description

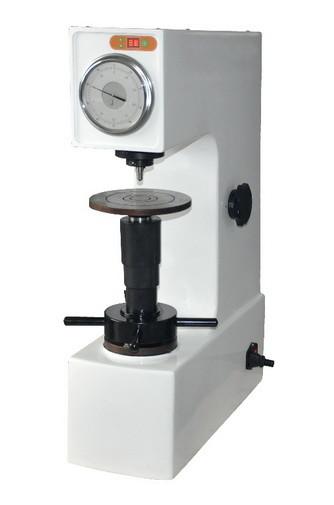

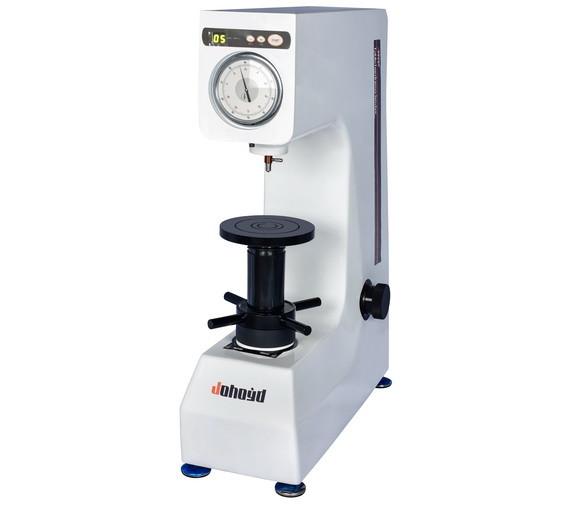

Dial 0.5HR Electric Motorized Superficial Rockwell Hardness Tester Vertical Height 170mm

Model: HRM-45DT

Technical Data Download:

iqualitrol Superficial Rockwell Hardness Tester HRM-45DT

Brief Introduction:

1, IQUALITROL Electric Superficial Rockwell Hardness Tester adopts the automatic loading and unloading test force, and the test force transformation is obtained by the rotation of the variable force knob;

2, The operation is simple and rapid, without the dial zero, digital display dwell time directly, no human error, with high sensitivity and stability; suitable for workshops and laboratories.

Highlighted Features:

1. Read the hardness value directly through the dial pointer, the pointer response is sensitive, the accuracy is higher than the national standard;

2. The shell is made by a special sandblasting process with a one-step casting process. The structure is stable and not deformed. It can work in a relatively harsh environment.

3, Test force loading, dwell and unloading is automatically completed;

4. We have our own R&D, production and processing capabilities, provides parts replacement and maintenance upgrade services.

Application Range:

Quenched steel, quenched and tempered steel, annealed steel, bearing steel, strip steel, hardened steel sheet, hard alloy, etc.;

Technical Specifications:

Model HRM-45DT
Initial test force 3kgf(29.42N)
Test force 15kgf(147.1N), 30kgf(294.2N), 45kgf(441.3N)
Rockwell scales HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Data output Dial reading
Executive standard

GB/T230.1, GB/T230.2 Chinese Standard

JJG112 Inspection Standard
Maximum height of test piece 170mm
Indenter - outside wall distance 135mm
Power supply AC220V+5%, 50~60Hz
Dimensions (mm) 463×240×650mm
Net Weight 80kg

Accessories:

Name Quantity Name Quantity
Diamond Rock Indenter 1 Diameter 1.5875mm ball Indenter 1
Rockwell hardness block 3 Large, Medium and V Test Anvil 1 each
Screwdriver 1 Dust-proof plastic cover 1
Power cable 1 fuse 2
Product instruction manual 1 Accessory box 1
