Specifications
Brand Name :
iqualitrol
Model Number :
HR-150DTS
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
5 Working Days
Packaging Details :
Plywood Case
Hardness :
Display by LCD
Resolution :
0.1HR
Force Change :
by Manual Force Knob
Loading Control :
Automatic Loading/Dwell/Unloading
Conversion :
Scales of HV, HB
Horizontal :
Space 135mm
Description

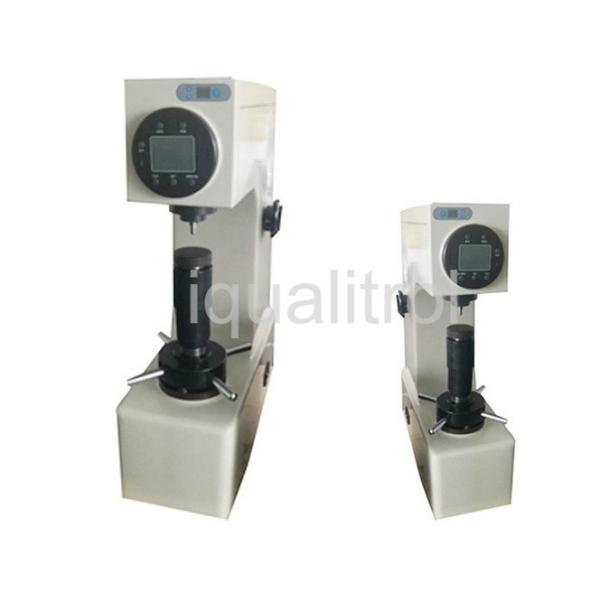

Digital Display 0.1HR Motorized Loading Rockwell Hardness
Tester with Hardness Conversion


Model: HR-150DTS

Technical Data Download:
iqualitrol Motorized Loading Rockwell Hardness Tester HR-150DTS

Technical Specifications:

Model HR-150DTS
Initial test force 10kgf(98.07N)
Total test force 60kgf(588N), 100kgf(980N), 150kgf(1471N)
Rockwell Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK
Hardness Range HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77
HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100
Data Reading Digital Display

Executive

standard

ASTM E18
JJG112 Verification Regulation

Maximum height

of test piece

 170mm
Depth Throat 135mm, Indenter - outside wall distance
Power supply AC220V+5%,50~60Hz
Dimensions (mm) 463×240×650mm
Net Weight about 70kg

Brief Introduction:
iqualitrol HR-150DTS equips with digital display to show hardness results directly with resolution 0.1HR, the accuracy is much better than dial reading.


The electric digital Rockwell hardness tester adopts the automatic loading and unloading test force mechanism, and the test force transformation is obtained by the rotation of the variable load wheel;
The operation is simple and rapid,no human error, with high sensitivity and stability; suitable for workshops and laboratories.


Main Functions and Features:
1, HR-150DTS can be directly display HV, HB hardness conversion;
2, Digital display with low power consumption, long using life;


3, HR-150DTS with data output function, can connect computer or serial micro-printer;
4. The shell is made by a special sandblasting process with a one-step casting process. The structure is stable and not deformed. It can work in a relatively harsh environment. The grade of automobile paint is high, and the scratch resistance is strong. It is still bright as a new product for many years.


The main purpose and scope of application:
1. Quenched steel, quenched and tempered steel, annealed steel, bearing steel, strip steel, hardened steel sheet, hard alloy, etc.;


2. HRC is most applicable to testing carbon steel after quenching or low tempering, alloy steel, tool steel, die steel, as well as chilled cast iron, titanium alloy and so on. Generally, we apply HRC scale to test materials HRB>100, and HRB scale to test materials HRC<20 avoiding influence caused by glide of indenter.

Accessories:
Name Quantity Name Quantity
Diamond Indenter 1 Diameter 1.5875mm ball Indenter 1
Rockwell hardness block 3 Large, Medium and V Test Anvil 1
screwdriver 1 Dust-proof cover 1
power cable 1 fuse 2
Instruction manual 1 Accessory box 1
