iqualitrol Leather Folding Resistance Testing Machine ROSS Flexing Tester for Leather
iqualitrol Leather Folding Resistance Testing Machine ROSS Flexing Tester for Leather
iqualitrol Leather Folding Resistance Testing Machine ROSS Flexing Tester for Leather
iqualitrol Leather Folding Resistance Testing Machine ROSS Flexing Tester for Leather
iqualitrol Leather Folding Resistance Testing Machine ROSS Flexing Tester for Leather
iqualitrol Leather Folding Resistance Testing Machine ROSS Flexing Tester for Leather
Specifications
Brand Name :
iqualitrol
Model Number :
iRY-2
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
5 Working Days
Packaging Details :
Plywood Box
Model :
iRY-2
Name :
ROSS Flexing Machine
Bend angle :
22.5° (±0.5°)
Bending rate :
100(±5)C.P.M
Counter :
6 digits
Motor :
400W
Power supply :
AC220V/5Hz
Dimension :
650×500×350mm
Description

Leather Folding Resistance Testing Machine IQUALITROL iRY-2 ROSS Flexing Tester for Leather

Technical Data Download: iqualitrol ROSS Flexing Tester for Leather

Brief Introduction:

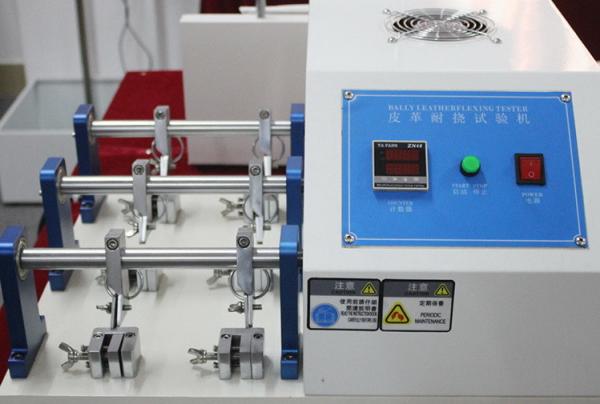

The iqualitrol leather folding tester is used for the flex resistance test of the upper leather and the thin leather (the shoe upper leather, the handbag leather, the bag leather etc.) and the cloth fold back and forth.


Testing Principles:
The folding endurance of leather means that one end surface of the test piece is used as the inner side, and the other end surface is bent as the outer side.

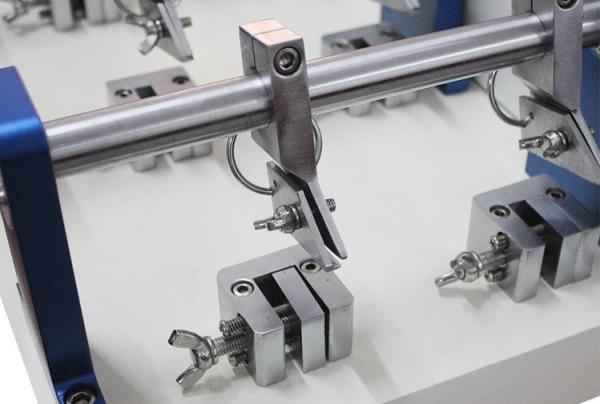

Specifically, both ends of the test piece are respectively mounted on the fixtures of the designed test, and one of the fixtures is fixed.

Another jig is used to make a reciprocating motion to bend the test piece until the test piece is damaged, record the number of times it is bent, or look for the degree of damage after it has been bent a certain number of times.

Confirm Testing Standards:

Leather flexible test methods BS-3144, JIB-K6545, QB1873, QB2288, QB2703, GB16799-2008, QB/T2706-2005, etc.

Technical Specifications:

Bend angle 22.5° (±0.5°)
Test strip device value 12PCS
Bending rate 100(±5)C.P.M
Counter 6 digits
Motor 400W
Power supply AC220V/50Hz
Dimension 650×500×350mm
Net Weight 50Kg
