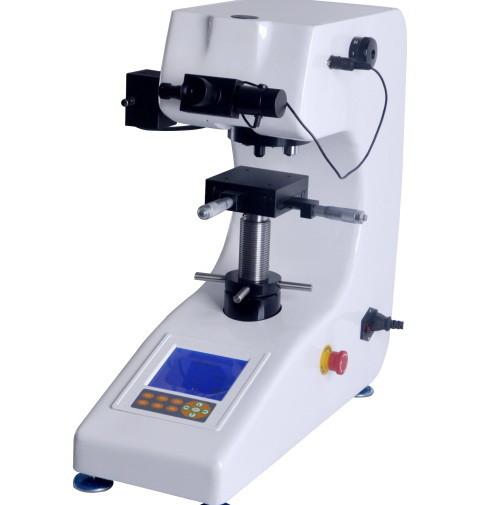

Large LCD Auto Turret Digital 10X Eyepiece Micro Vickers Hardness Tester Built-in Printer

Technical Data Download:

iqualitrol Micro Vickers Hardness Tester HVS-1000ZL

Brief Introduction:

Digital automatic turret type micro hardness tester can meet the basic Vickers hardness test requirements. The upgraded digital micrometer eyepiece can directly read the measurement length, so that the measurement value can be obtained more quickly and accurately.

The tower can automatically switch the eyepiece and indenter to avoid artificial errors and damage the instrument, and also greatly improve the efficiency. LCD large-screen display facilitates observation, test conditions, and the test process is straightforward.

Technical Specifications:

Main Functions and Features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, and it is visually comfortable. Long-time operation is not easy to fatigue operators.

2. Industrial display LCD large-screen display can display test method, test force, measuring indentation length, hardness value, converted hardness value, test force holding time, number of measurements and can be typed into year, month, date, test results and data processing, etc.

3. Cast aluminum shell molding, with stable structure and is not easy to be deformed, pure white car paint high grade, anti-scratch ability, using for many years is still bright as new;

4. Our company has the ability of self-developing, designing, producing and processing. The machine provides parts replacement and maintenance upgrade service for life;

5. HVS-1000Z model can be realistic: the length of the measurement directly confirms the hardness value.
6. The HVS-1000Z model can be realized: observation-test-measurement position switching is done by the automatic turret.

Application:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures;
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings;
3. Glass, wafers, ceramic materials.

Standard Delivery:

Note:

1. The optional side-sway lifting system makes the lifting system more stable and accurate.
2. Optional built-in printer, measurement data, a key print, can also upload the computer.
3. Optional hardness meter measurement software can eliminate manual error, computer operation, improve efficiency and accuracy.
