Mechanical Micro Vickers Hardness Tester Machine AC220V 50HZ Auto Loading Control
Mechanical Micro Vickers Hardness Tester Machine AC220V 50HZ Auto Loading Control
Mechanical Micro Vickers Hardness Tester Machine AC220V 50HZ Auto Loading Control
Mechanical Micro Vickers Hardness Tester Machine AC220V 50HZ Auto Loading Control
Mechanical Micro Vickers Hardness Tester Machine AC220V 50HZ Auto Loading Control
Mechanical Micro Vickers Hardness Tester Machine AC220V 50HZ Auto Loading Control
Mechanical Micro Vickers Hardness Tester Machine AC220V 50HZ Auto Loading Control
Mechanical Micro Vickers Hardness Tester Machine AC220V 50HZ Auto Loading Control
Mechanical Micro Vickers Hardness Tester Machine AC220V 50HZ Auto Loading Control
Mechanical Micro Vickers Hardness Tester Machine AC220V 50HZ Auto Loading Control
Specifications
Brand Name :
iqualitrol
Model Number :
HV-1000Z
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Case
Test Force :
from 0.01Kgf to 1Kgf
Dwell Time :
from 5 seconds to 60 seconds
Objectives :
10X, 40X
X-Y Anvil :
100 * 100mm
Max Height :
110mm
Horizontal :
space 85mm
Description

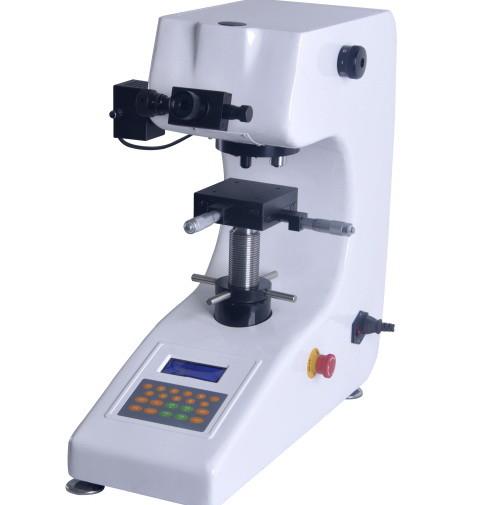

Mechanical 10X Eyepiece Motorized Turret Micro Vickers
Hardness Tester HV-1000Z Auto Loading Control

Technical Data Download: iqualitrol Micro Vickers Hardness Tester HV-1000Z

Brief Introduction:

The iqualitrol automatic turret type micro hardness tester is a high-tech product of opto-mechatronics. The hardness tester is novel in design, has good reliability, operability and repeatability, and is an ideal product for testing micro hardness.

iqualitrol micro vickers hardness tester HV-1000Z equips with high-magnification optical measurement system and optical dual-channel structure, photoelectric, photo coupler and other new technologies.

Through the key operation, the length of the measurement indentation can be entered on the key, the hardness value can be displayed on the LCD screen, the conversion scale, the test force, the test force holding time and the number of measurements.

Technical Specifications:

Micro hardness scale HV0.01, HV0.025, HV0.05, HV0.1,
HV0.2, HV0.3, HV0.5, HV1
Display Dwell time (seconds), hardness value
Test force 10, 25, 50, 100, 200, 300, 500, 1000gf
Loading control Automatic (loading/dwell/unloading)
dwell time 5 to 60 seconds
Test force selection External selector knob, test force is automatically displayed on the LCD screen

Objective

magnification

 10X, 40X
Optical channel Dual light channels
(eyepieces and CCD camera channels)
Optical system 1. 10x eyepiece;
2. The total magnification (μm): 100X (observation), 400X (measurement);
3. Measuring range (μm): 200;
4. Resolution (μm): 0.01
Hardness measurement range (5-3000) HV
XY test platform Size (mm): 100X100
Travel range (mm): 25X25
Minimum reading (mm): 0.01

Maximum height

of specimen

 110mm

Maximum width

of specimen

 85mm (distance from the center line of the indenter to the wall)
Voltage AC220V/50HZ
Weight 35kg
Dimensions (540×200×530)mm

Standard Configuration:

Main Unit
(indenter x1, 10x objective x1, 40x objective x1)

 Test platform, weight, microscope accessory box;
Weighs x6 Weighs bar x1
X-Y Cross table x1 Sheet clamping table x1
Flat mouth clamping table x1 Filament holding table x1
Level meter x1 Screwdriver x2
Horizontal adjustment screws x4 External power cord x1
10x Micrometer Eyepieces x1 Micro Vickers hardness block x2
(HV1, HV0.2 x1 for each )
Fuses (1 A) x2 Product certification x1
Product Instruction Manual x1 Dust cover x1

Note:

1. Optional side-sway lifting system makes the lifting system more stable and accurate

2. Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.

3. Cooperation institutions: Nanjing University of Science and Technology, Hefei University of Technology, Harbin Institute of Technology, Wuxi Jiangnan University, Guilin University of Electronic Technology, etc.

Main Functions and Features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, and it is visually comfortable. Long-time operation will not make you fatigued.

2. The industrial display screen can directly display the hardness value, the conversion hardness, the test method, the test force, the retention time, the number of measurements, and the test process is intuitive and clear;

3. Cast aluminum shell molding, stable structure won’t be easily deformed, pure white car paint high grade, anti-scratch ability, use for many years is still bright as new;

4. HV-1000Z model can be achieved: observation - test - measurement of the position switch by the automatic turret.

Application:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures

2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings, Glass, wafers, ceramic materials
