Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed
Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed
Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed
Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed
Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed
Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed
Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed
Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed
Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed
Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed
Specifications
Brand Name :
iqualitrol
Model Number :
iGrind-816
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Model :
iGrind-816
Diameter :
203mm(Opt.250mm)
Speed :
50-600rpm
Disc :
Quantity 2
Power :
740W
Cooling Type :
Water Cooling
Description

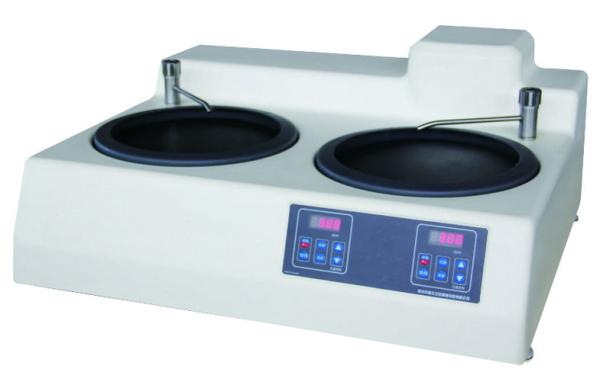

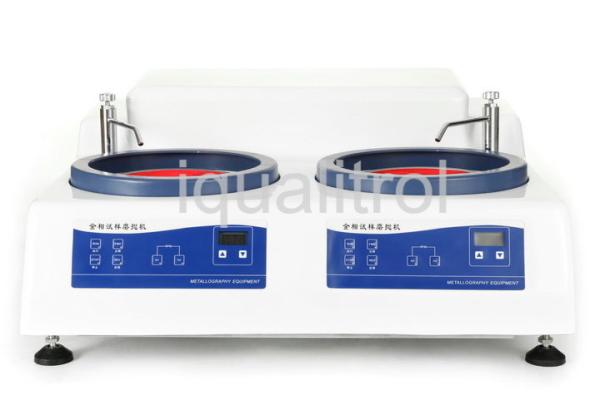

Double Disc Separated Control Metallographic Grinding and Polishing Machine Stepless Speed

Brief Introduction:

iGrind-816 has cooling device, which can cool the specimen during grinding and polishing to prevent the destruction of specimen micro structure. It is easy to use,safe and reliable, an idea equipment for enterprises scientific research institutions and colleges laboratory.

Technical Specifications:

Disc Diameter 203mm(Opt.250mm)
Rotation speed 50-600rpm
Rotate Direction Clockwise/Anticlockwise
Input voltage AC220V/50HZ/1Ph
Disc Quantity 2
Power Consumption 550W
Dimension 690*735*310mm
Net weight 55kg

Grinding and polishing machine iqualitrol iGrind-816 is a double-disc dual-control desktop machine, suitable for coarse grinding, fine grinding and polishing of the sample, and can meet two person working together.

The machine adopts micro-processing system, double-disc can be directly achieve separately 50-1000 rpm speed and 150 and 300 rev / min two-speed, so that the machine has a wider range of applicability.

With cooling device, it could cool the specimen while pre-grinding so as to avoid over heat to damage the metallographic organization. Convenient use, safe and reliable, it is the idea equipment of making specimen for the factories, research units , universities and collages.

Features:

The two ends are independently controlled, and one machine is used to complete the rough grinding, fine grinding, rough casting and fine polishing of the metallographic samples.

Two speeds are fixed and the speed is convenient. It can switch the steering wheel steering, which is convenient for operators to use.

The slewing water pipe can be rotated to adjust the water flow.

The equipment operates with low noise and smooth grinding discs.

With a cabinet-type workbench, there is no need to match the workbench to facilitate the placement of tools, consumables and other debris.
