Specifications
Brand Name :
iqualitrol
MOQ :
10 pcs
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
15 Working Days
Packaging Details :
Carton Box
Model Number :
Diamond Cutting Blade Saw
Dimension :
Dia. from 100mm to 400mm
Diamond Disc :
for Precision Cutting Machine
Materials :
Brown Aluminum Oxide & Carborundum
Application :
Carbon Steel, Alloy Cast Iron, Bronze
Description

Diamond Cutting Blade Saw for Manual and Automatic
Metallographic Cutting Machine Cutter

Brief Introduction:

Diamond blade is a saw blade which has diamonds fixed on its edge for cutting hard or abrasive materials. They have many uses, including cutting stone, concrete, asphalt, bricks, coal balls, glass, and ceramics in the construction industry;


cutting semiconductor materials in the IT industry;
and cutting gemstones, including diamonds, in the gem industry.

Technical Specifications:

Product Name Ultra thin Diamond cutting wheel
Application

High-Precision slotting and cutting for
optics crystal, glass, quartz glass,

quartz tube, Precision ceramic, carbide alloy,knife tools,
HSS, semi-conductor,magnetic materials etc.
Bond Material Metal, Resin etc. Blade Color Natural or Customized
Brand iqualitrol Payment T/T
Blade Material Diamond Package Carton box or Customized
Usage Dry & Wet Delivery 7-12 days after down payment

Specification

(Can be

customized)

 Diameter Segment Dimension
Inch mm Thickness Height
3.94" 100 0.3/0.5/1.0 12.7/31.75
4.92" 125 0.5/0.8/1.0 31.75/40
5.91" 150 0.5/1.0/1.8 2.0/31.75/40
6.89" 175 0.5-1.8 32
7.87" 200 0.6-1.1 22
9.84" 250 0.8-2.2 25.4/32
11.81" 300 1.0-2.2 25.4
13.78" 350 1.5-2.6/3 32
The actual size is according to millimeters
Advantages

1. High-Precision, large depth and narrow kerf

2. Smooth & fast cutting without chipping
3. Long life span and stable performance
4. Competitive price and superior quality

5. Safe package and fast delivery

6. Professional & excellent service
Production Technology Hot Pressed & Cold Pressed , Brazed, Laser Welded
MOQ 10pcs of each specification, Total need more than 50pcs

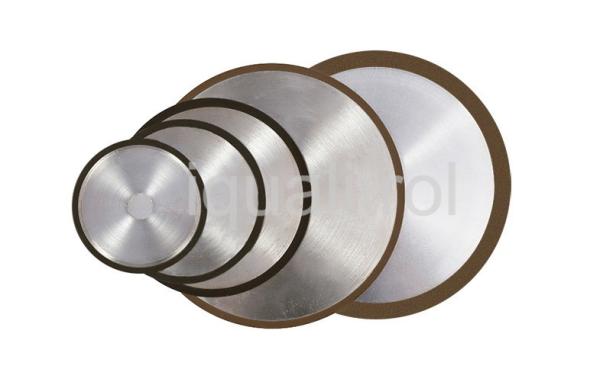

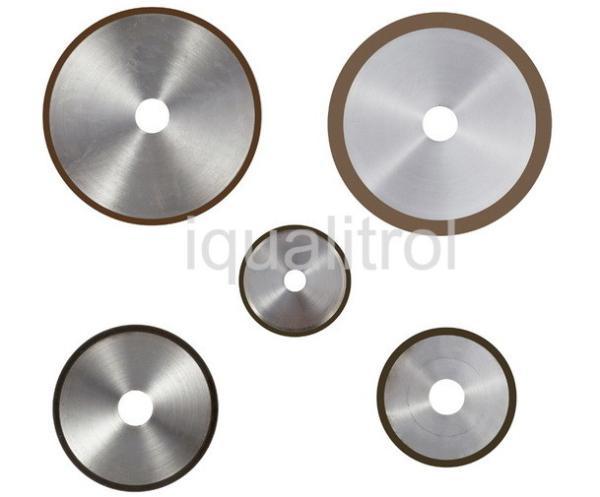

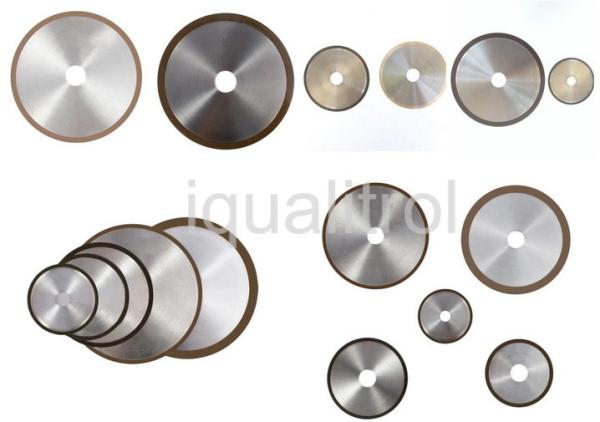

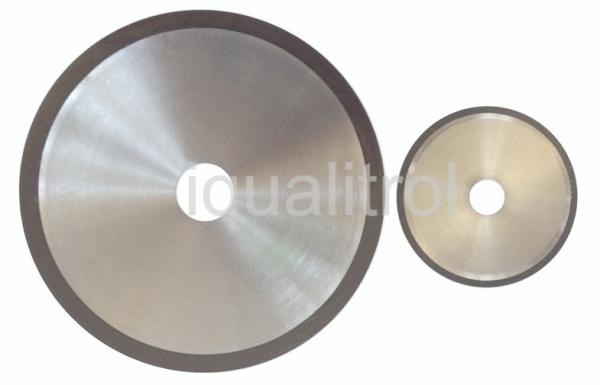

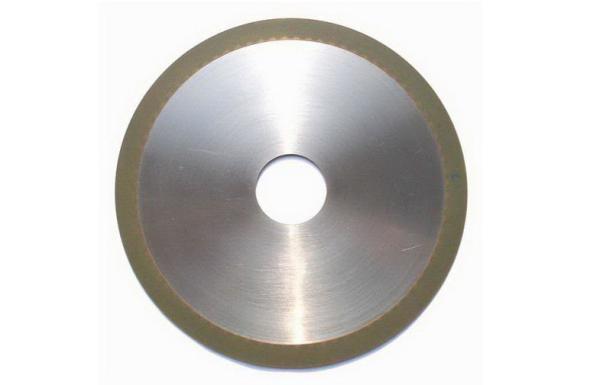

Dimensions of iqualitrol diamond blades:

100x20x0.5mm

200x32x1.0mm

When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.

One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.

Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.
