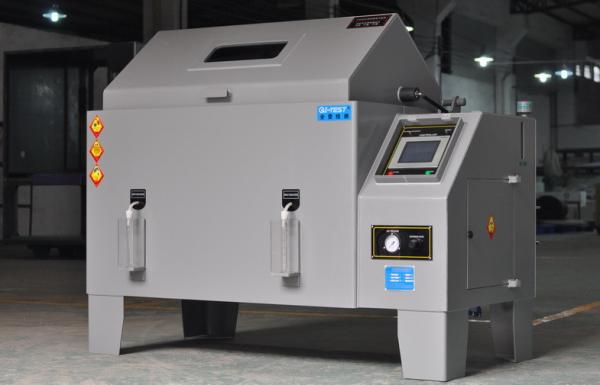

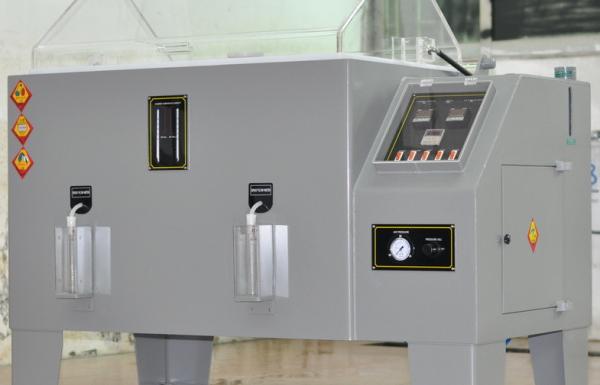

Touch Controller CASS Corrosion Resistance Salt Spray Test Machine

Technical Data Download:
iqualitrol Salt Spray Test Chamber AHL-90T

Brief Introduction:

The Copper Accelerated Acetic Acid Salt Spray (CASS) test, often referred to as the Salt Fogging Test, is used to simulate and evaluate the corrosive performance of decorative copper/nickel/chromium or nickel/chromium coatings on steel, zinc or aluminium alloys and plastics designed for severe service.

Technical Specifications:

Please note: AHL-60T and AHL-90T do not meet standard of ASTM B117

Note:

1. The above specifications are for reference only, the actual specifications for the main quotation.

2. Custom made is available according to customers’ special requirements.

The types of coatings that can be assessed through the copper accelerated acetic acid salt spray test include:

Phosphate surfaces (with successive primer, paint, rust preventive, lacquer)

Copper, tin, nickel, electroplated chromium

Zinc flake and other coatings that are not electrolytically applied

Zinc alloy and plain zinc plating

Organic coatings

This test is widely employed in industrial settings. It is very beneficial for replicated service evaluation, development and research as well as manufacturing control. Specifically, it is developed for electrodeposited, decorative chromium/nickel as well as chromium/nickel/copper.

Main Features:

1, Chamber material is made of P.V.C Sheet, sturdily and will not be out of shape.

2, Test chamber is heated from five directions to ensure the temperature is uniformity distributed.

3, Spray nozzle is specially made, enable to spray the salt water with considerable speed, then falls on the surface of samples.

4, Hot and moist air keeps the humidity in the test chamber conforms testing request.

5, High precision P.I.D. temperature controller limits the temperature difference within the range of ±0.1℃.
