Specifications
Brand Name :
iqualitrol
Model Number :
iVideo-E67
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
30 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Box
Accuracy :
≤3+L/200(um)
Video :
1/3” Color CCD Camera
Lens :
0.7～4.5x Detented Zoom Lens
Magnification :
30X～190X
illumination :
LED surface and contour illumination
Function :
Printing,saving and exporting data
Description

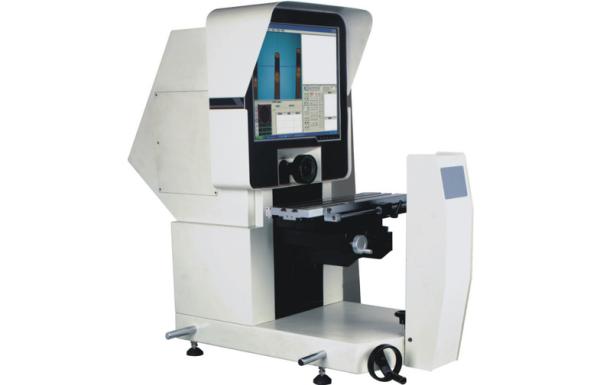

2D Horizontal Video Measuring Projector With 19" Touch Screen / Quickmeasuring 2.0 Software

Technical Data Download: iqualitrol Video Projector iVideo-E67

Features:
1, Solid framework,large LCD touch screen and advanced QM2.0 software;
2, High quality optics for crisp and clear images;


3, Adjustable LED surface and contour illumination;
4, High resolution industrial CCD camera;


5, 6.5X Detented zoom lens changeable within the range of 30-190x magnification.

6, Extended function of printing,saving and exporting data;


7, Excel or Word report output,and DXF input and output;
8, Non-contact optical height measurement;


9, Automatic edge-detecting function;

Technical Specifications:

Model

iVideo-E67

HTV-3015

iVideo-E68

HTV-3020
X/Z-axis Travel 300×150mm 300×150mm
Y-axis Travel 150mm 200mm
Accuracy ≤4+L/200(um)
Repeatablitily ±2um
Operation Mode Manual
Sway Range ±15”
Video Device 1/3” color CCD camera,6.5x Detented zoom lens
Screen Dimension 19” LCD Touch Screen Monitor
Video Magnification 30X～190X(it can extend to 15X～380X)
Working Distance 92mm
Measuring Software Quick Measuring 2.0
Max.Load Capacity 15Kg
Suitable Environment Workshop and metrology room
Dimension(D×W×H) 760×650×1760mm
Net Weight 200Kg

Standard Delivery:

Measuring Software Color CCD Camera Detented Zoom Lens
Calibration Block Capture Card LED Illumination
19” LCD Touch Screen Built-in PC System Operation Manual
