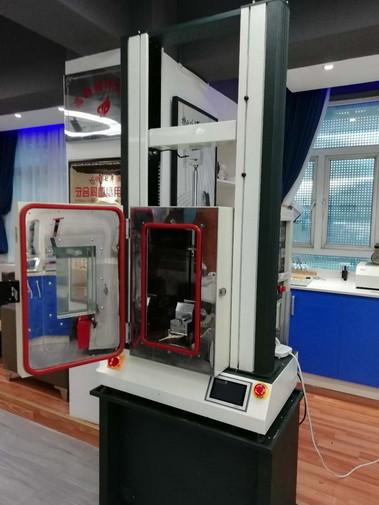

Oven Type Computer Control Servo Tensile Pressure Material Testing Machine

Brief Introduction:

iUTM-1167HXX oven type computer servo tensile/pressure testing machine adopts the latest design concepts and manufacturing technologies, the integration of precision oven and tensile testing machine as a new model.

It was designed to simulate the physical properties of various materials testing improved models in different environmental conditions, if install of high-low temperature test chamber on this machine, can be test the materials physical characteristics of tensile, pressure, shear at different temperature.

When using the normal temperature test, high-low temperature test chamber can be removed to increase the use of space and convenience.

This machine features powerful and easy to operate, perform GB, ISO, ASTM, BS, DIN, JIS and other national or international standards for testing, for all factories and enterprises, technical supervision departments, inspection agencies, research institutes and universities, etc. sector ideal test and research equipment.

Features:

1. Elegant design: Dynamic-type base supplemented by senior spray treatment of aluminum profiles column.

2. Precision transmission mechanism: Use high-precision, seamless ball screw and Timing belt as the guarantee accuracy of drive system.

3. Advanced control: Fully computerized data acquisition and motion control, powerful and easy to operate.

4. Powerful software features: The full open test software of Windows OS, Users can use the software to complete almost all the existing functionality mechanical test items, but also according to their actual needs to edit their own testing methods. Test results can be shared with the vast majority of Office and other office automation software.

5. Ultra-high precision: Better than force measurement accuracy of 0.5 degrees, 1/100,000 of the force value resolution, deformation measurement resolution up to 0.01mm.

Technical Specifications:
