Specifications
Brand Name :
iqualitrol
Model Number :
SM-200
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Box
Capacity :
Max 200KN
Force :
Accuracy ±1%
Resolution :
Force 1/300 000
Test Speed :
0.01-500mm/min
Speed Control :
Accuracy ±1% (0.01 10mm/min)
Test Space :
Max 700mm
Description

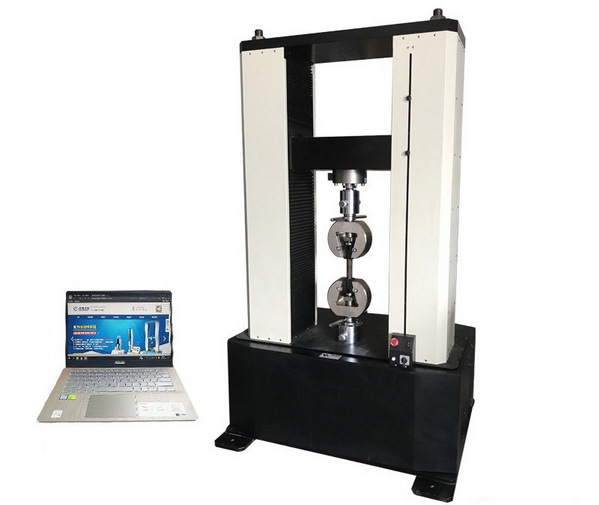

Computer Software Controlled Electronic Universal Material Testing Machine with Servo Motor

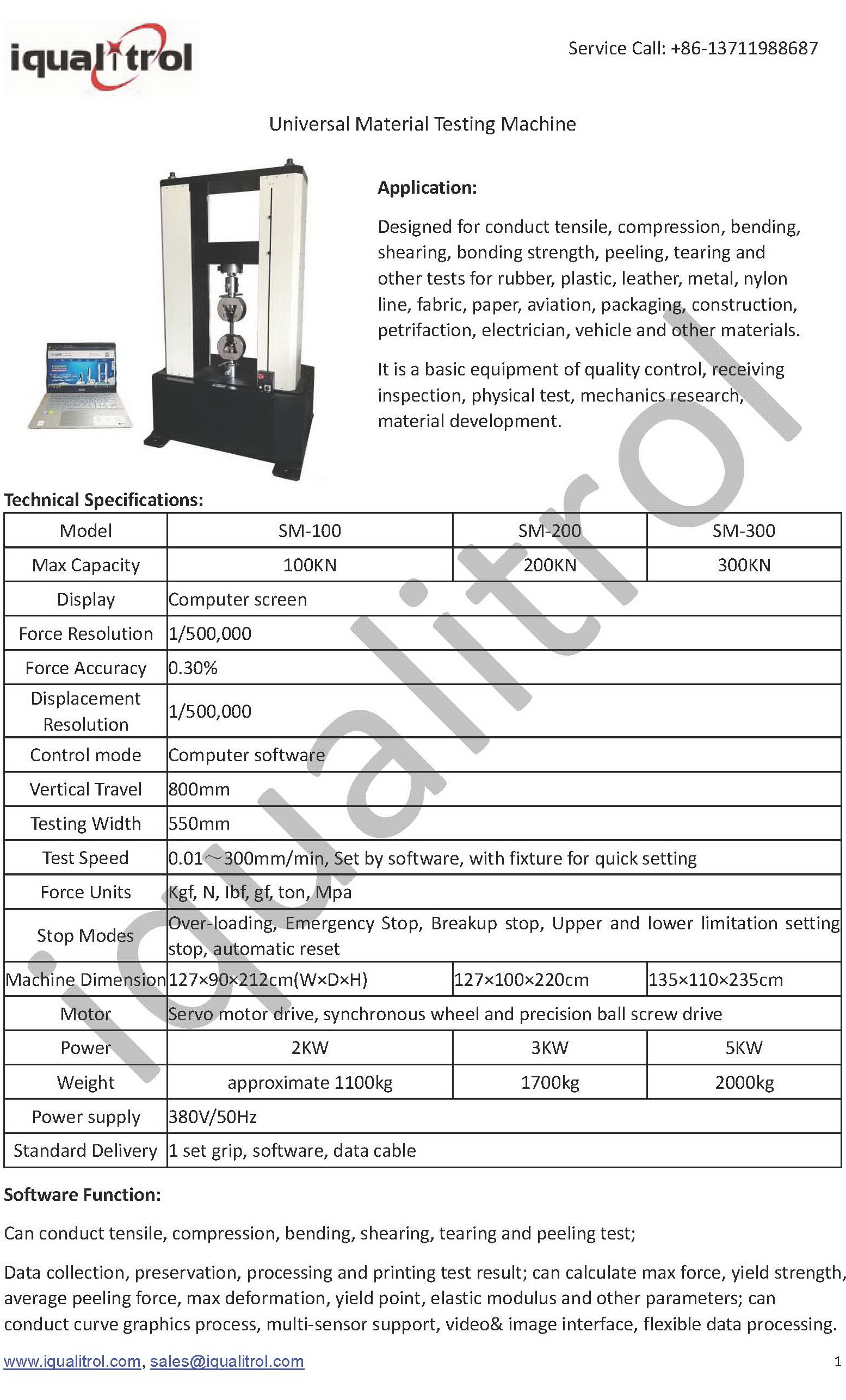

Technical Data Download: iqualitrol Universal Material Testing Machine

Brief Introduction:

iqualitrol SM-200 computer-controlled electronic universal testing machine is designed for universities, research institutes and design a new generation of computer-controlled electronic universal testing machine.

Computer system through the all-digital controller and servo motor rotation speed control system, the deceleration gear system by precision ball screw drive after moving beam up, down, complete specimen tensile, compression, bending, shear and other kinds of mechanical performance test, another test accompanied by a wide variety of configurations, in metal, nonmetal, compound materials and products in the mechanical performance test, has a very broad application prospects.

It is widely used in building materials, aerospace, machinery, wire and cable, rubber, plastics, textiles, household appliances and other industries of the material tests and analysis, scientific research institutions, universities, industrial and mining enterprises, technical supervision, inspection and arbitration departments ideal test equipment.

Technical Specifications:

Capacity Max available 200KN
Force Accuracy ± 1%
Force resolution 1/300 000 (6-speed full, regardless of file or equivalent)

Cross head

measurement

accuracy

 higher than 0.0025mm

Deformation

measurement

accuracy

 ± 0.5% (range of 0.2-10mm)

Test speed

range

 0.01-500mm / min, and stepless speed

Speed control

accuracy

 ± 1% (0.01 10mm/min); ± 0.5% (10 ~500mm/min)

Constant force,

constant deformation,

constant displacement

control range

 0.2% -100% FS
Test Space

A. stretching space: 600mm

B. compression space: 700mm
Pressure plate size Diameter 100 mm

bending supporting

roller spacing

 300 mm
Branch roll width 100mm
Fulcrum diameter 30mm
power supply AC380V ± 10%, 50Hz, Power: 3kW
Dimension 130 × 650 × 2650mm
Weight 2000Kg
