Specifications
Brand Name :
iqualitrol
Model Number :
VM-100
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
50 Sets per Month
Delivery Time :
5 Working Days
Packaging Details :
Carton Box
Output Power :
15W
Intensity of :
Ultraviolet Ray ≥16000uW/cm2
Irradiated Area :
at 38cm Distance 200mm
VM-100D :
Chargeable Battery
Lamp Lifetime :
Up to 20000 hours
Intensity of UV Ray :
More than 16000uW/cm2
Description

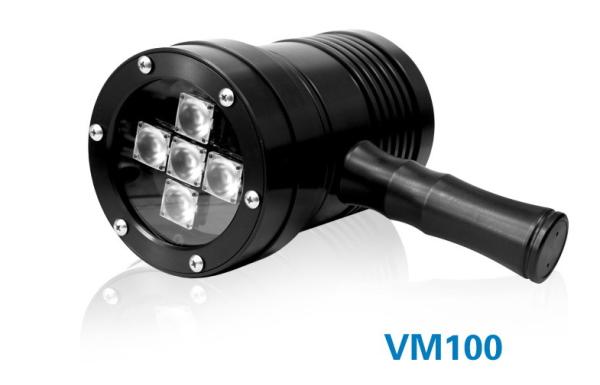

Dust and Water proof UV Lamp For Fluorescence Magnetic Particle Flaw Detection

Technical Data Download: iqualitrol Portable Ultraviolet UV Lamp VM-100

Brief Introduction:

1, High-power 365nm Ultraviolet band LED Lamp Beads produced by Japanese NICHIA company, free from UV-B and UV-C element,spectrum is pure.

2,The lifetime of Lamp beads reach up to 20000 hours, efficient, energy conservation and environmental protection.

3, High power output, quick start, can reach the maximum illuminance as soon as switched on.

4, Ultra-low power, ultra-high efficiency. Cold operated with cold light source, long term stability output the illuminance.

5, Optical filter is high UV transmittance transparent Quartz optical glass.

6, Both switches and charging port are at back of the device to avoid misoperation.

7, The shell of the instrument is made of high strength aluminium alloy 6061-T6 precision machining. The surface is anodized, sturdy and durable.

8, The built-in efficient cooling fin and low noise high speed fan dissipate the heat through aluminium alloy shell integrally.

9, Dedicated high-speed charger is equipped.

10, With anti magnetic interference function,it can be used in high-intensity magnetic field.

11, The product has passed through International Standard of IEC 60529 --Housing Protection Grade(IP66)--dust proof and waterproof testing, wider working environment and more reliable.

Application Range:

Fluorescence Penetrant Testing;
Fluorescence Magnetic Particle Flaw Detection;
Fluorescence Leak Detection.

Technical Specifications:

Model VM100 VM100D
Power Supply AC AC or Chargeable Battery Group
Lamp Bead Amount 5 5
Output Power 15W 12W
Intensity of Ultraviolet Ray at 38cm Distance ≥16000uW/cm2 ≥11000uW/cm2
Weight(including Battery) 1290g 1560g
Lamp Beads NICHIA 365nm Ultraviolet band LED Lamp Beads
Input Voltage 100-240VAC
Irradiated Area at 38cm Distance ￠200mm
Diameter of Light Inlet Window ￠88mm
Battery group specification Battery Model ICR 18650--2600mAh 3.7V
Number of Battery 2﹡4
Charging Time ≥4H
Working Hours ≥7H
Life Time Fully charge and discharge, 500 times
