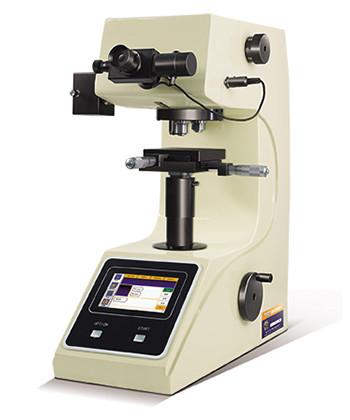

Manual Turret Digital Micro Vickers Hardness Tester Support Value Correction
Manual Turret Digital Micro Vickers Hardness Tester Support Value Correction
Specifications
Brand Name :
iqualitrol
Model Number :
HVS-1000
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Box
Turret :
Manual Turret
Eyepiece :
Digital 10X Eyepiece
Height :
Max Specimen Height 120mm
Throat :
Max Horizontal Space 110mm
X-Y Anvil :
Travel: 25×25mm
Standard :
ISO 6507, ASTM E384
Description

Manual Turret Digital Micro Vickers Hardness Tester Support Value Correction

Technical Data Download: iqualitrol Micro Vickers Hardness Tester HVS-1000

Technical Specifications:

Model HVS-1000
Test Force gf 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
N 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range 1HV~2967HV
Loading Method Automatic (Loading/Dwell/Unloading)
Turret Manual Turret
Conversion Scale HK, HRA, HRB, HRC, HRD, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW
Objective 10x (Observe), 40x (Measure)
Eyepiece 10x
Total Magnification 100x, 400x
Resolution 0.0625μm
Dwell Time 0~60s
Light Source Halogen Lamp
X-Y Test Table

Size: 100×100mm; Travel: 25×25mm;

Resolution: 0.01mm
Max. Height of Specimen 120mm
Throat 110mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Dimension 480×325×545mm, Packing Dimension: 600×360×800mm
Weight Net Weight: 31kg, Gross Weight: 44kg
