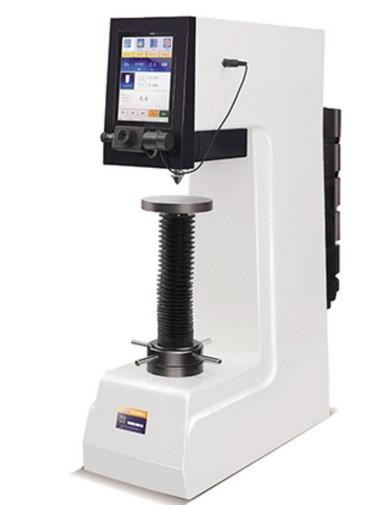

Weights Loading Touch Screen Brinell Hardness Tester HBS-3000T with Digital Eyepiece 20X
Weights Loading Touch Screen Brinell Hardness Tester HBS-3000T with Digital Eyepiece 20X
Specifications
Brand Name :
iqualitrol
Model Number :
HBS-3000T
MOQ :
1 Set
Supply Ability :
20 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Box
Model :
HBS-3000T
Loading :
Apply Weights
Display :
Touch Screen Display
Magnification :
20X
Throat :
Horizontal Space 165mm
Height :
Max Height of Specimen 280mm
Visual Measure :
CCD image processing system or video measuring device
Name :
Weights Loading Touch Screen Brinell Hardness Tester
Description

Weights Loading Touch Screen Brinell Hardness Tester
with Digital Eyepiece 20X

Technical Data Download: iqualitrol Brinell Hardness Tester HBS-3000T

Brief Introduction:

iqualitrol HBS-3000T touch screen digital display Brinell hardness tester, using 8-inch touch screen and high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed;

The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;

Convenient control system, which can automatically convert the unit of the full hardness scale;

Configure the printer, and output data through RS232 and USB interfaces;

Optional CCD image processing system or video measuring device;

The precision complies with GB/T231.2-2018, ISO6506-2 and American ASTM E10 standards.

Technical Specifications:

Model HBS-3000T

Range of

Measurement

 5-650HBW
Test Force

1838.8, 2415.8, 4903.5, 7355.3, 9807, 14710.5, 29421N

(187.5, 250, 500, 750, 1000, 1500, 3000kgf)
Maximum Height of Specimen 280mm
Distance between Indenter Center and Wall 165mm
Magnification 20X
Hardness Resolution 0.1HBW
Power Supply AC 220V,50Hz
Dimension 700*268*980mm
Weight 210kg
