Dial Gauge Nonmetal Plastic Rockwell Hardness Tester 2XHRD-150 Motorized Loading
Dial Gauge Nonmetal Plastic Rockwell Hardness Tester 2XHRD-150 Motorized Loading
Specifications
Brand Name :
iqualitrol
Model Number :
2XHRD-150
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Box
loading :
Motorized loading and unloading
Scales :
70-100HREW, 50-115HRLW, 50-115HRMW, 50-115HRRW
test force :
60, 100, 150kgf
vertical space :
200mm
throat depth :
160mm
Test standard :
American ASTM E18 standard
Description

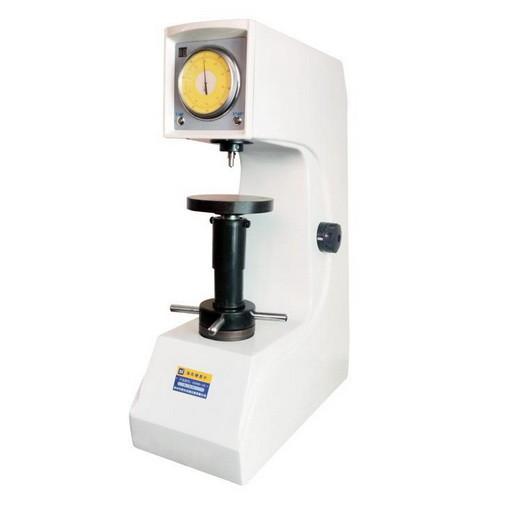

Dial Gauge Motorized Loading Nonmetal Plastic Rockwell Hardness Tester

Features:

1, iqualitrol 2XHRD-150 motorized loading plastic Rockwell hardness tester used to test hardness of non-metallic plastics, hard rubber, synthetic resins, friction materials and softer metals in laboratories and workshops. the loading, dwell and unloading of the test force is controlled by the motor, and the dwell time can be set;

2, The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;

3, Read the hardness values directly from the dial with resolution 0.5HR;

Adopt the Friction-Free spindle, high test accuracy;

4, The loading, dwell and unloading of the test force is controlled by motor;

Accuracy conform GB/T230.2, ISO6508-2 and American ASTM E18 standards.

Technical Specifications:

Model 2XHRD-150
Range of Measurement

70-100HREW, 50-115HRLW, 50-115HRMW,

50-115HRRW
Test Force 588.4, 980.7, 1471N (60,100,150kgf)
Maximum Height of Specimen 200mm
Throat depth 160mm
Hardness Resolution 0.5HR
Power Supply AC220V/50Hz
Dimension 510*290*730mm
Weight 75kg
