Electronic Brinell Hardness Tester With Measuring Microscope And Computer Brinell Software
Electronic Brinell Hardness Tester With Measuring Microscope And Computer Brinell Software
Electronic Brinell Hardness Tester With Measuring Microscope And Computer Brinell Software
Electronic Brinell Hardness Tester With Measuring Microscope And Computer Brinell Software
Electronic Brinell Hardness Tester With Measuring Microscope And Computer Brinell Software
Electronic Brinell Hardness Tester With Measuring Microscope And Computer Brinell Software
Electronic Brinell Hardness Tester With Measuring Microscope And Computer Brinell Software
Electronic Brinell Hardness Tester With Measuring Microscope And Computer Brinell Software
Specifications
Brand Name :
iqualitrol
Model Number :
HBE-3000S
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
100 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Box
Test anvil :
with mobile measuring platform
Test force :
10 levels of test force
safety device :
emergency stop device, conform with EU CE safety standard
Software :
computer measuring system, with high test speed and more measurement function
loading control :
high-performance stepper motor automatic loading
Structure :
cast iron, the structure is stable and not deformed
Description

Electronic Brinell Hardness Tester With Measuring Microscope And Computer Brinell Software

Brief Introduction:

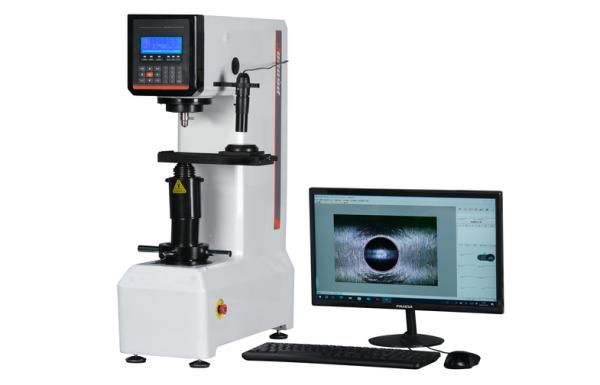

Iqualitrol HBE-3000S computer type electronic Brinell hardness tester adopts advanced electronic sensor loading technology. Through the closed-loop control system, the CPU controls the sensor to collect signals.

The stepping motor automatically loads and unloads the test force, and can automatically compensate the test force to ensure the force accuracy.

Equipped with mobile measuring platform and computer measuring system, with high test speed and more measurement functions, equipped with emergency stop device, conform with EU CE safety standards, with more reliable operation and safety.

HBE-3000S is widely used in factory workshops, universities, research institutes, laboratories, etc.

Technical Specifications:

Model HBE-3000S
Brinell scales HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100, HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Test force 62.5kgf (612.9N) 100kgf (980.7N) 125kgf (1226N) 187.5kgf (1839N) 250kgf (2452N) 500kgf (4903N) 750kgf (7355N) 1000kgf (8907N) 1500kgf (14710N) 3000kgf (29420N)
Load control Automatic (loading/loading/unloading)
Maximum height of the test piece 220mm
Length resolution 0.005mm
Dwell 0~60s
Hardness test range 8~650HBW
Total magnification 20X
Executive standards EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150
Throat depth 135mm
Indenter-upper wall distance 55mm (can increase the pressure from the indenter to the upper wall by customizing the indenter)
Hardness reading Direct measurement by computer software
power supply AC220V+5%, 50~60Hz
Dimensions 520*210*745mm
Net weight About 120kg

Features:

1. Equipped with precision sensor and CPU microcomputer control system, it can be automatically compensated, and the test result is accurate and stable;

2. With 10 levels of test force, the test range is wider;

3, equipped with a mobile measurement platform and computer measurement system, with high test speed and more measurement functions;

4, equipped with high-performance stepper motor automatic loading and unloading test force, the noise generated during the test process is lightly;

5. The shell is cast iron, the structure is stable and not deformed, and it can work under relatively harsh environment;

6. The surface is treated with automobile paint, which has strong scratching ability and is still bright and new for many years;

7. This machine is equipped with Brinell image measurement software to greatly improve work efficiency.
