Quick Operation Instant Vision Measuring System With FOV 80x60mm KS-YJ60A
Quick Operation Instant Vision Measuring System With FOV 80x60mm KS-YJ60A
Specifications
Brand Name :
iqualitrol
Model Number :
KS-YJ60A
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
10 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Model :
KS-YJ60A
FOV :
80x60mm
Accuracy :
±0.004mm
Brief Introduction :
CMMs
Measure time :
Less than 5 seconds (within 100 measurements)
Feature :
automatically recorded and generate reports
Description

Quick Operation Instant Vision Measuring Machine with FOV 80x60mm KS-YJ60A

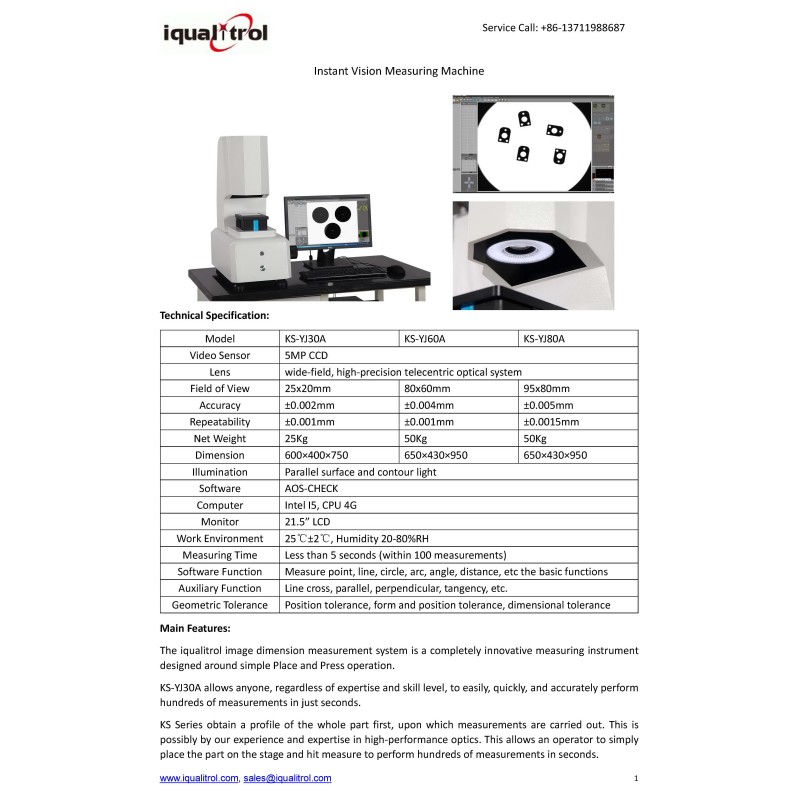

Technical Data Download:

iqualitrol Instant Vision Measuring Machine KS-YJ60A

Brief Introduction:

Optical comparators, measuring microscopes, and optical CMMs are popular as instruments that use images for measuring the dimensions of a target. These instruments capture an image of a target, identify the edges to be measured based on human vision (or automatic recognition), measure the movement of the XY stage, and obtain the dimensions of the target.

iqualitrol KS-YJ60A has advantages compare with conventional quality inspection instruments, it perform high precision measurements, automatically record data and generate report with the push of a button.

Features:

1, Measurement results are automatically recorded and generate reports. All measurement results and critical identifiers are automatically recorded to simplify data management, then calculates and displays critical statistical values.

2, The KS Series obtain an image of the part using its unique wide-field, high-precision telecentric optical system. The telecentric optical system features constant image size regardless of height differences, large depth-of-field for sharp focus at various heights, and no image distortion despite part placement on stage.

The edges (boundaries between bright and dark areas) of the captured image are accurately detected using our sub-pixel processing (to 1/100th or less of a pixel) upon which defined measurements are performed in seconds.

Technical Specification:

Model KS-YJ30A KS-YJ60A KS-YJ80A
Video Sensor 5MP CCD
Lens wide-field, high-precision telecentric optical system
Field of View 25x20mm 80x60mm 95x80mm
Accuracy ±0.002mm ±0.004mm ±0.005mm
Repeatability ±0.001mm ±0.001mm ±0.0015mm
Net Weight 25Kg 50Kg 50Kg
Dimension 600×400×750 650×430×950 650×430×950
Illumination Parallel surface and contour light
Software AOS-CHECK
Computer Intel I5, CPU 4G
Monitor 21.5” LCD
Work Environment 25℃±2℃, Humidity 20-80%RH
Measuring Time Less than 5 seconds (within 100 measurements)
Software Function Measure point, line, circle, arc, angle, distance, etc the basic functions
Auxiliary Function Line cross, parallel, perpendicular, tangency, etc.
Geometric Tolerance Position tolerance, form and position tolerance, dimensional tolerance
