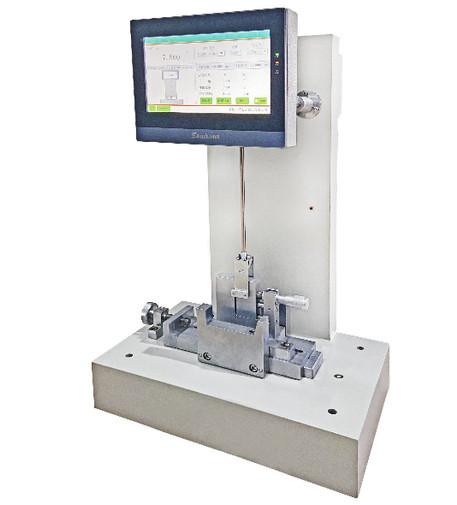

Pendulum Impact Tester For Non Metallic Materials With Impact Energy Charpy 25J

Brief Introduction:

iqualitrol XJC Pendulum Impact Tester is used to test the anti-impact intensity both in izod and charpy of engineering plastics, glass-steel, ceramics, casting stone, plastic wiring, insulating material, plastic pipe material and other non –metallic materials.

It has electronic controlling system which is much easier operated and the test result is calculated automatically.

iqualitrol XJC is innovative multi-test instrument for the determination of polymers and composite materials resilience according to both Charpy and Izod methods.

It is used to test or determine the anti-impact capacity of non-metal materials, such as hard plastic, enhanced nylon, ceramic, toughened glass, pottery, cast stone, dielectric etc. and other metallic and non-metallic materials.

Being adopted by scientific research institutes, colleges, universities and many non-metallic materials manufactures and laboratories.

Also, it has advantages of simple in structure, easy to operate and high accuracy. This machine is developed according to the standard of Standards ENISO179, ENISO180, ISO9854, DIN53453, ASTMD256 It also can be connected to the PC.

Test Standards:

ISO 179, ISO 180, ASTM D 256, DIN 53453, ISO 9854, DIN 12608.

Technical Specification:

1. Power: 220VAC 50Hz 0.1KW

2. Dimension (L*W*H): 500mm×350mm×800mm

3. NW: 200kg

4. Language: Chinese-English switchover

5. Charpy

(1) Impact speed: 0.5-5J: 2.9m/s；7.5J-50J: 3.8m/s

(2) Impact energy (J): 1, 2, 4, 5, 7.5, 15, 25

(3) Angle: 0.5-5J:97.4° 7.5J-25J: 160°

(4) Angle’s resolution: 0.09°

(5) Radius of curvature: 2mm±0.5mm

(6) Fillet radius: 1.0±0.1mm

(7) Blade Angle: 30°±1°

(8) Effective Length of Pendulum: 380 mm

(9) Support Spacing: 40mm, 60mm, 62mm, 70mm, 95mm

6. Izod

(1) Impact speed: 3.5m/s

(2) Impact energy (J): 1, 2.75, 5.5, 11, 22

(3) Angle: 160°

(4) Angle’s resolution: 0.09°

(5) Radius of curvature: 0.8±0.2mm

(6) Effective Length of Pendulum: 322 mm

(7) Support Spacing: 22mm±0.2mm
