Double Arm Drop Impact Tester Drop Test Machine For Packaging Products
Double Arm Drop Impact Tester Drop Test Machine For Packaging Products
Double Arm Drop Impact Tester Drop Test Machine For Packaging Products
Double Arm Drop Impact Tester Drop Test Machine For Packaging Products
Double Arm Drop Impact Tester Drop Test Machine For Packaging Products
Double Arm Drop Impact Tester Drop Test Machine For Packaging Products
Double Arm Drop Impact Tester Drop Test Machine For Packaging Products
Double Arm Drop Impact Tester Drop Test Machine For Packaging Products
Double Arm Drop Impact Tester Drop Test Machine For Packaging Products
Double Arm Drop Impact Tester Drop Test Machine For Packaging Products
Specifications
Brand Name :
iqualitrol
Model Number :
iSR-8520
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
10 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Model :
iSR-8520
size of specimen :
Maximum 1200 * 800 * 1000mm
Floor size :
1400 * 1200 * 10mm
Drop height :
range 400-1500mm
Test standard :
GB4757.5-84 JISZ0202-87 ISO2248-1972 (E)
Application :
assess the degree of impact of the package on the impact of the drop
Description

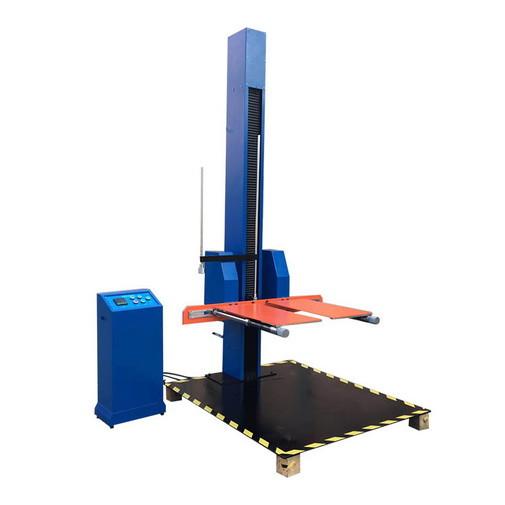

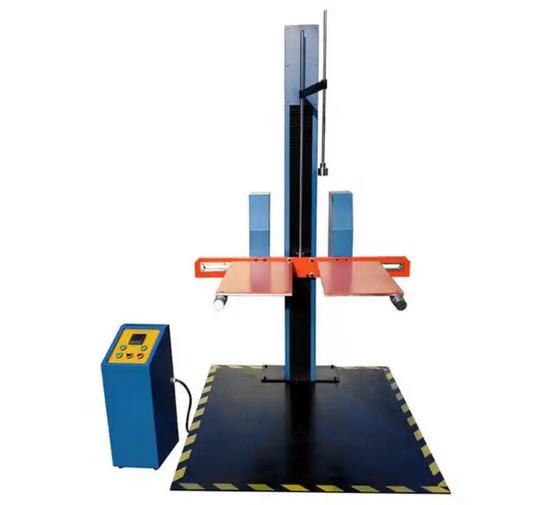

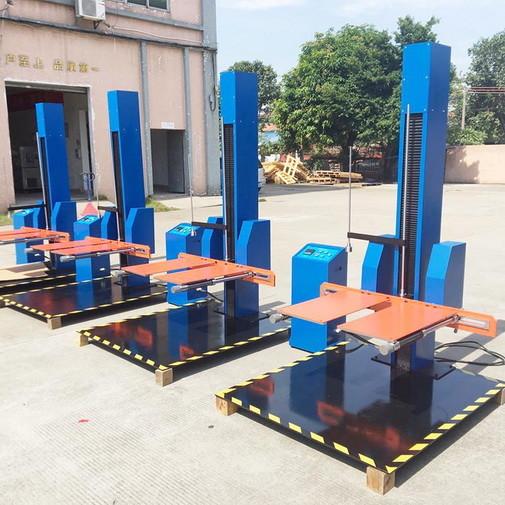

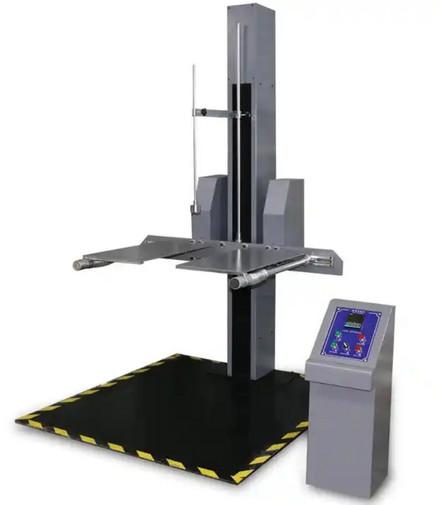

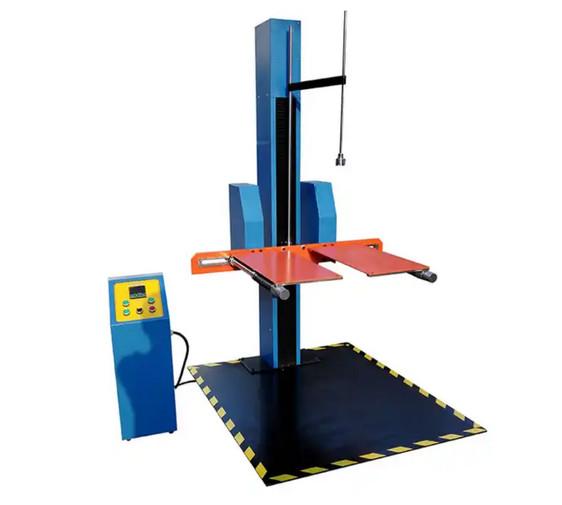

Double Arm Drop Impact Tester Drop Test Machine iSR-8520 for Packaging Products

Brief Introduction:

The dual-arm drop test machine is mainly used to assess the degree of impact of the package on the impact of the drop during actual transportation and loading and unloading, and to evaluate the impact strength and the rationality of the package design during the handling of the package.

Test Standard:

The double-arm drop tester complies with national standards such as GB4757.5-84 JISZ0202-87 ISO2248-1972 (E)

Technical Specifications:

Drop height: 400-1500mm

Maximum weight of test piece: 80kg

Height display mode: digital

Drop method: electric

Reset method: manual

Sample clamping method: diamond, angle, surface

Floor size: 1400 * 1200 * 10mm

Maximum size of specimen: 1200 * 800 * 1000mm

Test bed size: 1400-1200-2200mm;

Drop error: ± 10mm;

Drop plane error: <1 °

Net weight: 300kg

Control box: Separate vertical control box, using anti-static powder spray paint

Working power: 380V, 2 KW
