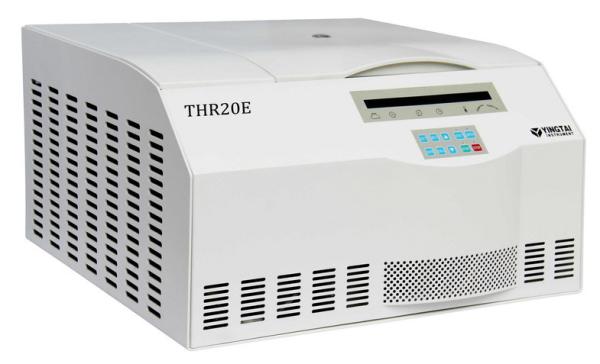

Brushless Frequency Motor High Speed Refrigerated Centrifuge THR20E Imbalance Sensor
Brushless Frequency Motor High Speed Refrigerated Centrifuge THR20E Imbalance Sensor
Specifications
Brand Name :
iqualitrol
Model Number :
THR20E
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
10 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Box
THR20E :
High Speed 21000rpm Refrigerated Centrifuge with low noise
Refrigerated centrifuge :
Pre-cooling design, 10 kinds of acceleration and deceleration
Advantage :
High speed, low noise, compact design and small vibration
LED display :
provides speed, time and temperature parameters
Brushless motor :
great torque, no powder pollution, free maintenance, quick in speed up and down;
centrifuge body :
made of high-quality steel, Imbalance sensor and over speed sensor
Description

Brushless frequency motor THR20E High Speed Refrigerated Centrifuge Imbalance sensor

Features:

1. Refrigerated centrifuge. Widely used for laboratory, chemistry and hospital.

2. Pre-cooling design, 10 kinds of acceleration and deceleration

3. More than 10 rotors for your choice

4. High speed, low noise, compact design and small vibration

5. User-friendly LED display provides speed, time and temperature parameters.

6. Brushless frequency motor which in great torque, no powder pollution, free maintenance, quick in speed up and down

7. Imbalance sensor and over speed sensor, the centrifuge body is made of high-quality steel, very safe.

Technical Specifications:

Max. Speed 21000rpm
Max. RCF 40320×g
Max. Capacity 4×800ml
Time Range 0~99h59min
RPM/RCF Convert Yes
Noise (dB) ≤ 55
Temperature -20℃-40℃
Acc/Dcc 10 Kinds
Speed Accuracy ±20r/min
Temperature Accuracy ±1℃
Voltage(V/Hz) AC 220V/110V 50HZ/60HZ
Size (W x D x Hmm) 700×715×420mm
Net Weight(Kg) 125KG
Certificates CE,ISO & Calibration report are available

Matched Rotors for THR20E:

Order No. Rotor No. Max Speed (rpm)

Max Volume

(ml)

 Max.RCF(×g)
NOH30801 Angle Rotor 21000 12×1.5/2ml 30910
NOH30844 Angle Rotor 16000 48×1.5/2ml 27170
NOH30803 Angle Rotor 20000 24×1.5/2ml 36630
NOH30804 Angle Rotor 16500 30×1.5/2ml 28890
NOH30805 Angle Rotor 20000 16×5ml 34400
NOH30808 Angle Rotor 20000 12×10ml 40320
NOH30807 Angle Rotor 15000 12×15ml(falcon) 26650
NOH30810 Angle Rotor 20000 6×30ml 38900
NOH30811 Angle Rotor 18000 6×50ml(Round) 35920
NOH30812 Angle Rotor 18000 4×85ml 36310
NOH30813 Angle Rotor 12000 4×250ml 20450
NOH30814 Angle Rotor 10000 6×300ml 15730
NOH30815 Angle Rotor 12000 4×300ml 21560
NO30671 Swing Rotor 4700

4×800ml

(Round Cup)

 4770
NOH31494 Microplate Rotor 5000 4×4×96 Well 4590
NOH31491 4000 2×4×96 Well 3210
NOH31376 4000 2×3×48 Well 2300

NO30690

 Swing Rotor 4000 4×40×7ml 3270
4×40×5ml 2890
4×18×10ml 3130
NO30607 Swing Rotor 15000 4×5ml 19920
NO30611 Swing Rotor 12000 4×30ml 20090
NO30640 Swing Rotor 10000 4×50ml 16240
