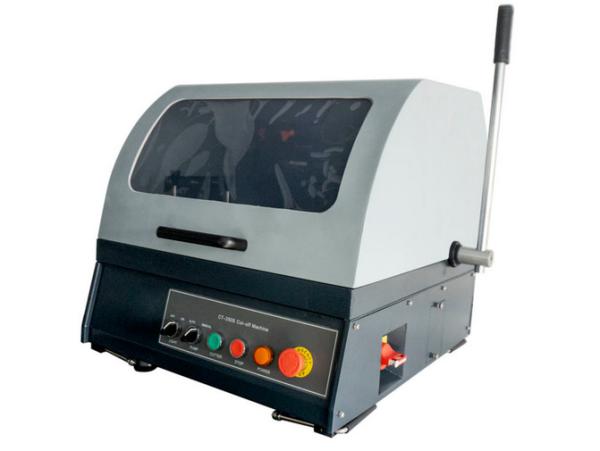

iqualitrol Manual Metallographic Cut-Off Machine With Fixed Speed 2800rpm MC-250
iqualitrol Manual Metallographic Cut-Off Machine With Fixed Speed 2800rpm MC-250
iqualitrol Manual Metallographic Cut-Off Machine With Fixed Speed 2800rpm MC-250
iqualitrol Manual Metallographic Cut-Off Machine With Fixed Speed 2800rpm MC-250
Specifications
Brand Name :
iqualitrol
Model Number :
MC-250
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
10 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Model :
MC-250
cut-off blade :
250mm /10 inch diameter
Cut mode :
Manually chop cutting
cooling system :
Water cooling 60L tank
Features :
Rugged and reliable with low noise
View Window :
high-brightness lighting system
Description

Manual Metallographic Cut-Off Machine with fixed speed 2800rpm MC-250

Technical Data Download:
iqualitrol Metallographic Manual Cutting Machine MC-250

Features:

1. Manually chop cutting, operation easily;

2. Omron electronic switch accessories, safe and reliable;

3. Huge observation window & high-brightness lighting system makes to observe the cutting process;

4. Super cooling system make sure the sample won’t burning during cutting;

5. The separate water tank and filter system can collect the swarf easily and Extend the life of the cut-off machine;

6. Rugged and reliable with low noise.

Application:

Ferrous metal, non-ferrous metal;

Castings, heat treatment samples, forgings;

Semiconductor, ceramics (with special cut-off wheels);

Other metal and non-metal materials.


Technical Specifications:

Model MC-250
Max. Dia Φ250 mm
Cutting Capacity Φ80 mm
Feeding Mode Manual
Dimension of Table 210*230 mm
Power 2.2 KW
Power supply 3x380V/50Hz Standard
(220,440,480V/60Hz Option)
Wheel Speed 2800rpm
Weight 100 kg
Dimension W*D*H

664*684*621mm (Close),

664*898x829mm (Open)
Volume of the tank 60L
Dimension of the tank 620x420x520mm

iqualitrol Manual Metallographic Cut-Off Machine With Fixed Speed 2800rpm MC-250
