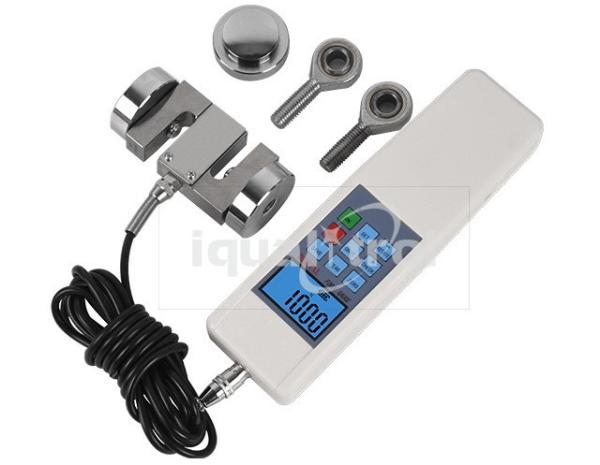

Rechargeable Battery Peak Holding Digital Force Gauge with Dual Units Display
Rechargeable Battery Peak Holding Digital Force Gauge with Dual Units Display
Rechargeable Battery Peak Holding Digital Force Gauge with Dual Units Display
Rechargeable Battery Peak Holding Digital Force Gauge with Dual Units Display
Rechargeable Battery Peak Holding Digital Force Gauge with Dual Units Display
Rechargeable Battery Peak Holding Digital Force Gauge with Dual Units Display
Rechargeable Battery Peak Holding Digital Force Gauge with Dual Units Display
Rechargeable Battery Peak Holding Digital Force Gauge with Dual Units Display
Specifications
Brand Name :
iqualitrol
Model Number :
HF-2000
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
10 Working days
Packaging Details :
Carton Box
Peak Load :
2000N
Force :
Resolution 1N /0.1kg/ 0.1lbs
Indication error :
+/-1%
Unit :
N / (KN), kg / (Mg or t), lb (KIb)
Data interface :
RS232 Cable
Power :
Rechargeable battery
Description

Easy operate Digital force gauge with Peak holding with two kinds of unit dual show

Brief Introduction:

The NK, NLB, ALB series are dial force gauge with compact size and high accuracy.

They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile,building windows and doors, compound materials, electric wire and cable, auto part, power generator,scientific research institute to do the push pull force insertion force and destructive experiment.

Features:
1. With easy operate and can be installed with all kinds of test stand and clamp.
2. Peak holding function and continuous.


3. One year free maintenance.
4. Compact and artistic packing, easy to transit and stock.


5. Two kind of unit dual show at the same time,don't need unit conversion.
6. NK Series: Newton and Kilogram dual unit


7. NLB Series: Newton and Pound dual unit
8. ALB: Pound and Kilogram dual unit.
9. Needle indicates, easy to read, high accuracy

Technical specification sheet of force gauge with external sensor:

Model specifi-cation HF-2000 HF-5000 HF-10K HF-20K HF-50K HF-100K HF-200K HF-500K HF-1000K
Peak load value 2000N 5000N 10KN 20KN 50KN 100KN 200KN 500KN 1000KN
load division value 1N 1N 0.01KN 0.01KN 0.01KN 0.1KN 0.1KN 0.1KN 1KN
0.1kg 0.1kg 0.001kg 0.001kg 0.001kg 0.01kg 0.01kg 0.01kg 0.1kg
0.1lbs 0.1lbs 0.001lbs 0.001lbs 0.001lbs 0.01lbs 0.01lbs 0.01lbs 0.1lbs
Indication error ±1% ±1%
Unit N / (KN), kg / (Mg or t), lb (KIb)
Data interface RS232 nine-hole socket
Power rechargeable batteries, charger(charging voltage 100V-240V)
Sensor structure S-tye or column sensor with high precision (external sensor)
Ambient tempe-rature 5° C~35° C
Transport tempe-rature -10° C~60° C
Relative humidity 15%~80%RH
Working conditions No hypocenter and corrosive medium
Gross weight 6 kg 9 kg 24 kg 36 kg
Size 280 x 200 x 170 mm 310 x 260 x 190 mm

Model specification HF-2000K HF-3000K
Peak load value 2000KN 3000KN
load division value 1KN
0.1Mg
0.1Klb
Indication error ±1%
Unit N / (KN), kg / (Mg or t), lb (Klb)
Data interface Rs232 nine-hole socket
Power rechargeable batteries, charger(charging voltage 100V-240V)
Sensor structure S-type or column sensor with high precision (external sensor)
Ambient temperature 5° C~35° C
Transport temperature -10° C~60° C
Relative humidity 15%~80%RH
Working conditions No hypocenter and corrosive medium
Gross weight 36 kg
Size 310 x 260 x 190 mm

Features:

High accuracy & High resolution: Accuracy : ±0.5% Min resolution : 0.001N;

Peak holding and auto-releasing function: Catching and holding the peak value in test, the peak holding time can be set(1-10 seconds);

Comparing function: Initial input of the tolerance limit(Max/Min)enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);

Units conversion: Converting three units(N, kgf, ibf) automatically;

Memory function: Memory 10 testing data, and calculate the average;

LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction;

Automatic power off function: Power off time (1-60minutes) can be set by yourself;

RS-232C output: Transmitting the data to Printer or computer, saving it into "Excel" for analysis or printing;

Technical Specification:

Product model SH-100
Capacity 100N
Load Resolution 0.05N
Sensor Conformation Sensor Inside
Measuring range 10%-100%FS
Inaccuracy Within ±0.5%
Power 8.4V 1.2V*7 Nickel hydride battery
Charging time About 4 hours
Operating time About 40 hours
Waiting time About 3 month
Battery life ≥300times
Adapter

Input: AC 220V 50Hz

Output: DC 12V 300mA
Weight About 0.9kg

We can make and manufacture products according to customer specific needs.

provide best and professional service for you, pls contact with us freely;

Usage field: laboratory products

Product name: SH-100 Force Gauge
