Specifications
Brand Name :
iqualitrol
Model Number :
AC-100
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Section :
Max 100mm (80mm for AC-80)
Speed :
Rotation Speed 2100rpm
Disc Dia. :
Φ350 x2.5 x32mm
Power :
2.5KW, AC380V/50HZ/3Ph
Feed Speed :
1-10mm/min
Table :
Dimension 310mm x280mm
Description

AC-100/AC-80 Recycle Water Cooling Automatic
Metallographic Cutting Machine Motor Speed 2100rpm

Technical Data Download: iqualitrol Automatic Metallographic Cutting Machine AC-100

Operation Manual Download: iqualitrol Operation Manual Cutting Machine AC-100

Brief Introduction:

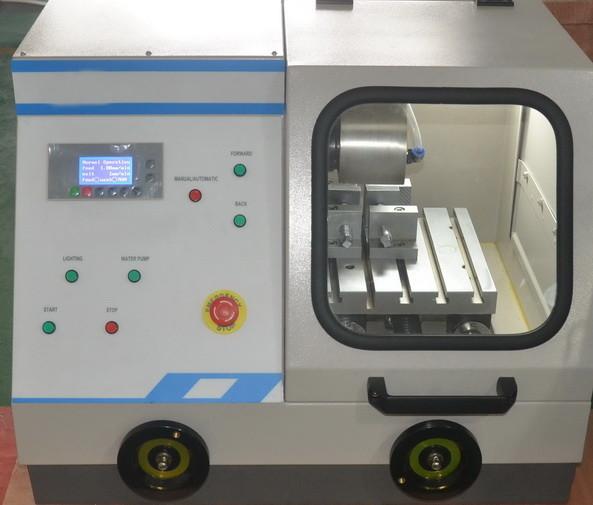

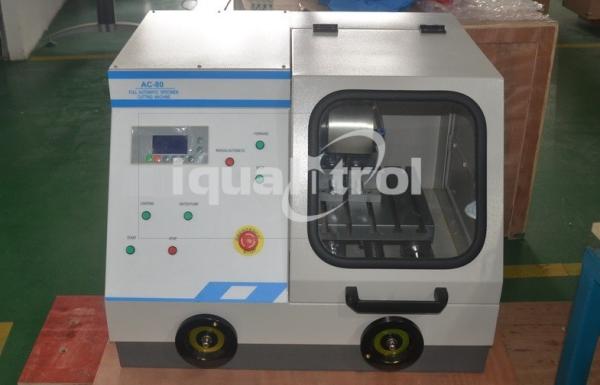

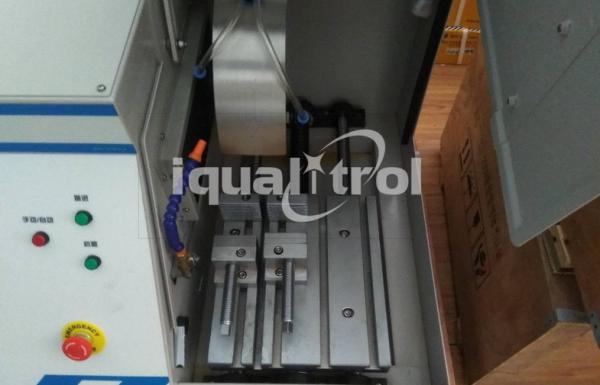

Model iqualitrol AC80, AC100 Auto cutting machine is composed of main machine, electric control box, cutting room, motor, cooling system, cutting grinding wheel and other parts.

The cutting machine can cut not only diameter of 100mm cylinder work-piece, but also can cut rectangular specimens within the cutting of height 70mm, depth 100mm.

Cooling system to prevent overheating and burning during the cutting process. Cutting speed can be preset in accordance with the different specimen so as to improve the quality of cutting samples.

Support manual cutting and automatic cutting. It is more convenient for users because of large cutting chamber.

Technical Specification:

Model AC-80 AC-100
Input voltage AC380V/50HZ/3Ph; AC220V/60HZ/3Ph
Wheel speed 2100rpm 2100rpm
Cutting wheel size Φ350 x2.5 x32mm Φ350 x2.5 x32mm
MAX cutting diameter Φ80mm Φ100mm
Max moving travel 125mm 125mm
Max working table travel 275mm 275mm
Motor: 2.5KW 3.3KW
Feed speed 1-10mm/min 1-10mm/min
Working table size 310mm x280mm 310mm x280mm
Dimension 835 x850 x620mm 900 x850 x620mm
Machine net weight 180kg 200kg
Tank net weight 25kg 25kg
