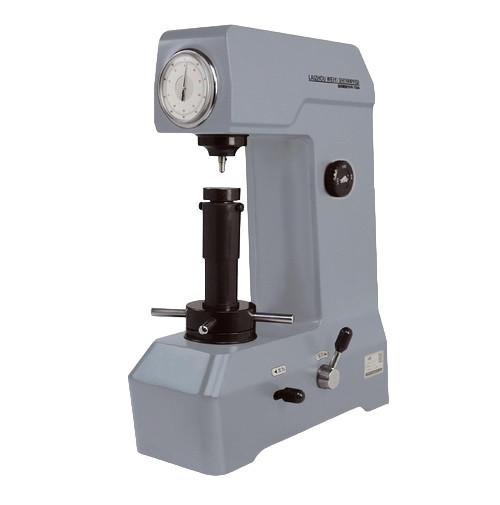

High Accuracy Manual Loading Rockwell Hardness Tester iRock-430HW with Dial Reading
High Accuracy Manual Loading Rockwell Hardness Tester iRock-430HW with Dial Reading
Specifications
Brand Name :
iqualitrol
Model Number :
iRock-430HW
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Box
Range :
HRC: 0~100; HRB: 30~130
Resolution :
0.5HR
Loading :
Manual Loading Control
Throat :
128mm
Description

High Accuracy Manual Loading Rockwell Hardness
Tester with Dial Reading

Technical Data Download: iqualitrol Rockwell Hardness Tester iRock-430HW

Brief Introduction:

iRock-430HW Rockwell hardness tester is a popular-used hardness testing instrument to measure the hardness of the metal materials.

No need power supply, the speed of the test force loading is regulated by the buffer and the test force is regulated by the load-change hand wheel. It has easy operation and stable performance, therefore it is widely used.

Application Range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.

Technical Specification:

Model iRock-430HW
Initial Test Force 10kgf (98.07N)
Total Test Force 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method Manual
Hardness Reading Dial Reading
Resolution 0.5HR
Max. Height of Specimen 175mm
Throat 165mm
Execute Standard ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Dimension 520×255×700mm, Packing Dimension: 650×370×950mm
Weight Net Weight: 80kg, Gross Weight: 100kg

Standard Delivery:

Name Qty Name Qty
Instrument Main Body 1 set Diamond Rockwell Indenter 1 pc
ф1.588mmBall Indenter 1 pc Middle Plane Test Table 1 pc
Large Plane Test Table 1 pc V-shaped Test Table 1 pc
Hardness Block 60~70 HRC 1 pc Hardness Block 20~30 HRC 1 pc
Hardness Block 80~100 HRB 1 pc Level 1 pc
Screw Driver 1 pc Weight 1, 2, 3 3 pcs
Anti-dust Cover 1 pc Horizontal Regulating Screw 4 pcs
Usage Instruction Manual 1 copy Spanner 1 pc
