Specifications
Brand Name :
UVIR
Model Number :
GPH793T5L/HO
Certification :
CE
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
15-20 Work day
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box.
Overall Lenght :
793mm
Color of end :
White
Type :
4PIN Germicidal lamp
Base Type :
T5
Use life :
10000-13000h
Current :
800mA
Application :
Home, Hotel, Office, Hospital
Description

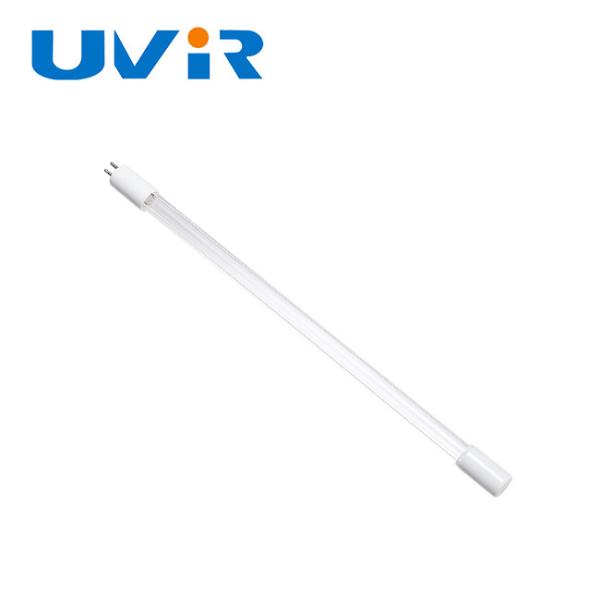

GPH793T5L/HO 72W High output type 4pin 550mm 28W 4pin halogen quartz glass far-uv uvc water lamp sterilizer

Why choose us


1. Lamps are approved by CE and RoHS.

2. Implement strict quality system according to ISO9001.

3. All lamps are tested one by one before delivery out from our factory.

4. You will get 1 year warranty for our UV lamps,free replacements or repairment service if they fail to work during warranty period.

5. Punctual delivery time, samples order delivery within 5 working days, bulk order delivery within 25 days.

6. Dependable after sales service

7. ODM and OEM service.

8. Low MOQ limitation

9. 7*24service, any of your questions will be replied within 24 hours

About Germicidal Lamp


Ultraviolet technology has been one of the most effective methods of water treatment and air purification.UV germicidal lamp isthe ideal solution for water disinfection application in a safe way,without using any chemicals.

1.Four-Pin, single ended UV germicidal lamps.

2.Made of high quality quartz.

3.Average lamp life is 10,000 hours.

4.Ozone-free lamps (254nm) and ozone-generating lamps (185nm) are for choice.

GPH793T5L HO Far Uvc Lamp 72W 550mm 28W Halogen Quartz Glass

Product information

Product name

4 PIN Double End For UV germicidal lamp

Model NO.

GPH793T5L/HO

Overall Length

793mm
Watt 72W
Diameter 15mm
Ultraviolet intensity
at 1 meter

210uw/cm2
24W

Current 800mA
Liftime 10000-13000hrs

High-efficiency sterilization lamp Regular use can effectively reduce the growth of bacteria and mites, recommended 2-3 times a week, 30-60 minutes one time.

GPH793T5L HO Far Uvc Lamp 72W 550mm 28W Halogen Quartz Glass

HIGH OUTPUT

HO is the High output type. By increasing the filament, Change the inflation, and increasing the current, etc., the power of the lamp can be increased with out lengthening the lamp.

GPH793T5L HO Far Uvc Lamp 72W 550mm 28W Halogen Quartz Glass

Tube Diameter:T5=15mm

GPH212T5L/HO 4pin 212 18 15 23 19 800 50 5
GPH287T5L/HO 4pin 287 27 15 34 24 800 75 7.5
GPH357T5L/HO 4pin 357 32 15 40 30 800 95 10
GPH436T5L/HO 4pin 436 48 15 70 60 800 120 13
GPH793T5L/HO 4pin 793 72 15 90 76 800 210 24
GPH846T5L/HO 4pin 846 80 15 127 113 800 260 28
GPH893T5L/HO 4oin 893 90 15 135 120 800 270 30

GPH1148T5L/HO

4pin 1148 120 15 166 154 800 310 30
GPH1554T5L/HO 4pin 1554 145 15 220 195 800 400 45

Tube Diameter:T6=19mm

GPH846T6L/HO 4pin 846 80 19 130 115 1000 280 30
GPH1148T6L/HO 4pin 1148 120 19 185 170 1000 340 38
GPH1554T6L/HO 4pin 1554 150 19 230 200 1000 400 45


Application


a) Residential water and air purification, like in the kitchen and air duct, to bring you clean water and clear air;

b) Industrial water and air sterilization, such as treated water for pool and fish tank, purified air for hospital and laboratory;

c) Professional field like waste water treatment, to avoid sewage pollution and improve water utilization efficiency, then make the earth a better place for our children.

GPH793T5L HO Far Uvc Lamp 72W 550mm 28W Halogen Quartz Glass

Precautions


Ultraviolet rays can cause burns to the eyes and skin. When the product starts,people and animals plant must leave the scene to avoid direct view UV rays!

After use the end, it is recommended to ventilate for 30-45 minutes!

FAQ


Q1: Are you factory or trading company?

A: We are trading company with factory.

Q2: Can I have a sample first before bulk order?

A: Yes. We offer you free sample to test the quality, you only undertake the freight.

Q3: What's your delivery date?

A: 5-7 working days for samples and 15-25 days for bulk order.

Q4: What's your shipping ways?

A: 1. By Express: TNT, DHL, FedEX, UPS, EMS, etc... Door to door

2. By Air: Please let us know your airport.

3. By Sea: Please let us know your delivery port.

Q5: What's your MOQ?

A: Our MOQ is 100pcs. First order as samples can be less than 100 pcs.

Q6:Are the products safe enough?

Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations
