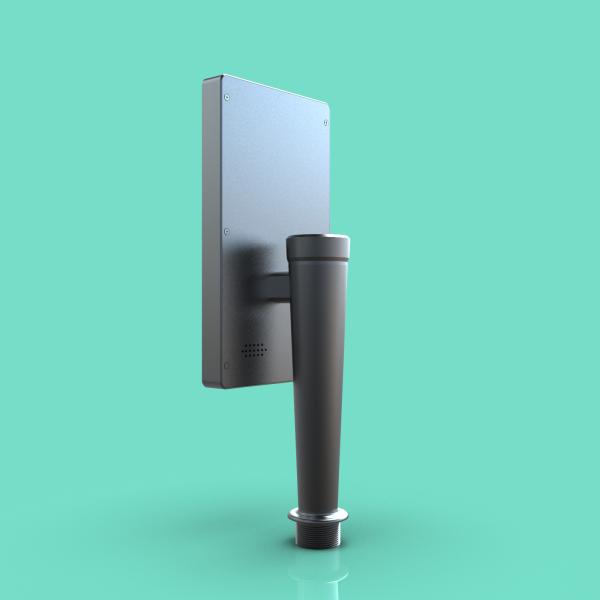

JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader
Specifications
Brand Name :
Shi Zun
Model Number :
JP181
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
8 inches
Payment Terms :
T/T
Operating System :
Optional RK 3568/3288, Quad-core CPU, 2.0/1.8 GHz, Android 11/7.1 versions
Configuration :
2GB RAM + 16GB storage
LCD Screen Size :
8 inches
Screen Resolution :
800*1280, R/L 178° full viewing angle
Touch Screen :
10-point capacitive touch
Brightness :
500 cd
Camera :
Dual-lens 2MP high-definition pixels, wide dynamic range, supports liveness detection, shooting distance 0.4-2 meters
Tri-color Fill Light :
Green, Red, White
Speaker :
8Ω 3W
Microphone :
Supported
Card Reader :
Optional IC/ID/Second-generation ID card
Operating Parameters :
Voltage 12V, Current 3A, Operating temperature -20～70℃, Humidity 5～90% RH
External Interfaces :
1 USB/OTG, 1 RJ45, 1 relay output, 1 power input, 1 Wiegand, 1 RS232/485
Surface Material :
Tempered glass cover on the front
Body Craftsmanship :
CNC precision-carved aluminum alloy with oxidation finish
Installation Method :
Wall-mounted
Color :
Black + Silver
Description

JP181 8-Inch Dual-Lens WDR Camera Pedestrian Turnstile Access Control Device with Card Reader

Introduction:
This product is an 8-inch attendance and access control terminal designed for factories, enterprises, and organizations for facial recognition attendance and access control. It can be used standalone or connected to a network.

Features:

  1. Android 11 System
  2. 2GB RAM and 16GB Storage
  3. Fast and Accurate Recognition: Completes facial recognition in as fast as 0.2 seconds with an accuracy rate of over 99%; supports recognition distances of 0.5m-3.0m.
  4. Aerospace-Grade Aluminum Alloy Integrated Body: High durability, superior strength, and long-lasting performance.
  5. Easy Installation: Plug-and-play functionality for convenient use, supports both wireless and wired connections.
  6. Large Recognition Database: Supports a local personnel database of up to 50,000 individuals.
  7. Protection Rating: Dustproof and waterproof with an IP65 rating.
  8. Operating Temperature Range: -25°C to +75°C.
  9. Standardized Interfaces: Supports Wiegand protocol for the access control industry and API interface for third-party system integration.
  10. Automatic Exposure Adjustment: Adapts to various lighting conditions, including strong light, low light, and backlight, ensuring precise recognition.
  11. Three-Color Indicator Lights: Available in white, green, and blue.

Parameter:

Operating System: Optional RK 3568/3288, Quad-core CPU, 2.0/1.8 GHz, Android 11/7.1 versions Configuration: 2GB RAM + 16GB storage
LCD Screen Size: 8 inches Screen Resolution: 800*1280, R/L 178° full viewing angle
Brightness: 500 cd Camera: Dual-lens 2MP high-definition pixels, wide dynamic range, supports liveness detection, shooting distance 0.4-2 meters
Speaker: 8Ω 3W Card Reader: Optional IC/ID/Second-generation ID card
Operating Parameters: Voltage 12V, Current 3A, Operating temperature -20～70℃, Humidity 5～90% RH External Interfaces: 1 USB/OTG, 1 RJ45, 1 relay output, 1 power input, 1 Wiegand, 1 RS232/485
Surface Material: Tempered glass cover on the front Installation Method: Wall-mounted
