Specifications
Model Number :
F3X Board
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Packaging Details :
145mm* 80mm* 9mm
Brand Name :
Shi Zun
CPU :
Rockchip RK3288 quad-core Cortex-A17@1.6GHz
GPU :
Quad-core Mali-T764
System Memory :
2GB(or 4GB optional) LPDDR3
Storage :
16GB eMMC (128GB Max)
MIPI-DSI :
31-pin FPC MIPI-DSI interface/ 1920x 1200 resolution
LVDS :
30-pin Dual LVDS interface, up to 1080p resolution
EDP :
Dual- EDP interface, up to 1080p resolution
Audio Line Out :
Left/ Right channel output
Mic :
Single-ended input
Power Amplifier :
8 ohms, 10W dual audio power amplifier output
USB Host :
USB 2.0 ports (2 Ext.+ 4 Int.+2 port expansions)
USB OTG :
1x OTG port
TF Card :
Push-push type TF card slot (128GB Max)
Serial Port :
1xTTL/RS-232/RS-485, 3xTTL/RS-232
RTC :
Low power RTC with a CR1220 battery
I2C :
1x 12C pin header
Backlight :
Backlight control interface that turns the backlight on/ off and adjusts the brightness level
GPIO :
5 x GPIO ports
IR :
IR pin header
Button :
Burn key and power/ reset pin header
Indicator Light :
Standby/ network connectivity/ run tri-color indicator lights
Ethernet :
10/ 100Mbps adaptive Ethernet port
WI-Fi :
802.11 b/ g/ n
Bluetooth :
BT V4.0
4G/3G :
1x Mini PCle port; 4G/3G expandable module; Nano-SIM card connector (push-push type)
DC Input :
12V DC socket (9V-15V wide voltage)
Dimensions :
145mm* 80mm
Thickness :
9mm
Operating Temperature :
0℃-70℃
Humidity :
0%-95% (non-condensing)
Android :
5.1(recommended), 6.0/7.1 (optional)
Linux :
Ubuntu 18.04, Debian 9, Buildroot+QT 2018.02 (optional)
Origin :
China
Description

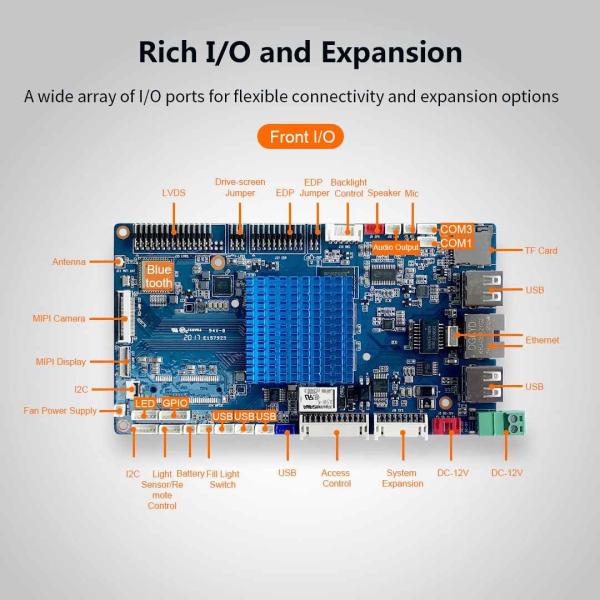

Multiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding support

Access Control Board Parameters:

Keyword:

 Access Control Board

CPU:

 Rockchip RK3288 quad-core Cortex-A17@1.6GHz

System Memory:

 2GB(or 4GB optional) LPDDR3

Storage:

 16GB eMMC (128GB Max)

MIPI-DSI:

 31-pin FPC MIPI-DSI interface | 1920x 1200 resolution

LVDS:

 30-pin Dual LVDS interface, up to 1080p resolution

EDP:

 Dual-EDP interface, up to 1080p resolution

Audio Line Out:

 Lef/Right channel output

Multiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding supportMultiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding supportMultiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding supportMultiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding supportMultiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding supportMultiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding supportMultiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding supportMultiple I/O and expansion Face Recognition Access Control Board for 1080p FHD decoding support
