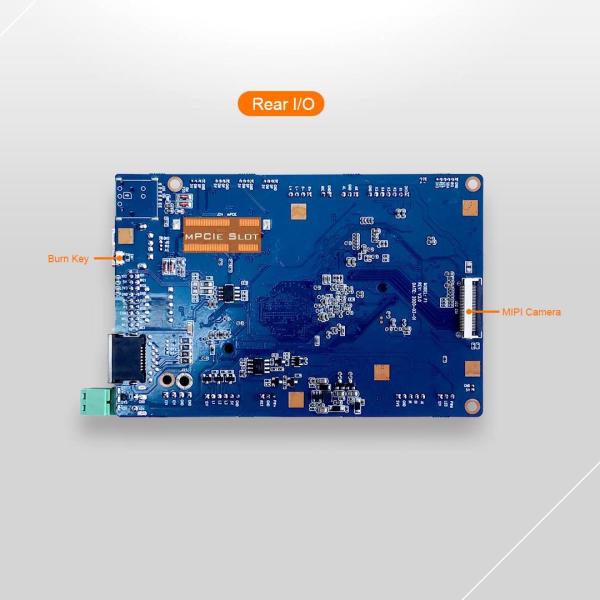

Smart Face Recognition Access Control F1-i Board WIFI Bluetooth Module
Smart Face Recognition Access Control F1-i Board WIFI Bluetooth Module
Smart Face Recognition Access Control F1-i Board WIFI Bluetooth Module
Smart Face Recognition Access Control F1-i Board WIFI Bluetooth Module
Smart Face Recognition Access Control F1-i Board WIFI Bluetooth Module
Smart Face Recognition Access Control F1-i Board WIFI Bluetooth Module
Specifications
Model Number :
F1-i Board
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Packaging Details :
100mm* 62mm* 25mm
Brand Name :
Shi Zun
CPU :
Rockchip PX30 quad-core Cortex-A35 @1.5GHz
GPU :
Mali Dvalin-2EE
RAM :
1GB (or2GB optional) LPDDR3
ROM :
16GB eMMC (128GB Max)
MIPI-DSI :
31-pin FPC connector, up to1920x 1200 resolution
Line Out :
Left/ Right channel output
Mic :
Single-ended input
Power Amplifier :
8 ohms, 10W dual audio power amplifier output
USB Host :
USB 2.0 ports (1 Ext.+6 Int.)
Camera :
1x 40-pin MIPIFPC+ DVP binocular camera interface
TF Card :
Push-push type TF card slot (128GB Max)
Wiegand :
Wiegand input port (2-wire)
Serial Port :
1xTTL/RS-232/RS-485, 1xTTL/RS-232, 1xTTL
RTC :
Low power RTC with a CR1220 battery
I2C :
1x 12C header and FPC connector
Backlight :
Backlight control interface that turns the backlight on/ off and adjusts the brightness level
GPIO :
5x GPIO ports
Access Switch :
SPDT signal relay interface
Light Sensor :
Ambient light sensor interface with analog and digital output
Button :
2 vertical buttons (bum and reset), 3 side buttons (volume+, volume-, PW)
Indicator Light :
SMD system running indicator light
Ethernet :
10/100Mbps adaptive Ethernet port
Wi-Fi :
802.11 b/ g/ n
Bluetooth :
BT V4.0
DC Input :
12V DC socket (9V-15V wide voltage)
Dimensions :
100mm* 62mm
Thickness :
25mm
Operating Environment :
0C~70℃
Humidity :
0%-95% (non-condensing)
Android :
8.1 (recommended)
Linux :
Ubuntu18.04, Debian 9, Buildroot+ QT 2018.02 (optional)
Description

Smart Face Recognition Access Control F1-i Board WIFI Bluetooth Module

F1-i Board Parameters:

Keyword:

 Access Control F1-i Board

CPU:

 Rockchip PX30 quad-core Cortex-A35 @1.5GHz

RAM:

 1GB (or 2GB optional) LPDDR3

ROM:

 16GB eMMC (128GB Max)

USB Host:

 USB 2.0 ports (1 Ext.+6 Int.)

Camera:

 1x 40-pin MIPIFPC+ DVP binocular camera interface

Android:

 8.1 (recommended)

Serial Port:

 1xTTL/RS-232/RS-485, 1xTTL/RS-232, 1xTTL

F1-i Board Description:

The F1i board is powered by Rockchip PX30 quad-core Cortex-A35 processor, with a maximum clock speed of 1.5GHz. The integrated Mali Dvalin-2EE GPU supports OpenGL ES3.2, Vulkan 1.0, and OpenCL 2.0, enabling a perfectly smooth hardware decoding of 1080p resolution videos. With a variety of onboard display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the security and access control sector.

Smart Face Recognition Access Control F1-i Board WIFI Bluetooth ModuleSmart Face Recognition Access Control F1-i Board WIFI Bluetooth ModuleSmart Face Recognition Access Control F1-i Board WIFI Bluetooth ModuleSmart Face Recognition Access Control F1-i Board WIFI Bluetooth ModuleSmart Face Recognition Access Control F1-i Board WIFI Bluetooth ModuleSmart Face Recognition Access Control F1-i Board WIFI Bluetooth ModuleSmart Face Recognition Access Control F1-i Board WIFI Bluetooth Module
