JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)
JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)
JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)
JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)
JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)
JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)
Specifications
Brand Name :
Shi Zun
Model Number :
JP-FM888
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
57.8mm * 20mm * 10.12mm（max）
Payment Terms :
T/T
Product Model :
FM888
Algorithm :
Supports dual-lens 3D liveness detection and deep learning dynamic visible light facial recognition
User Capacity (Facial Recognition) :
500 faces (default)
Facial Recognition Accuracy :
98.85%
False Acceptance Rate (FAR) :
0.0001%
Recognition Angle (Facial Recognition) :
Approximately ±20° (horizontal and vertical) (Supports multi-angle facial entry for expanded recognition range)
Recognition Distance (Facial Recognition) :
30–120 cm
Liveness Detection :
Supported
Liveness Detection False Acceptance Rate (LDAFAR) :
≤1%
Liveness Detection False Rejection Rate (LPFRR) :
≤1%
Video Intercom :
Supports USB audio and video transmission (UVC/UAC)
Communication Interface :
UART & USB
UART Baud Rate :
115200 (default)
Power Supply Voltage :
5.5V–9.0V
Operating Current :
320–330 mA (at 8V power supply)
Standby Current :
120–130 mA (when low-power detection is enabled)
Shutdown Current :
0 μA
Operating Temperature :
-20°C to 60°C
Storage Temperature :
-30°C to 70°C
Relative Humidity :
10%–93% (non-condensing)
Speaker and Microphone :
Supported
Description

JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)

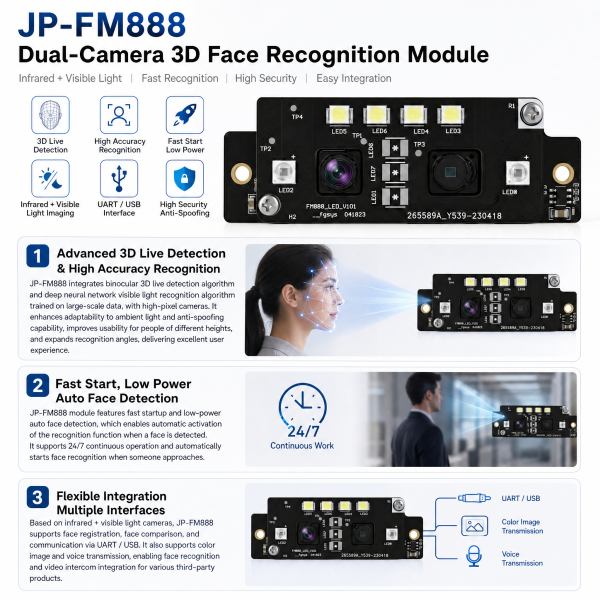

JP-FM888 Dual-Lens Camera Module Features:

  1. The JP-FM888 module integrates a dual-lens 3D liveness detection algorithm and a deep neural network dynamic visible light recognition algorithm, trained on extensive datasets. Equipped with high-resolution cameras, it enhances adaptability to various lighting conditions, strengthens anti-spoofing capabilities, improves usability for individuals of different heights, and expands recognition angles, significantly enhancing user experience.

  2. The FM888 module features fast startup, low-power automatic face detection, and automatic facial recognition activation. It supports 24/7 continuous operation, automatically initiating facial recognition when a person approaches.

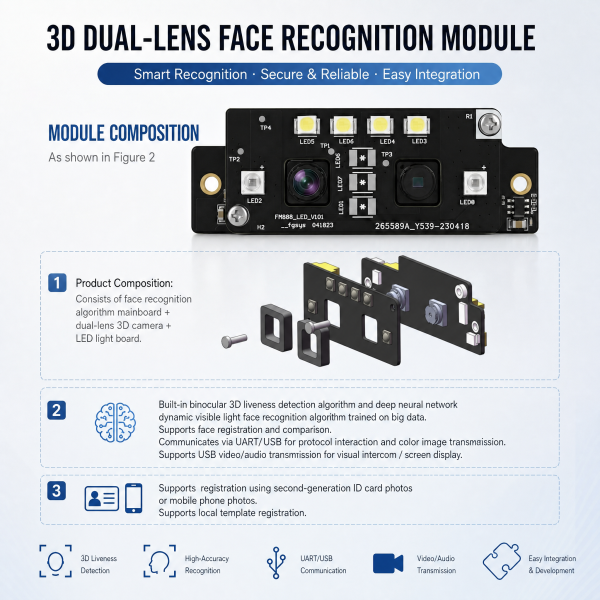

  3. Based on infrared and visible light cameras, the FM888 module performs facial registration and comparison, supporting communication protocol interaction via UART/USB. It enables color image and audio transmission for facial recognition across diverse products. This module is ideal for integrating facial recognition and video intercom functionalities into third-party products.

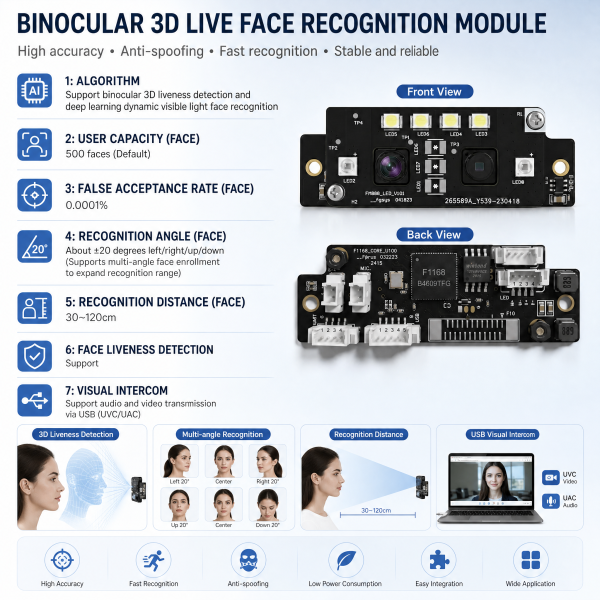

JP-FM888 Dual-Lens Camera Module Parameter:

Facial Recognition Algorithm: Supports dual-lens 3D liveness detection and deep learning dynamic visible light facial recognition
Number of Users (Facial Recognition): 500 faces (default)
Facial Recognition Accuracy: 98.85%
False Acceptance Rate (Facial Recognition): 0.0001%
Recognition Angle (Facial Recognition): Approximately ±20° (horizontal and vertical)
Recognition Distance (Facial Recognition): 30-120 cm
Video Intercom: Supports USB audio and video transmission (UVC/UAC)
Communication Interface: UART & USB
UART Baud Rate: 115200 (default)
Power Supply Voltage: 5.5V–9.0V

JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)

JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)JP-FM888 Infrared + Visible Light Dual-Lens Facial Recognition Algorithm Module UART Baud Rate 115200 (default)
