Specifications
Brand Name :
Shi Zun
Model Number :
JP1816
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
8 inches
Payment Terms :
T/T
Operating System :
Optional RK 3568/3288, Quad-Core CPU, 2.0/1.8 GHz, Android 11/7.1 versions
Configuration :
2GB RAM + 16GB storage
LCD Screen Size :
8 inches
Screen Resolution :
1280 × 800
Viewing Angle :
RK3288. Quad-core 1.8CHZ, Android version 7.1
Viewing angle :
R/L 178° full viewing angle
Brightness :
500 cd
Camera :
Dual-lens 2MP HD, wide dynamic range, supports liveness detection, shooting distance 0.4-2 meters
Tri-Color Fill Light :
Green, red, and white
Speaker :
8Ω, 3W
Working Parameters :
Voltage: 12V, Current: 3A Operating Temperature: -20°C to 70°C Humidity: 5% to 90% RH
External Interfaces :
1 USB/OTG, 1 RJ45, 1 relay output, 1 power port, 1 Wiegand port, 1 RS232/RS485
Second-Generation ID Card Module :
Reading time <1 second, reading distance: 0-3 cm
Surface Material :
Tempered glass front panel
Body Craftsmanship :
CNC precision-machined aluminum alloy with oxidation finish
Installation Method :
Desktop with adjustable screen angle
Color :
Black + Silver
Waterproof Rating :
IP54-level waterproof
Description

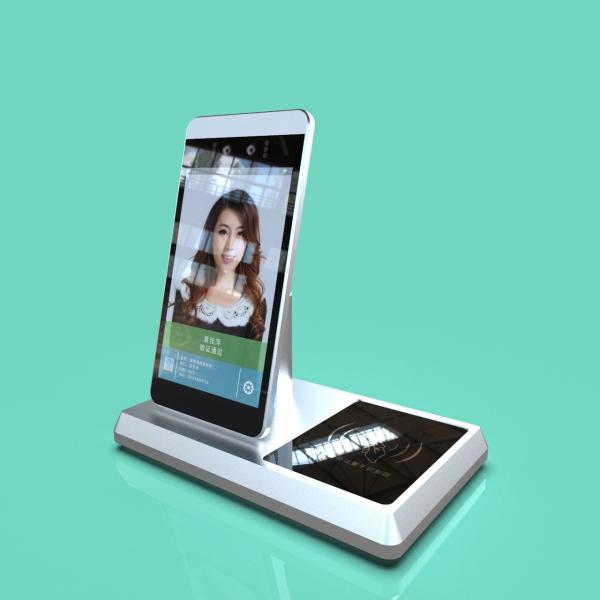

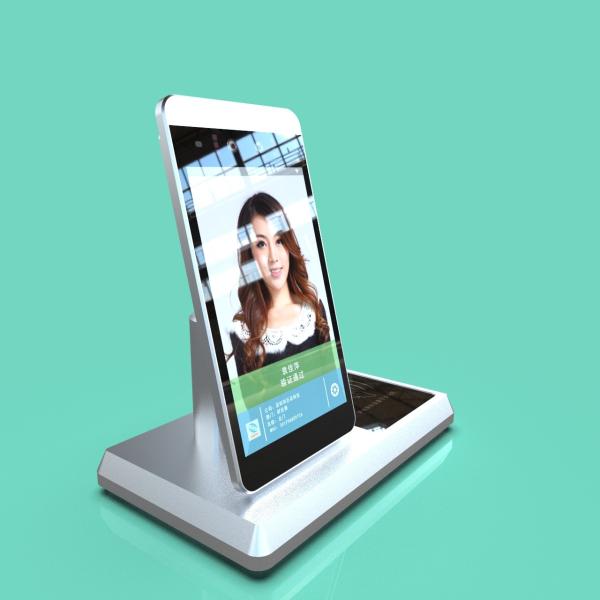

JP1816 Desktop ID Verification and Visitor Management Terminal 8-inch Android-based with anti-spoofing capabilities

Product Overview:
The 8-inch Android-based ID Verification Terminal is an intelligent device that integrates facial recognition technology with ID card information reading capabilities. Built on the Android operating system, it provides an open platform with support for secondary development, catering to the ID verification needs of users across various industries.

Technical Features:

  1. High-Definition Display:
    Equipped with an 8-inch HD capacitive touchscreen supporting 10-point touch for an intuitive and user-friendly operation experience.
  2. Dual-Lens Liveness Detection:
    Features integrated dual-lens cameras with anti-spoofing capabilities, effectively preventing fraud through photos, videos, or other non-live face information.
  3. High-Performance Processor:
    Powered by a high-performance industrial-grade Android processor, ensuring smooth operation and quick response.
  4. Large Storage Capacity:
    Comes with 2GB DDR3 memory and 16GB storage space, capable of handling large volumes of data storage.
  5. Versatile Verification Modes:
    Supports fingerprint recognition, 1:1 facial verification, and 1:N facial comparison, offering flexible identity verification solutions.
  6. Open Android System:
    Operates on Android 5.1.1, providing various SDKs for easy secondary development by customers.

Application Advantages:

  1. High-Speed Recognition:
    Employs advanced facial recognition algorithms to enable fast and accurate face recognition, significantly improving efficiency.
  2. Wide Application Scenarios:
    Suitable for public venues such as airports, train stations, subway stations, and smart access control systems, enhancing community safety.
  3. High Security:
    Leverages biometric technology to mitigate risks associated with password or fingerprint leakage, ensuring greater privacy protection.
  4. High Recognition Accuracy:
    Utilizes advanced facial recognition algorithms for precise extraction and matching of facial features, ensuring high recognition accuracy.

Applications:

  • Hotel personnel identity verification systems
  • Newborn medical certificate issuance ID verification systems
  • Police ID card applications, household registration migration, and population management

This 8-inch Android-based ID Verification Terminal offers a convenient, secure, and efficient identity verification solution with its high-speed recognition, extensive application scenarios, robust security, and precise accuracy.

Operating System: Optional RK 3568/3288, Quad-Core CPU, 2.0/1.8 GHz, Android 11/7.1 versions Configuration: 2GB RAM + 16GB storage
LCD Screen Size: 8 inches Screen Resolution: 1280 × 800
Viewing Angle: R/L 178° full viewing angle Brightness: 500 cd
Camera: Dual-lens 2MP HD, wide dynamic range, supports liveness detection, shooting distance 0.4-2 meters Tri-Color Fill Light: Green, red, and white
Speaker: 8Ω, 3W Working Parameters: Voltage: 12V, Current: 3A
Operating Temperature: -20°C to 70°C
Humidity: 5% to 90% RH
External Interfaces: 1 USB/OTG, 1 RJ45, 1 relay output, 1 power port, 1 Wiegand port, 1 RS232/RS485 Second-Generation ID Card Module: Reading time <1 second, reading distance: 0-3 cm
Surface Material: Tempered glass front panel Waterproof Rating: IP54-level waterproof
