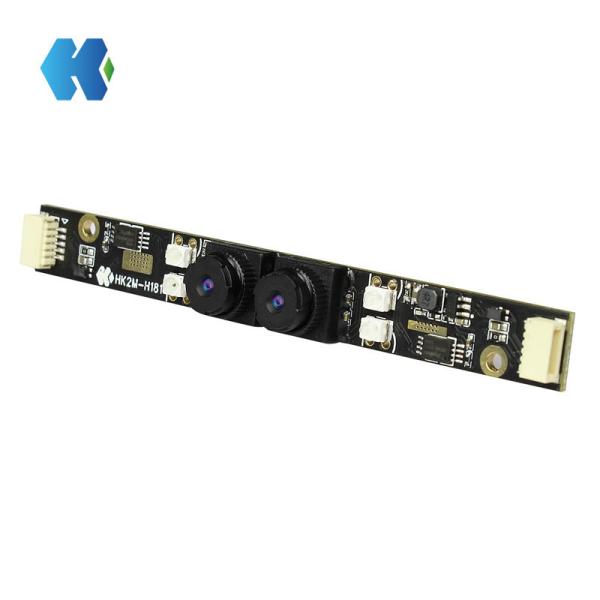

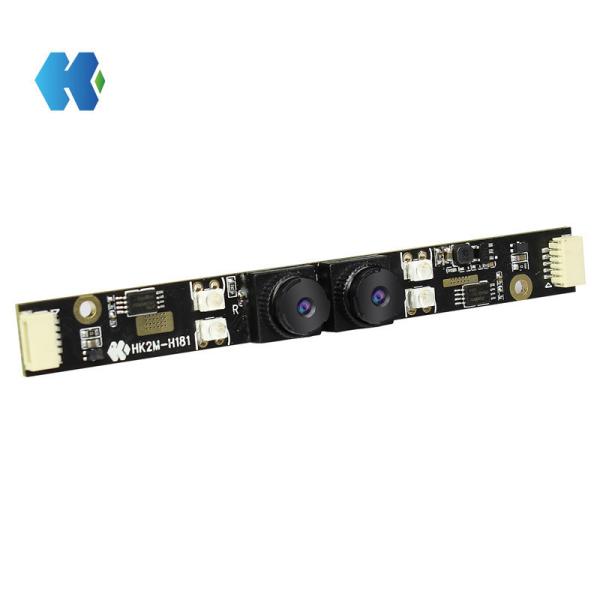

HK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera Module
HK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera Module
HK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera Module
HK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera Module
HK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera Module
HK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera Module
Specifications
Brand Name :
Shi Zun
Model Number :
HK2M-H181
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
90mmx 10mmx 9.8mm
Module Size :
90mmx 10mmx 9.8mm
Temperature (Operation) :
-20°C to +70°C
Temperature (Stable lmage) :
0℃ to 50°C
Assembly technique :
SMT
Object distance :
15cm-80cm
PCB printing ink :
Black
USB power supply voltage :
5V±5%
Interface/interface speed :
USB 2.0 (2* 5pin 1.0mm)/ 480mb/s
Power :
USB bus power
Operating system request :
Win XP, Win 7 or Vista and android
Package :
CSP
Sensor Type :
RGB (COMS 1/2.7")/ IR(COMS 1/2.7")
Resolution and frame rate :
MJPG: 640*480(30fps), 800*600 (30fps), 1280*720(30fps), 1920*1080(30fps)
YUV :
640*480(30fps), 800*600 (20fps), 1280*720(10fps), 1920*1080(5fps)
Pixel Size :
3.0μmx 3.0μm
SNR max :
TBD dB
Max Dynamic range :
TBD dB
Minimum illumination :
TBD
Lens Construction :
4P+IR
F/No :
2.0
EFL :
4.3mm± 5%
FOV :
73°
IR Filter :
650±15nm/ 850±15nm
Support format :
YUY2/MJPG
Power Consumption :
IR LED: Max 0.2W
LED IR-850 :
≤60° 1.5m
Lens view :
M8/ D= 73°(1=2.0mm)
Effective pixels :
1920*1080
Description

HK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera Module

HK2M-H181 Binocular Wide Dynamic Range Camera Module Features:

  1. Dual USB 2.0 Interfaces
  2. Suitable for Face Feature Detection
  3. Plug and Play
  4. Dual 1080P High-Definition Cameras
  5. Frame Rate Up to 30 FPS, CE Ensures Maximum Image Clarity and Detail
  6. Suitable for Face Recognition, Robotics, Artificial Intelligence, Medical Equipment, Medical Endoscopy, Beauty Salons, Dental/Oral, Hair Follicle/Ear Endoscopy Cameras, Video Conferencing, Electronic Microscopes/Electronic Eyepiece Cameras, Industrial High-Definition Testing, Industrial Equipment, High-Speed Scanners, USB High-Definition, UVC, Android Cameras, VR, In-Car Cameras, QR Code Scanning, Document Scanning, ATMs, Doorbells/Peep Holes, Dual-Eye Cameras, Wide Dynamic Range, Starlight Night Vision, Laptop/Tablet/Advertising Machine Cameras
  7. 1/2.7 Large Size SENSOR
  8. Backlight Compensation

HK2M-H181 Binocular Wide Dynamic Range Camera Module Parameter:

Connect the interface: USB 2.0 (2* 5pin 1.0mm)/ 480mb/s
Interface speed: 480mb/s
Maximum resolution and frame rate: 1920*1080(30fps)
Other optional resolution ratio: 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps),
Support format: YUV/ MJPG
Max Dynamic range: TBD dB
F/No: 2.0
EFL: 4.3mm± 5%
FOV: 73°
Lens Construction: 4P+IR
Power Consumption: IR LED: Max 0.2W
Operating systemrequest: Win XP, Win 7 or Vista and android

HK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera ModuleHK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera ModuleHK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera ModuleHK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera ModuleHK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera ModuleHK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera ModuleHK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera ModuleHK2M-H181 High Definition 1080P USB Driver-Free Binocular Wide Dynamic Range Camera Module
