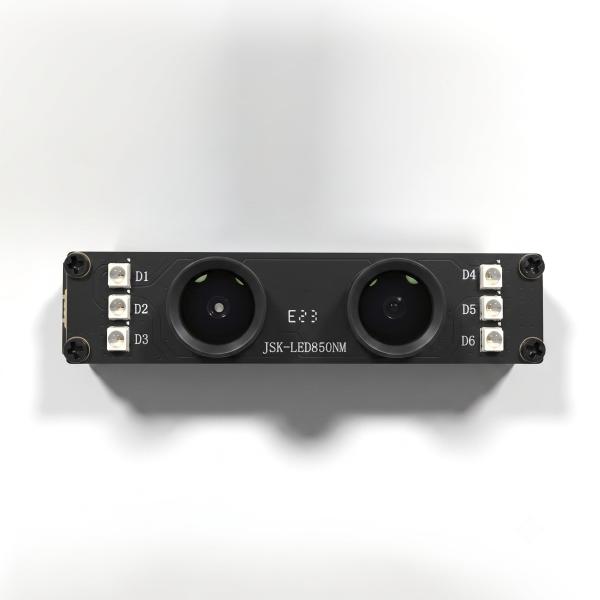

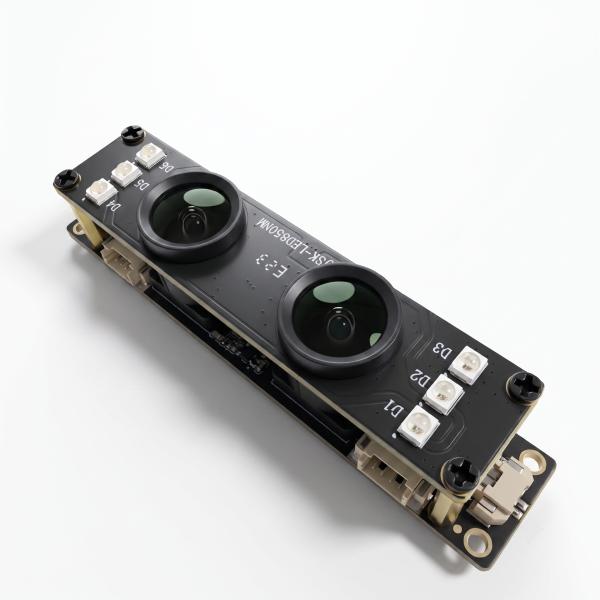

HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module
HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module
HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module
HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module
HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module
HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module
HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module
HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module
Specifications
Brand Name :
Shi Zun
Model Number :
HK2M-H172.3
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
92mmx 18mmx 18.4mm
Keywords :
Dual-Eye Camera Module
Photosensitive chip :
RGB CMOS 1/2.7"/ IR CMOS 1/2.7”
Pixel Size :
3.0μm x3.0μm
SNR max :
41 dB/ TBD dB
Max Dynamicrange :
105 dB/ TBD dB
Minimum illumination :
0.1Lux at F12
F/No :
2.4
EFL :
2.9mm
FOV :
95°
IR :
650±10nm/ 850±10nm
Lens Construction :
2G4P+IR
Maximum resolution and frame rate :
1920* 1080(30ps)
Other optional resolution ratio :
640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps)
Support format :
YUV / MJPG
USB power supply voltage :
5V±5%
Connect the interface :
2* USB-5pin-1.0mm
Interface speed :
480mb/s
Operating systemrequest :
WinXP, Win7, Linux or Vista and android4.1
Power Consumption :
Regular work: 2W
storage temperature :
0°C to 50°C
Working temperature :
-10°C to+60°
structure size :
92mmx 18mmx 18.4mm
Description

HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module

HK2M-H172.3 Dual-Eye Camera Module Features:

  1. Dual USB 2.0 Interfaces
  2. Suitable for Face Feature Detection
  3. Plug and Play
  4. Dual 1080P High-Definition Cameras
  5. Frame Rate Up to 30 FPS, CE Ensures Maximum Image Clarity and Detail
  6. Suitable for Various Industrial Control, Intelligent Self-Service Terminals, Face Recognition Access Control, Security Equipment, and Other Scenarios
  7. Large Aperture/Long Depth of Field, Focal Length Options Available
  8. Wide Dynamic Color + Infrared Dual Imaging
  9. Stable Image
  10. Backlight Compensation
  11. USB Data Connection Interface

HK2M-H172.3 Dual-Eye Camera Module Parameter:

Connect the interface: 2* USB-5pin-1.0mm
Interface speed: 480mb/s
Maximum resolution and frame rate: 1920* 1080(30ps)
Other optional resolution ratio: 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps)
Support format: YUV/ MJPG
Max Dynamic range: 105 dB/ TBD dB
F/No: 2.4
EFL: 2.5mm
FOV: 95°
Lens Construction: 2G4P+IR
Power Consumption: Regular work: 2W
Operating systemrequest: WinXP, Win7, Linux or Vista and android4.1

HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera ModuleHK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera ModuleHK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera ModuleHK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera ModuleHK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera ModuleHK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module
