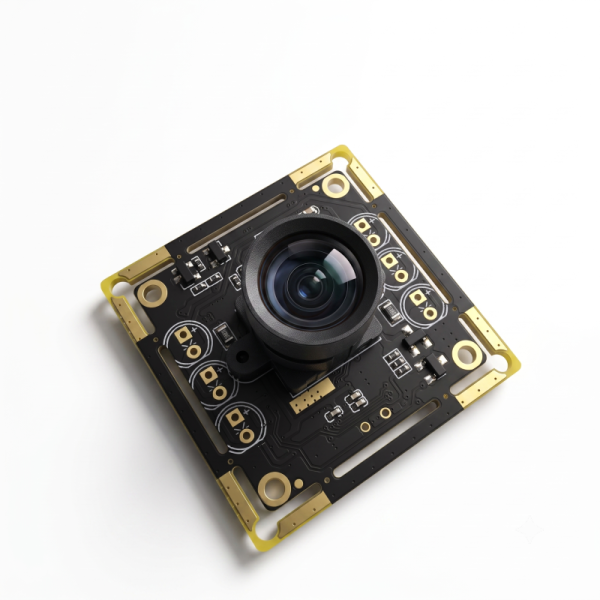

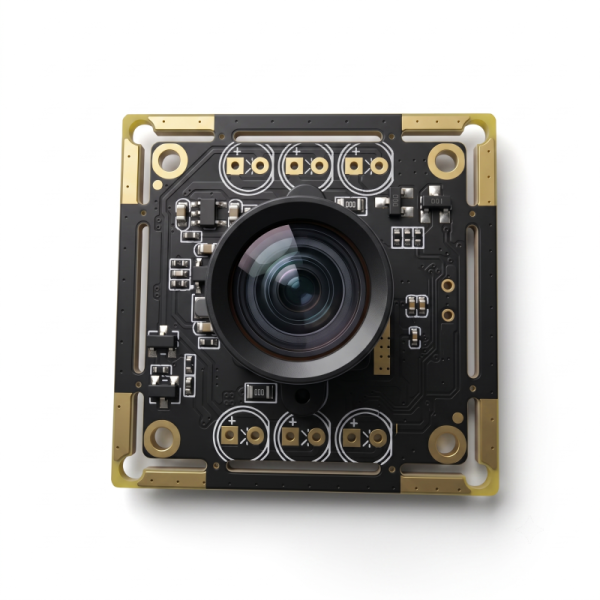

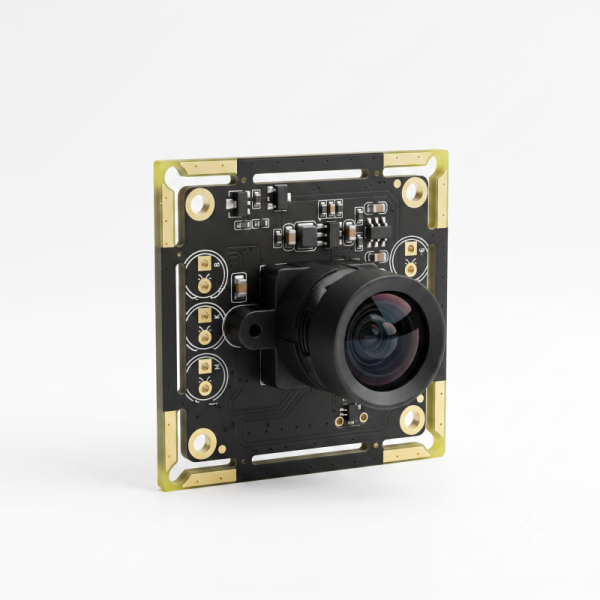

H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module
Specifications
Brand Name :
Shi Zun
Model Number :
H215-TYPE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
38mmx 38mmx 25.4mm
Keywords :
YUV Industrial Vision Camera Module
Photosensitive chip :
CMOS 1/2.5”
Pixel Size :
2.2μm x 2.2μm
SNR max :
39 dB
Max Dynamicrange :
110 dB
Minimum illumination :
0.1Lux at F12
F/No :
1.8
EFL :
2.26mm
FOV :
120°
IR :
650±10nm
Lens Construction :
6G+IR
Maximum resolution and frame rate :
2592*1944(30ps)
Other optional resolution ratio :
640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1024* 768(30fps), 1920* 1080(30fps), 1600* 1200(30ps), 2048* 1536(30fps), 2560* 1440(30ps)
Support format :
YUV / MJPG
USB power supply voltage :
5V±5%
Connect the interface :
1* Type-C
Interface speed :
500MB/s
Operating systemrequest :
WinXP, Win7, Linux or Vista and android4.1
Power Consumption :
Regular work: 0.9W
storage temperature :
0°C to 50°C
Working temperature :
-10°C to+70°
structure size :
38mmx 38mmx 25.4mm
Description

H215-TYPE 5-Megapixel Wide Dynamic USB 3.0 TYPE-C Interface YUV Industrial Vision Camera Module

H215-TYPE YUV Industrial Vision Camera Module Features:

  1. 5M Wide Dynamic Camera
  2. Type-C 1080p High Definition
  3. 5M Wide Dynamic Camera (Note: This feature is repeated, so it's only listed once)
  4. USB 2.0 Million High-Definition Pixels
  5. Can be equipped with MIC, supports audio recording, video recording, can be equipped with photodiodes, infrared illumination
  6. Suitable for access control, turnstiles, ID verification, advertising machines, video conferencing, face recognition, self-service terminal devices, Android devices, and other scenarios
  7. Large aperture, long focal length depth is optional
  8. Industrial-grade main control chip
  9. Ultra-clear image with ultra-high resolution
  10. Backlight compensation
  11. TYPE-C connection data interface
  12. Supports clip and穿孔 (Note: "穿孔" seems to be a typo or incomplete, it might be "perforated" or "piercing" depending on the context, but it's left as is for accuracy) 13: High Definition or Clearer Imaging

H215-TYPE YUV Industrial Vision Camera Module Parameter:

Connect the interface: 1* Type-C
Interface speed: 500MB/s
Maximum resolution and frame rate: 2592*1944(30ps)
Other optional resolution ratio: 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1024* 768(30fps), 1920* 1080(30fps), 1600* 1200(30ps), 2048* 1536(30fps), 2560* 1440(30ps)
Support format: YUV / MJPG
Max Dynamic range: 110 dB
Minimum illumination: 0.1Lux at F12
Power Consumption: Regular work: 0.9W
Photosensitive chip: CMOS 1/2.5”
Pixel Size: 2.2μm x 2.2μm
Operating systemrequest: WinXP, Win7, Linux or Vista and android4.1
